4. Component replacement
4.2.30 Sheet-document / Paper-weight-Assy / Spring-PW-ADF

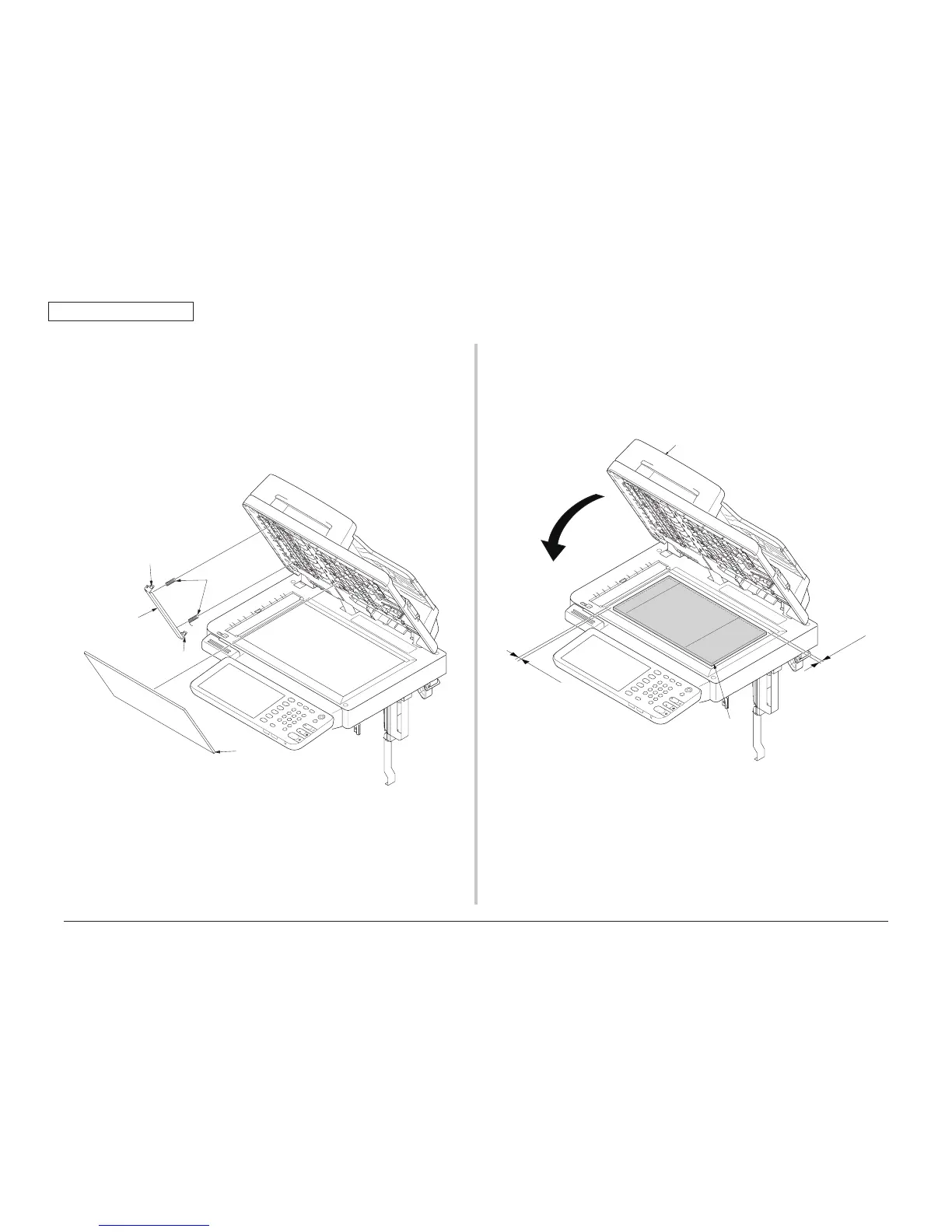

(1) Open the ADF-unit.
(2) Remove the sheet-document
①
.
(3) Remove two claws to remove the paper-weight-assy
②
and two spring-PW-ADF
③
.
<Attention of affix the sheet-document>
(1) Degrease the affix area of ADF-unit.
(2) Remove the peeling-off sheet.
(3) Set the sheet-document
①
(see the figure below).
(4) Close the ADF-unit.
Claw
Claw
①
②
③
ADF-unit
0
.
5
m
m
0
.
5
m
m
①
