Oki MC760 User Manual

45376001TH Rev.1
20 /
Oki Data CONFIDENTIAL
1. Configuration
1.5.3 Telephone Line Interface Specification
1.5.3.1 Outline of telephone Line Interface
The machine will reliably communicate with distant stations over voice-level telephone
line.

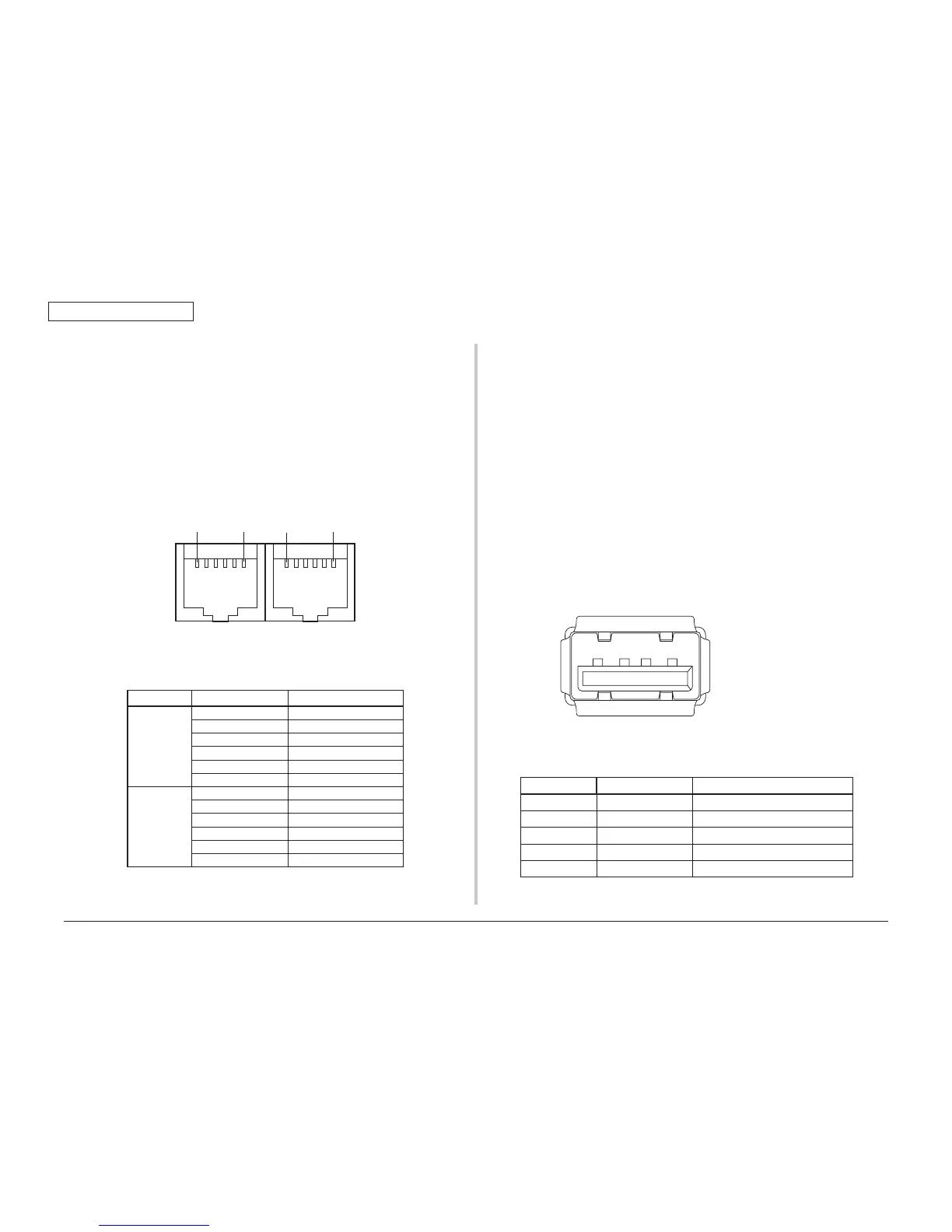

1.5.3.2 Telephone Line Interface Connector and Cable
Connector Type : RJ-11
Cable Type : TEL Cable (With RJ-11 plug)
Connector contact arrengement
1.5.3.3 Telephone Line Interface signal
Contact No. Functions
TEL A1 Unspecified
A2 Unspecified
A3 TCP
A4 TCP
A5 Unspecified
A6 Unspecified
LINE B1 Unspecified
B2 Unspecified
B3 TCP
B4 TCP
B5 Unspecified
B6 Unspecified
TCP : Terminal Connection Point
A1 A6
B
1
B6
TEL
LINE
1.5.4 USB Host Interface
1.5.4.1 Outline of USB Host Interface
(1) Basic Specification
USB
(2) Transmission Mode
Hi Speed (480Mbps±0.05% max.)
(3) Supply Power
Max. 500mA
(4) Connection devices
USB memory
1.5.4.2 USB Host Interface Connector
USB A plug connector
Connector pin arrangement
1.5.4.3 USB Host Interface Signal
Name of Signal Function
1 Vbus Power Supply (+5V)(red)
2 D - Data transmission (white)
3 D + Data transmission (green)
4 GND Single ground (black)
Shell Shield
4321
