45376001TH Rev.1
76 /
Oki Data CONFIDENTIAL

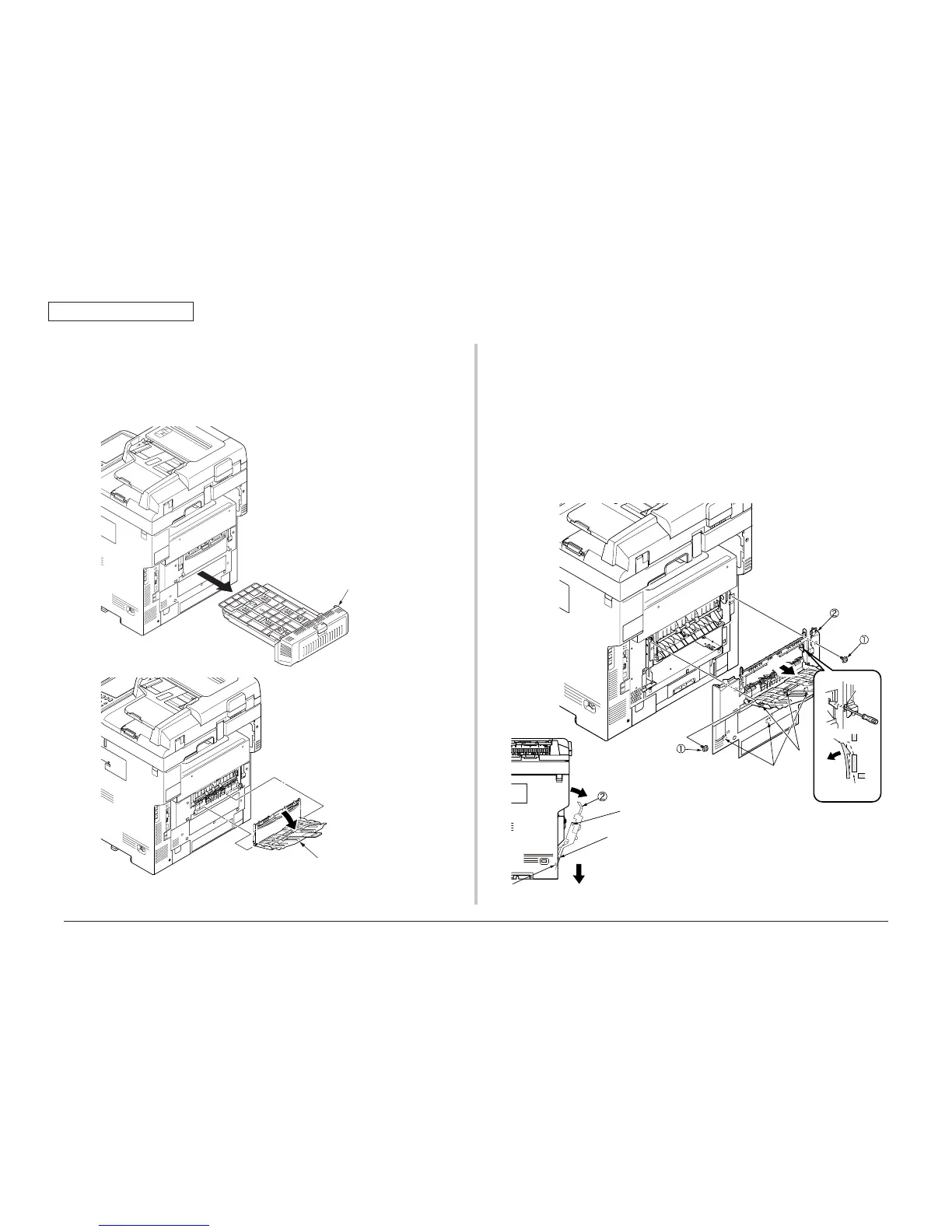

4. Component replacement
4.2.6 Faceup tray
(1) Draw out the Duplex unit
①
.
(2) Open the faceup tray
②
in the direction of arrow, and unlock the left and right
pins while bending. Remove the faceup tray
②
.
②
①
4.2.7 Rear cover
(1) Open the faceup tray.
(2) Remove the two screws (silver, No:42920406)
①
.
(3) As shown in fig 2, insert the flat-blade screwdriver into the hole A to disengage
the claw A (2 place).
(4) Disengage the claw B (2 places) and pull the upper side of the rear cover
②
in
the direction of A.
(5) As shown in fig 3, push the lower side of the rear cover
②
in the direction of B,
and disengage the claw C (3 places) to remove the rear cover
②
.
Claw A
Figure (1)
Claw C
A
Figure (2)
Claw C
Claw B
Claw A
Hole A
Hole A
Figure (3)
Claw B
A
B
