Oki MC760 User Manual

45376001TH Rev.1
96 /
Oki Data CONFIDENTIAL
4. Component replacement

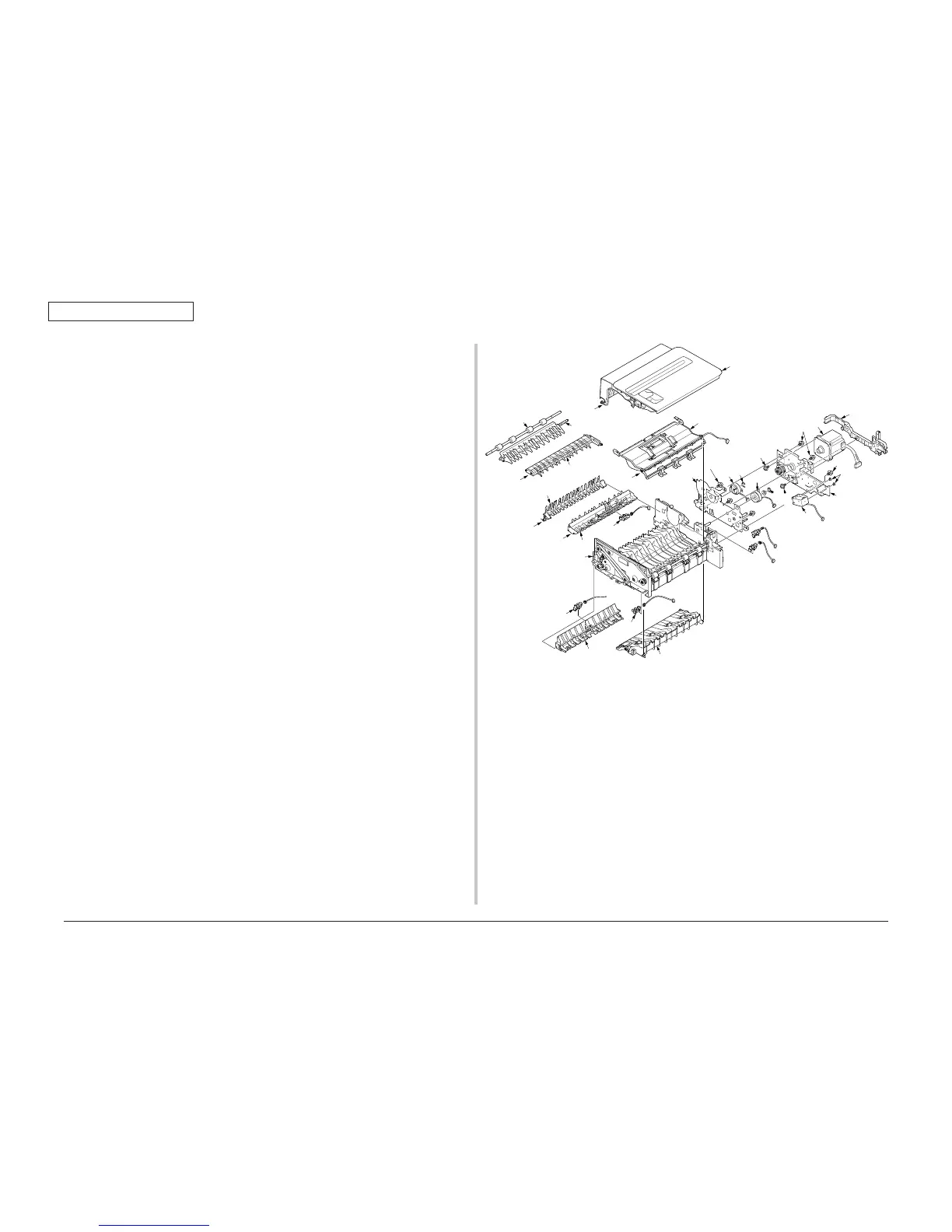

4.2.33 Guide-Retard / Roller / Motor / Clutch / Solenoid/
Photo-sensor
(1) Pull and remove Guide-Cable-ADF
①
.
(2) Remove the E-type retaining ring
②
and remove the clutch
③
.
(3) Remove the three screws (black, No:42932706)
④
and remove the plate-motor-
ADF
⑤
.
(4) Remove the two screws (silver, No:42920406)
⑥
and remove the motor-pulse-
belt
⑦
from
⑤
.
(5) Remove the E-type retaining ring
⑧
and remove the clutch
⑨
.
(6) Open the Cover-Assy-Top-ADF
⑩
,and warp around a post to Arrow A to
remove Cover-Assy-Top-ADF
⑩
.
(7) Disconnect a cable, and warp around post to Arrow B to remove the Guide-
Retard-A
⑪
.
(8) Remove the Guide Separator Hop
⑫
.
(9) Remove the three screws (black, No:42932706)
⑬
and Plate-Drive
⑭
.
(10) Remove the Feed roller
⑮
.
(11) Remove two screws(silver, No:42920406)
⑯
and remove the solenoid
⑰
.
(12) Warp around post to Arrow C to remove Guide-B
⑱
.
(13)Warp around post to Arrow E to remove Guide-Separator
⑲
.
(14)Disconnect all cables and warp around post to Arrow D to remove the Guide-
Assy-C
⑳
and remove
󰼼
.
(15)Warp around post to Arrow F to remove the Guide-Assy-D
󰽇
and remove the
photo-sensor
󰽈
.
(16)Warp around post to Arrow G to remove the Guide-Retard and the Guide-Exit-
Lower
󰽉
and remove photo-sensor
󰽊
.
⑩
⑪
Arrow A
⑦
⑰
⑨
③
⑧
㉔
㉕
㉒
㉑
㉓
⑲
⑳
⑱
①
③
⑥
⑥
②
④
⑬
×3
⑭
⑮
④
⑤
⑯
Arrow B
Arrow D
Arrow E
Arrow C
⑫
