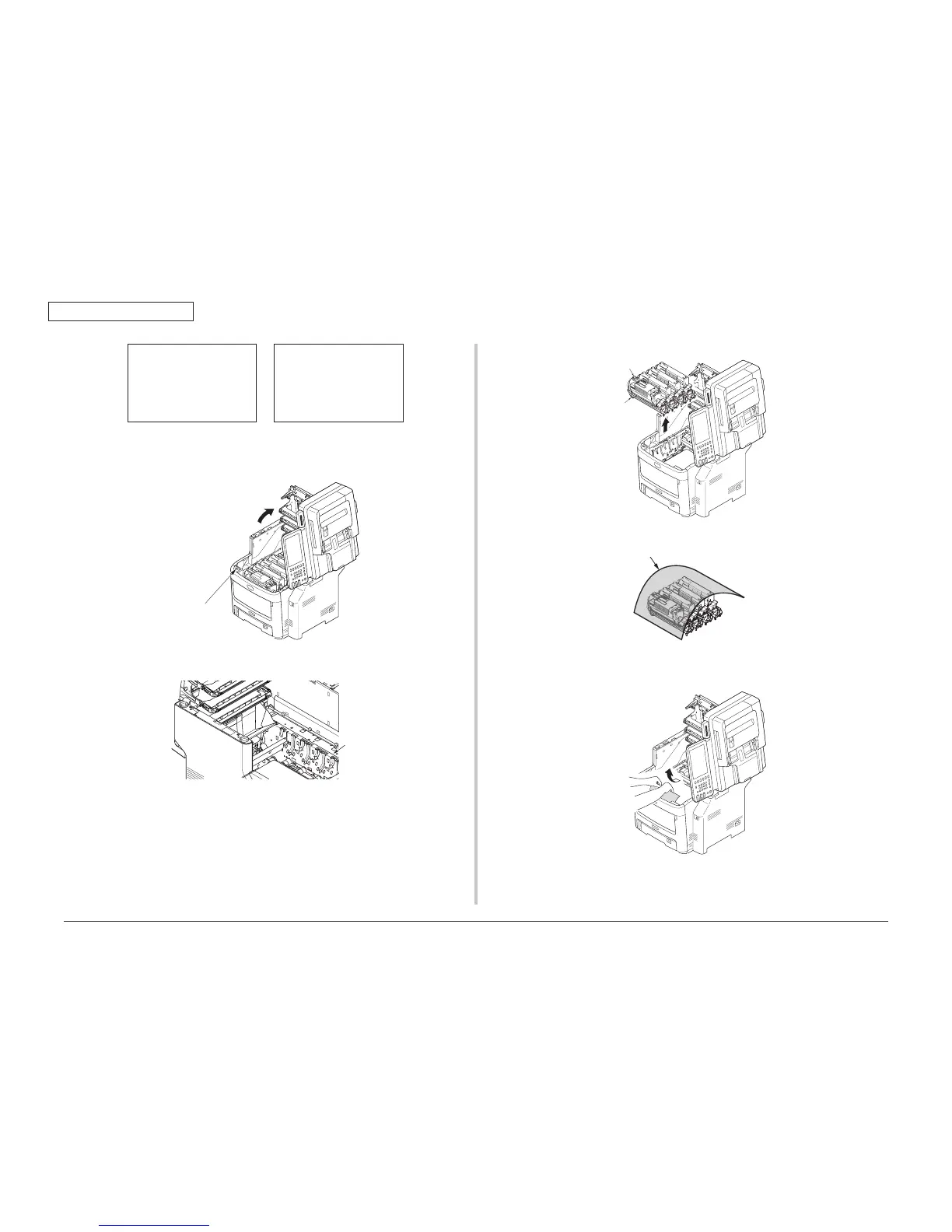

7. Troubleshooting and repair procedure
Open Cover
Paper Remain
Top Cover
Open Cover
Paper Jam
Top Cover
When the above messages are displayed.
(1) Open the top cover.
(2) Touch the screw or plate with a hand to discharge static.
(3) Uninstall the four image drum cartridges and put them on a flat table.
(4) Cover the uninstalled image drum cartridges with black paper.
(5) (a) If you see the top edge of paper
Pull up the jammed paper slowly.
OPEN buttom
Plate
Starter toner cartridge
Image drum
cartridge
