45376001TH Rev.1
29 /
Oki Data CONFIDENTIAL
2. Operating instructions

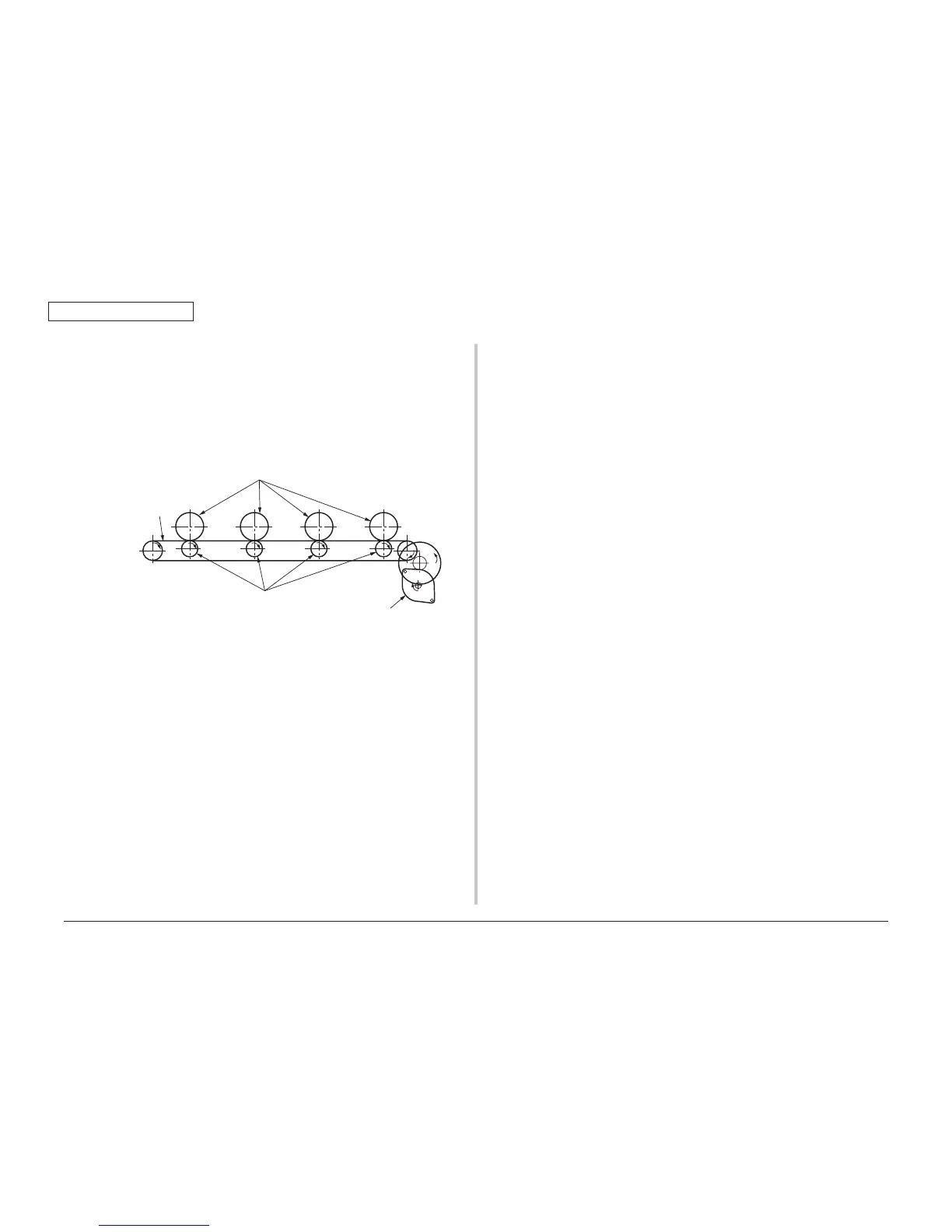

(3) Transport belt
1. When the transport belt motor is rotated in the direction of the arrow, the
transport belt is driven. As for the belt unit, a transfer roller is set over under
each color drum. The belt is caught and installed between the transfer roller
and drum.
As for the transport belt and transfer roller, if the specified voltage is
impressed, the paper on the transport belt would be delivered to the fuser
unit while transcribing the toner image on each color drum.
Transport belt
Transfer roller
Transport belt motor
To Next Page
