3. Set up

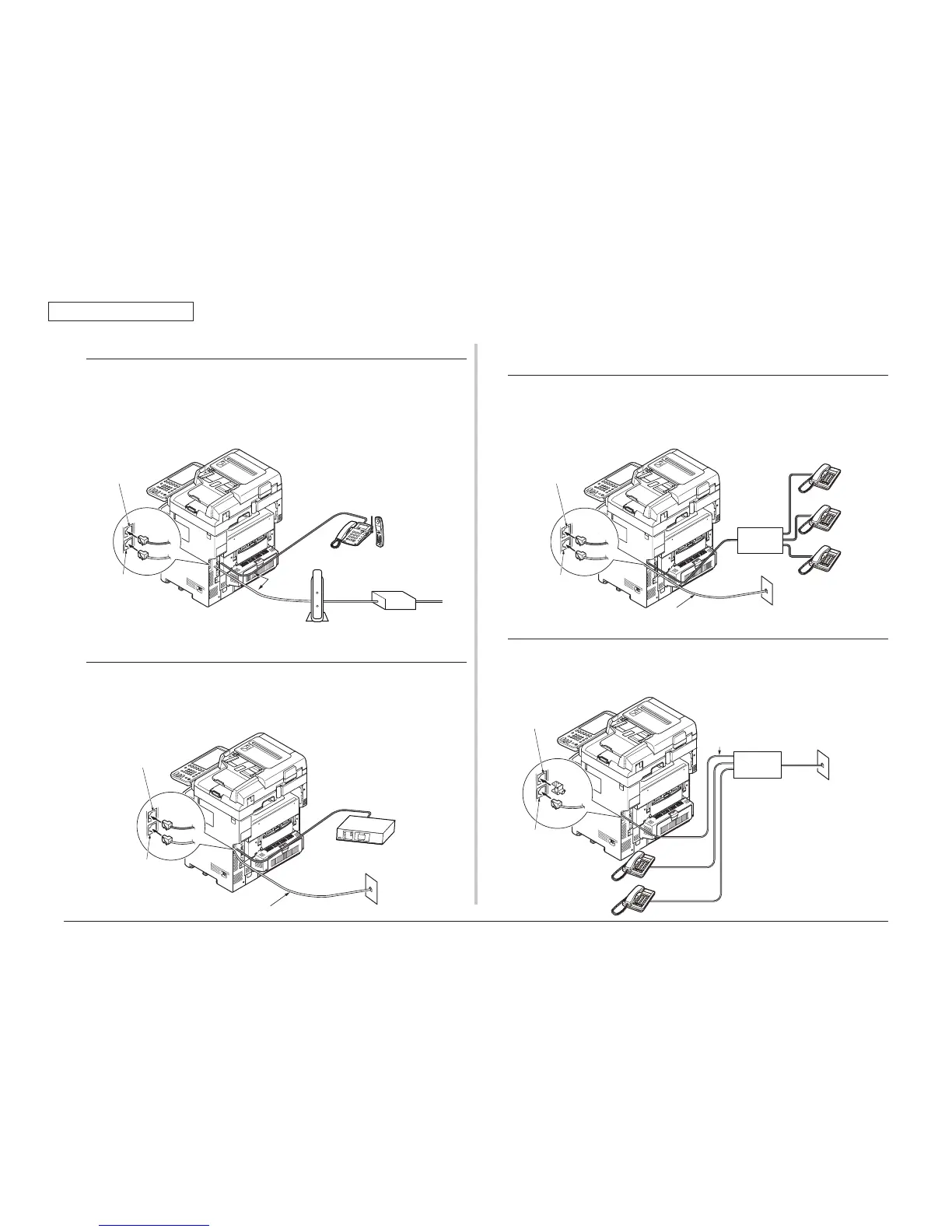

To connect to the Optical fiber (IP telephone)
Note!
To connect the MFP to CS tuner or digital TV
Connect the telephone cable that is connected to the public telephone line (analog)
Connect the telephone cable that is connected to the CS tuner or digital TV to the
To connect to the telephone switch board (PBX), home telephone, or
business phone
Connect the telephone cable that is connected to the public telephone line (analog)
To connect to the private phone system
TEL connector
LAN
cable
le
Line terminator
machine.
Telephone
line cable
Cordless phone and
other enal telephone machine
Telephone line cable
Public telephone line
(analog)
CS tuner or
digital TV
TEL connector
Telephone line cable
Public telephone line
(analog)
other control
TEL connector
Public telephone line
(analog)
other control
Telephone line cable
TEL connector
