Cleaning the machine
12-9
Cleaning the Media Feed Rollers for
the ADF
1

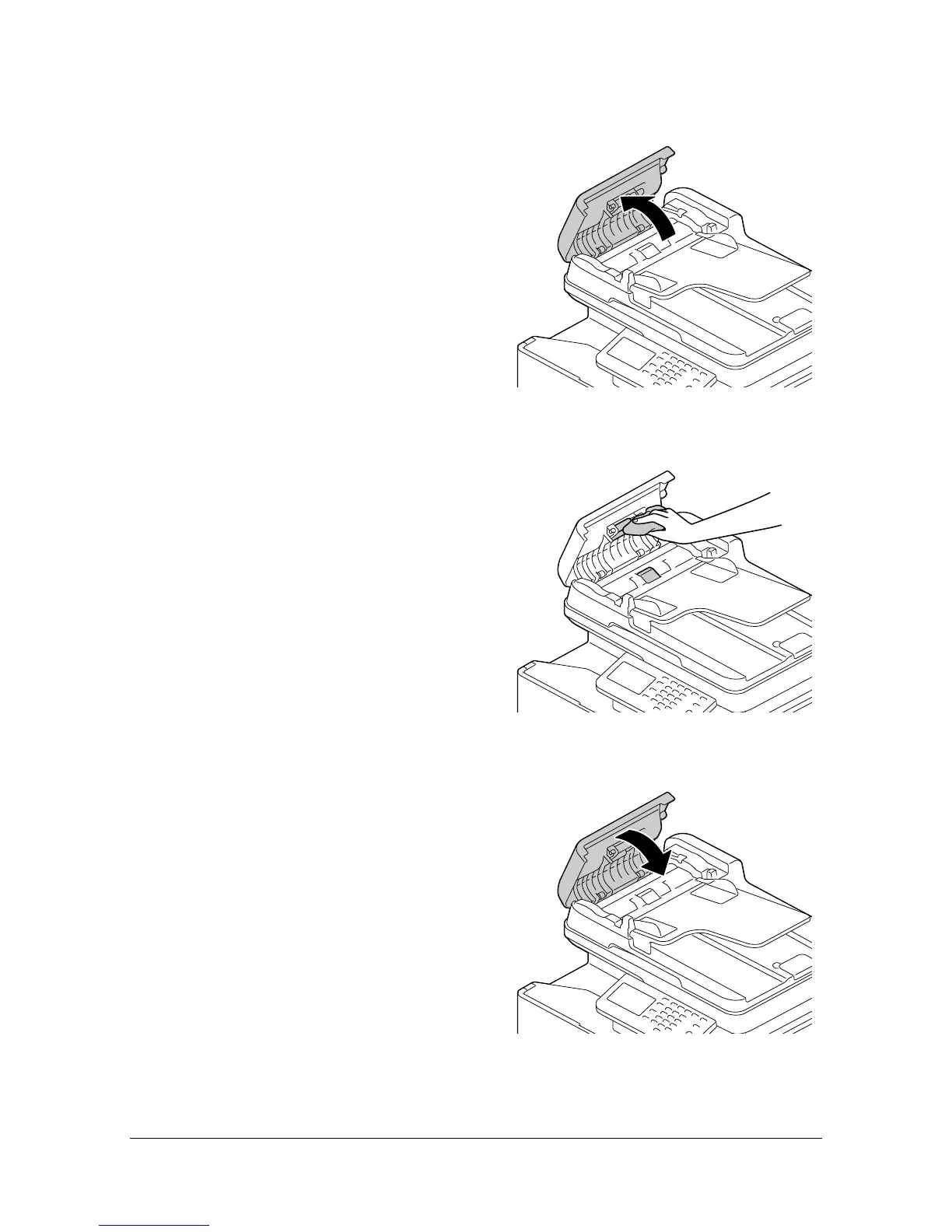

Open the ADF feed
cover
.
2
Clean the media feed rolle
rs by
wiping them with a soft, dry
cloth.
3
Close the AD
F feed cover
.
