Understanding the Media Path 13-5
Understanding the Media Path

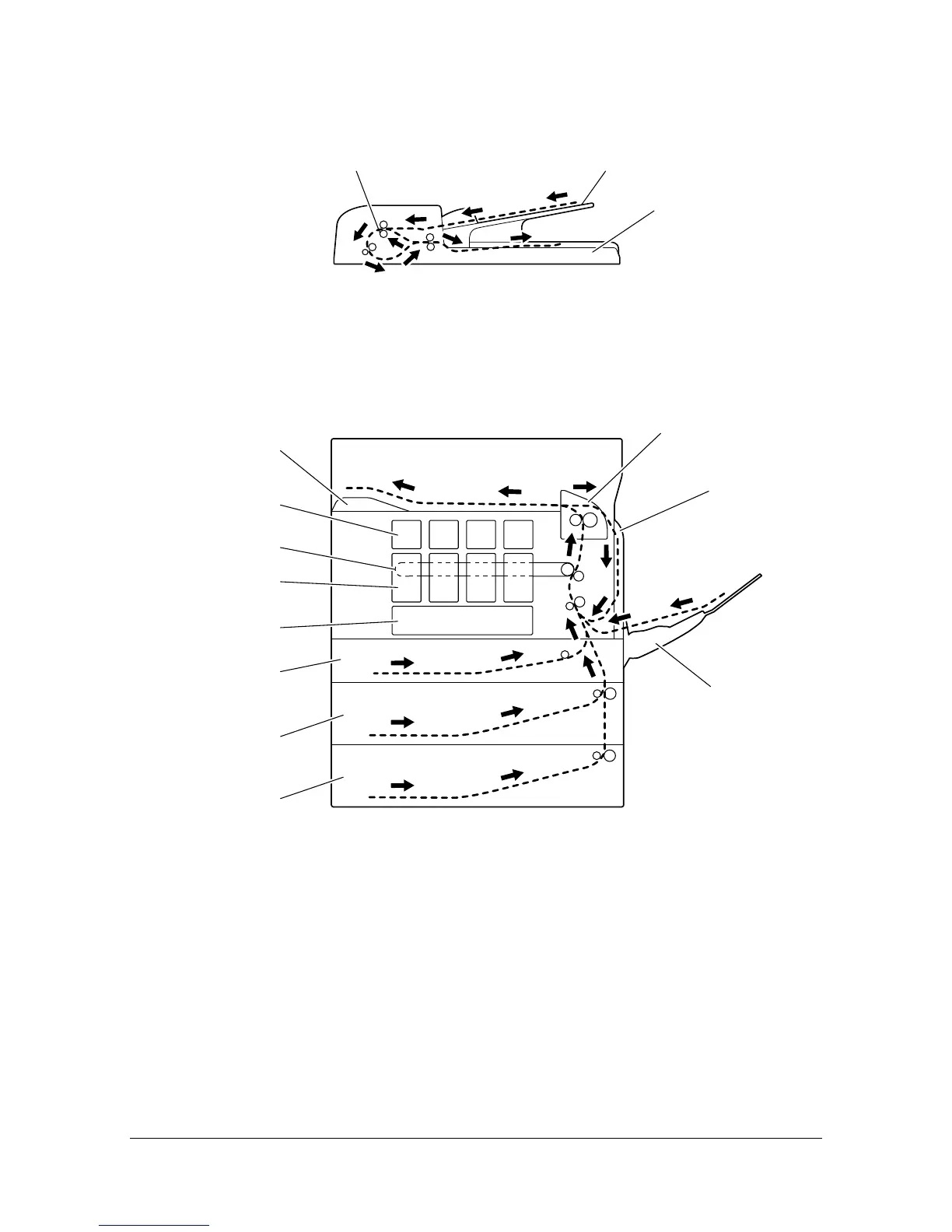

Understanding media path will help you locate media misfeeds
4 Fuser unit 10 Print head unit
5 Duplex 11 Imaging unit
6 Tray 1 (Manual feed tray) 12 Transfer belt unit
7 Tray 4 (optional lower feeder unit) 13 Toner cartridge
8 Tray 3 (optional lower feeder unit) 14 Output tray
9Tray 2
4
11
12
13
14
6
5
10
9
8
7
3
1 2
1 ADF media feed rollers
2 Document feed tray
3 Document output tray
