Chapter 6 Measurement procedures

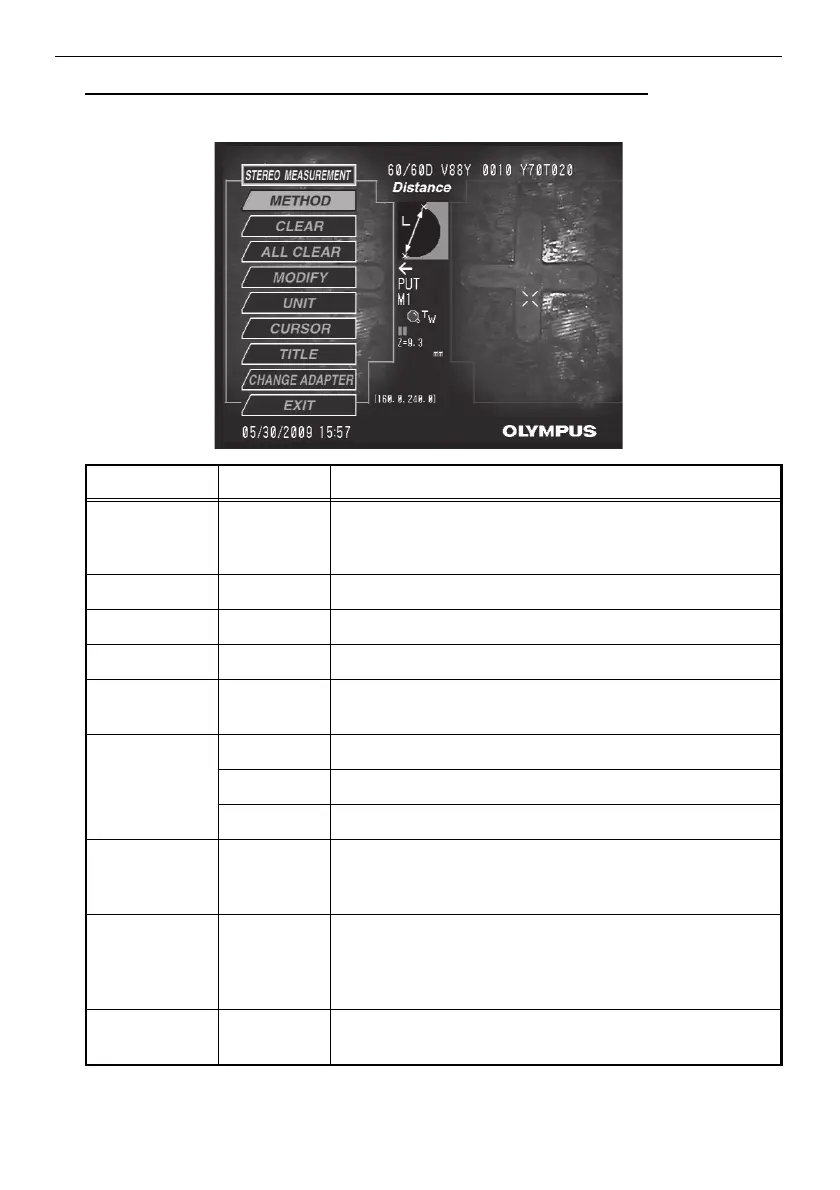

Menu display and functions of stereo measurement images
Pressing the [MENU/EXIT] button in the measurement screen
Main menu Submenu Description of function
METHOD —
Selects a measurement mode.
See “Selecting a measurement mode” (page 116) for details
about operations.
CLEAR — Clears the point specified immediately before.
ALL CLEAR — Clears all specified points.
MODIFY — Modifies a measurement point or corresponding point.
UNIT —
Selects the units of the measurement result from “mm” or
“inch”.
CURSOR
COLOR Changes the color of cursor and lines.
STYLE Changes the shape of cursor.
SPEED Changes the speed of cursor.
TITLE —
Input the title.
See “Inputting the title” (page 78) for details about
operations.
CHANGE
ADAPTER
—
Temporarily changes the selected optical adapter. (Only
when retrieving images)
See “Changing the optical adapter (with a retrieved image
only)” (page 122) for details about operations.
EXIT —
Exits the stereo measurements, and the display returns to
the screen before measurement starts.
