133

Chapter 8 Storage and maintenance

8.3 Changing the CO

Cartridge

 Replacing the CO

cartridge

1 Loosen the cartridge dial by turning it in the OPEN direction until it

will not turn anymore.

2 Confirm that the pressure indicator gauge is at zero.

3 Turn the pressure regulator counterclockwise to remove it from the

cartridge case.

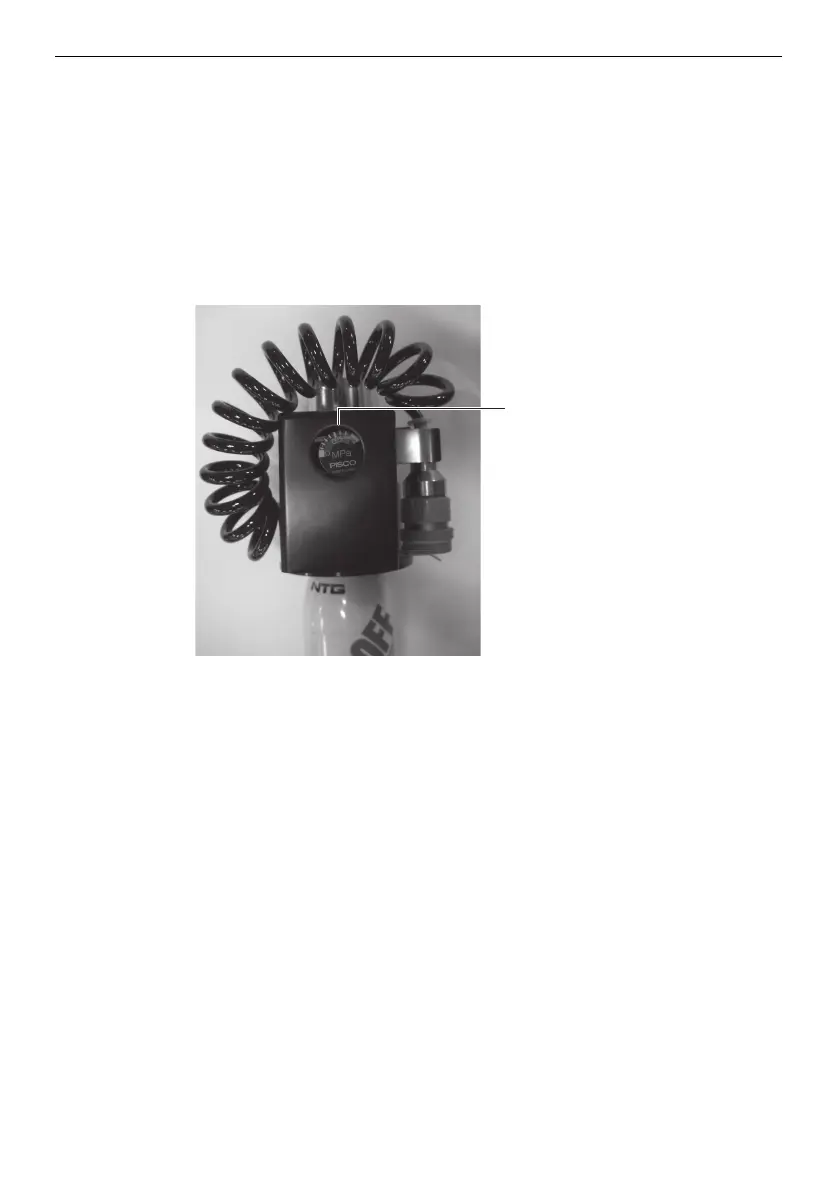

Pressure indicator
