Chapter 6 Measurement procedures
Recording the measurement result
The image with the measurement result is recorded by pressing the [FRZ/REC]
button on the remote control for at least two seconds (long push) when the
measurement result is displayed.
Exiting from measurement
Press the [LIVE/GAIN] button on the remote control to display exit measurement
screen and then select “OK” to exit measurement. Select “CANCEL” to return to
the stereo measurement screen.
Select “EXIT” in the stereo measurement menu to exit measuring and return to
the screen before measurement is activated.
In case accuracy cannot be achieved
(1) Bring the distal end of the insertion tube as close as possible to the
object so that the screen is filled with the object.
(2) Measure the length so that it is parallel with the screen whenever
possible. While the resolution of measuring is high when the
measuring direction is parallel with the screen, it gets low when
measuring direction becomes closer to depthwise. Therefore, the
measurement can be made more accurate by measuring a parallel
object to the screen.
(3) Change the point of view and capture an image again if the objects
have similar patterns around measurement points have few surface
characteristics or if the image is blurry or reflective.
(4) Check that the optical adapter is attached properly to the distal end of
the insertion tube.

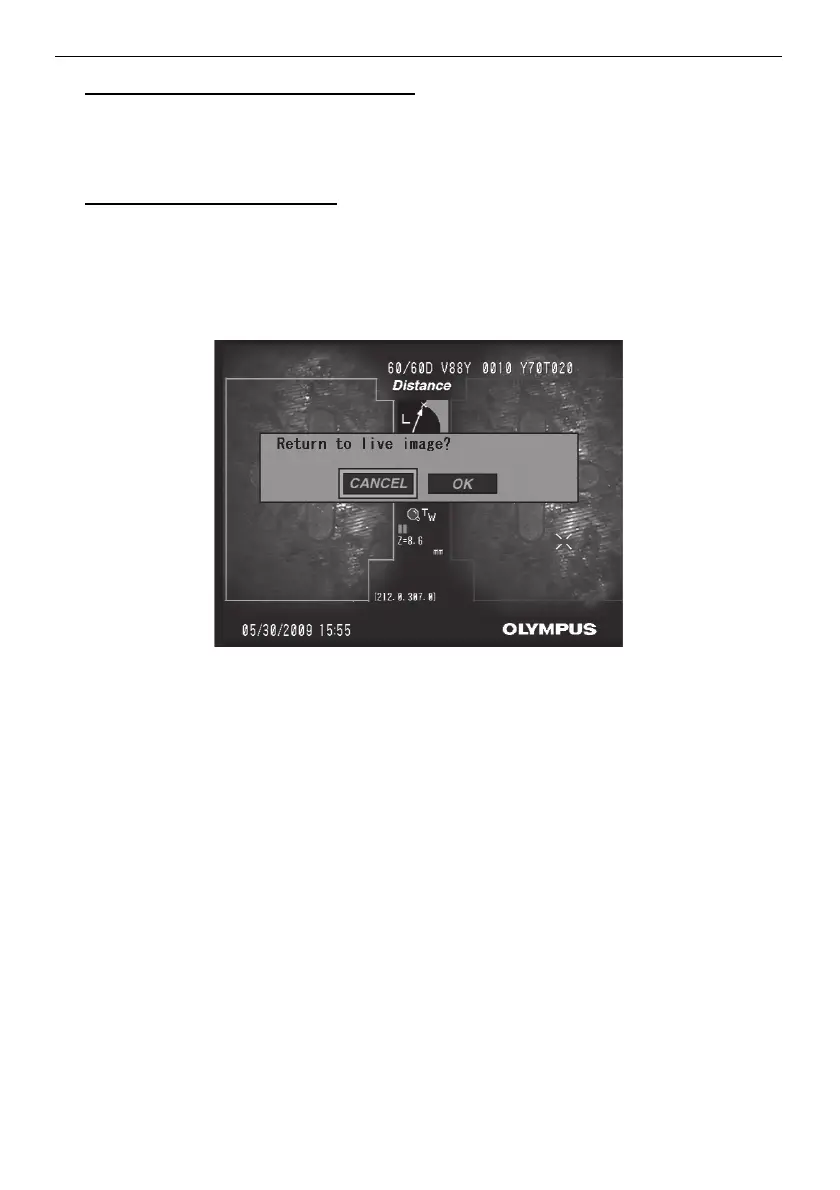

Exit measurement confirmation window
