Chapter 4 Basic operations
 Indicator display
 How to read the gravity indicator
The gravity indicator is located on the bottom right of the live screen.
The gravity indicator shows the direction of gravity in 3 dimensions on the
screen.
The blue part of the gravity indicator represents "sky", the brown part is "ground".

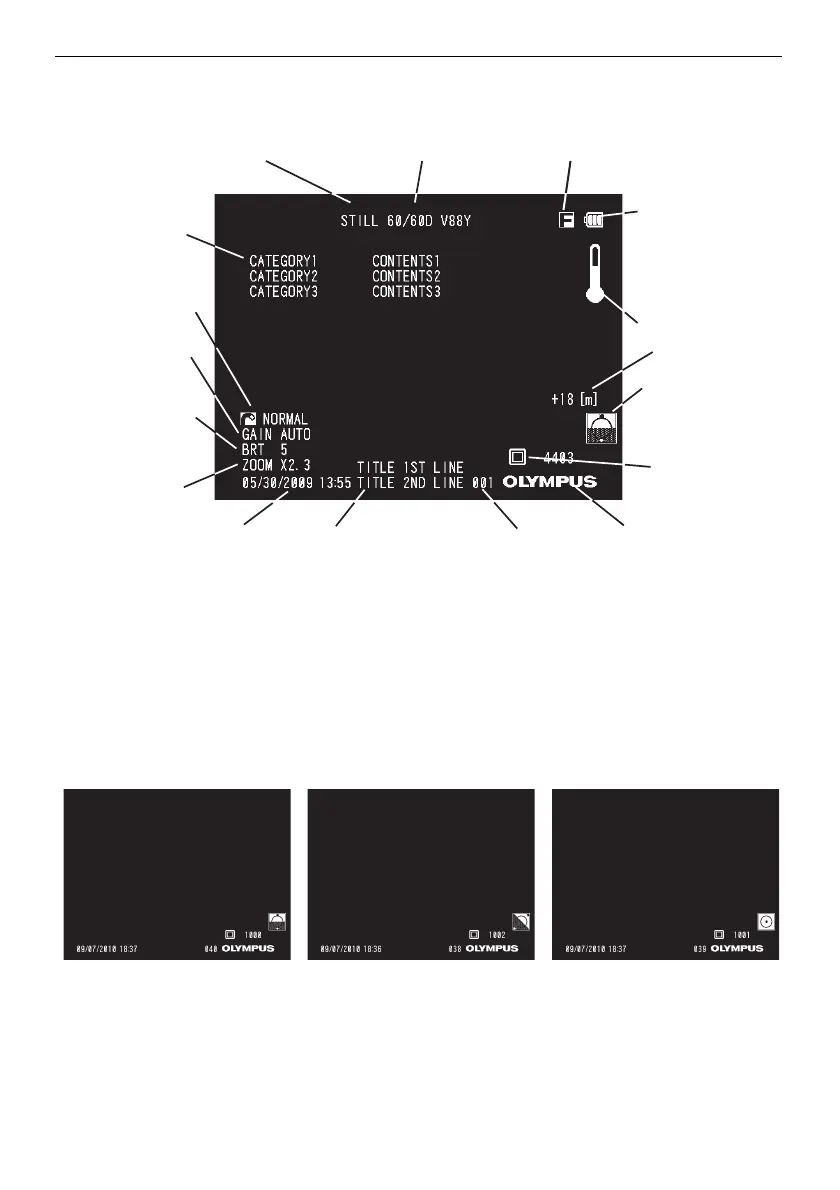

The following diagram shows the correspondence between direction of gravity
and the indicator display and the screen.
Freeze indicator
Gravity indicator
LogoSequence
number
Recording/playback indicator
Brightness/contrast
level
Gain mode
Zoom level
Date/time Title
Battery indicator
Length indicator
Optical adapter name
Note
Recording
destination
indicator
Temperature
indicator
Angle mode
The direction of gravity is
towards the bottom of the
screen.
The direction of gravity is at a
45° angle to the screen.
The direction of gravity is
from the back of the monitor
coming directly through the
screen.
