Chapter 6 Measurement procedures

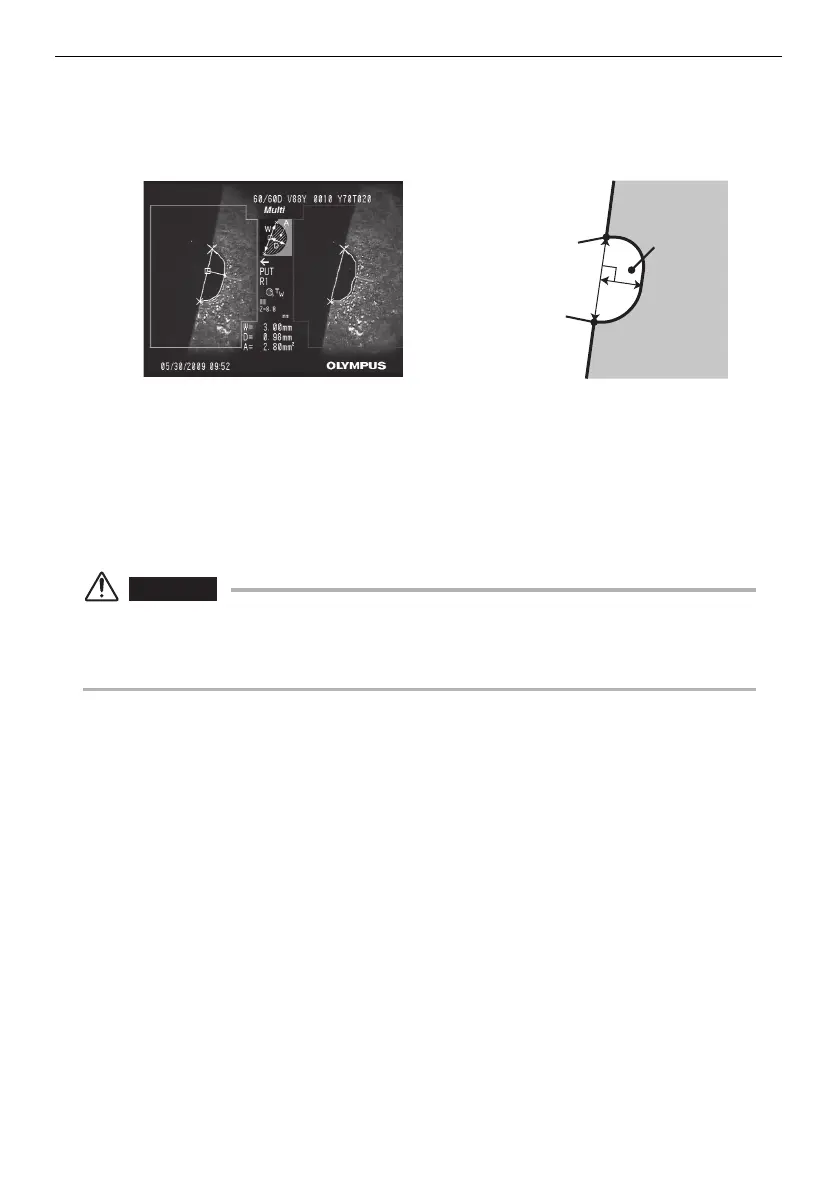

Multi
This type of measurement automatically detects and displays the material lost
region between two specified points, and measurements the width, depth and
area.
1 Specify reference points by placing the cursor on each extremity of
the measurement object and pressing the [MEAS/ENTER] joystick
to measure.
Display the boundary line around the detected material loss region, width, depth, and area
on both sides of the top of the screen.
CAUTION
• Material loss may not be detectable if the loss edges are not clearly shown.
• The shape of the material loss must be such that it is on the same plane. Material loss may
not be detectable if it is not on the same plane.
Reference point
Area
Depth
Multi
Width
Reference point
