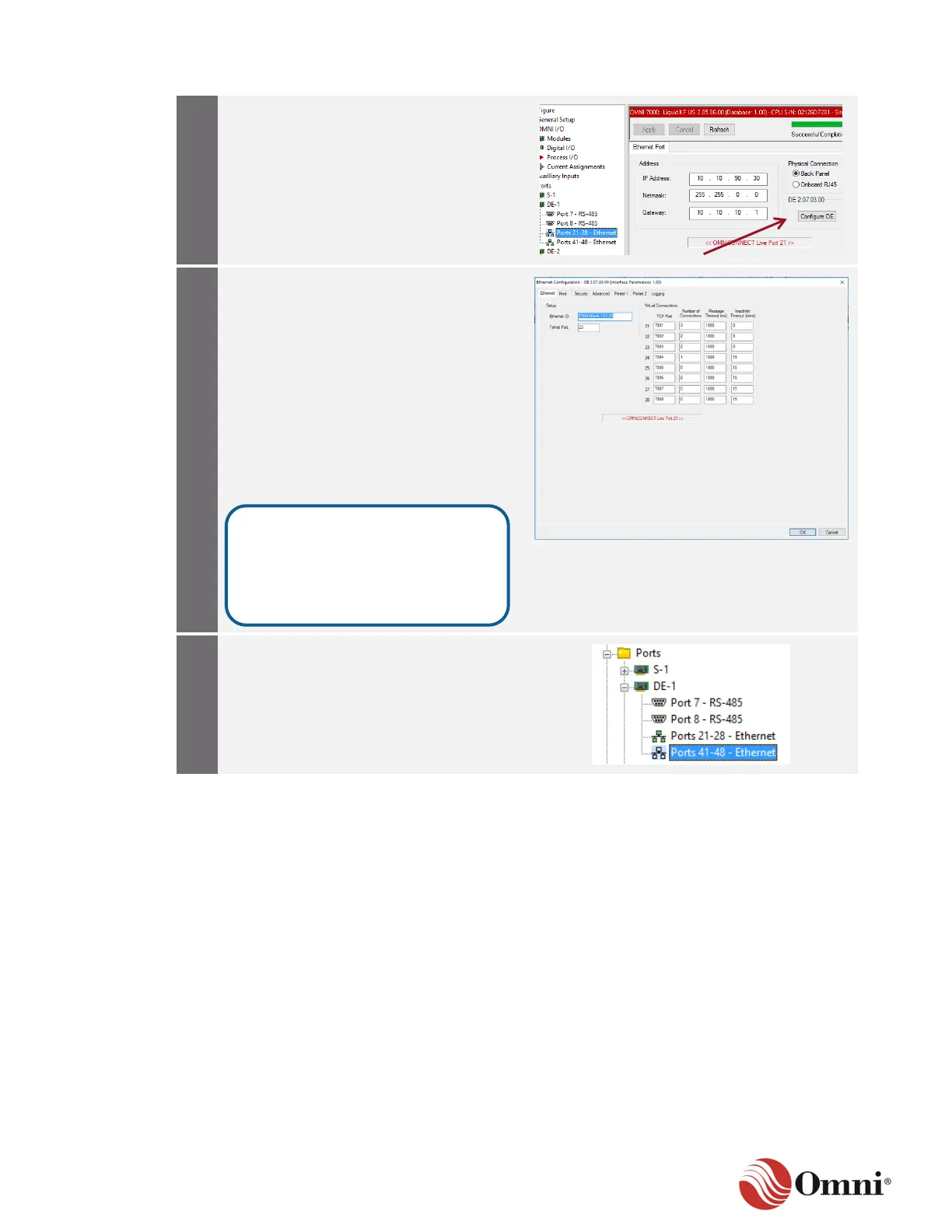

For Ethernet ports, under DE-1 click an
Ethernet port then click Configure DE to
view the Ethernet Configuration
window.
The Ethernet Configuration window
houses advanced Ethernet port
configuration options. For network printer
setup, go to Section 4.10.8 Configure a
Printer.
Fill in the necessary information in the
screens for each tab.
a. When you complete all tabs, click
OK on any tab.
b. Click Apply to save your
changes.
Continue selecting and completing fields
for each Ethernet port as you move down
the Configure tree.
4.10.5 Assign I/O to a Meter Run
After the modules are configured with the proper settings, assign the inputs to a meter run or
prover process variable, as applicable:
Press F1 for OMNICONNECT Help
for the details on the information
and parameters needed for each
tab.
