Omni 7000 Series - Panel Mount with Extended Back Panel

OMNI 4000/7000 Installation Guide – Rev H
3-6
Installation
3.
Cut out the mounting panel to
specifications.
4.
Slide the chassis into the cutout.
5.
Tighten the mounting screws on the
mounting brackets at the top and bottom of
the chassis.
6.
Connect the Earth Ground from the
cabinet or rack to the Earth Ground stud
on the back of the chassis.
3.4.2 Panel Mount with Extended Back Panel
Figure 3-7, Figure 3-8 and Figure 3-9 illustrate the OMNI 4000 and 7000 flow computer panel
mount configurations with an extended back panel.

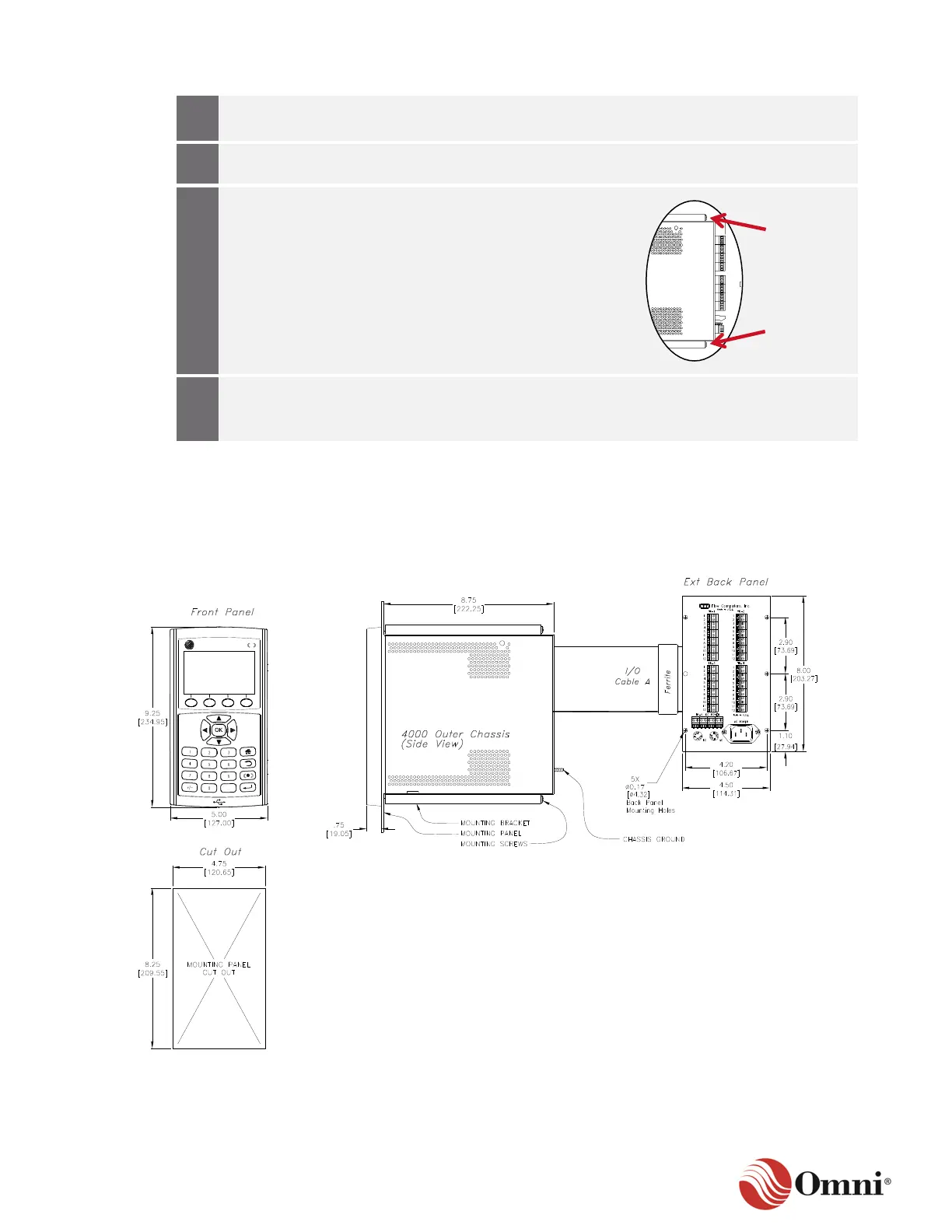

Figure 3-7: OMNI 4000 Panel Mount with Extended Back Panel
