Omni 7000 Series Installation Guide

OMNI 4000/7000 Installation Guide – Rev H
4-8
Configuration
4.3.1 Configuring Serial Ports
The following selections are available from the front panel for serial ports located on the Serial
modules or Ethernet modules. Not all serial port selections shown here will appear on the screen,
as it depends on what Serial or Ethernet modules are installed on the flow computer:
• Serial (S) Module 1 for RS-232 or RS-485 ports 1 and 2 on the S-1 module
• Serial (S) Module 2 for RS-232 or RS-485 ports 3 and 4 on the S-2 module
• Serial (S) Module 3 for RS-232 or RS-485 ports 5 and 6 on the S-3 module
• Ethernet (DE) Module 1 for RS-485 2-wire ports 7 and 8
• Ethernet (DE) Module 2 for RS-485 2-wire ports 9 and 10
To access serial ports, follow these instructions:

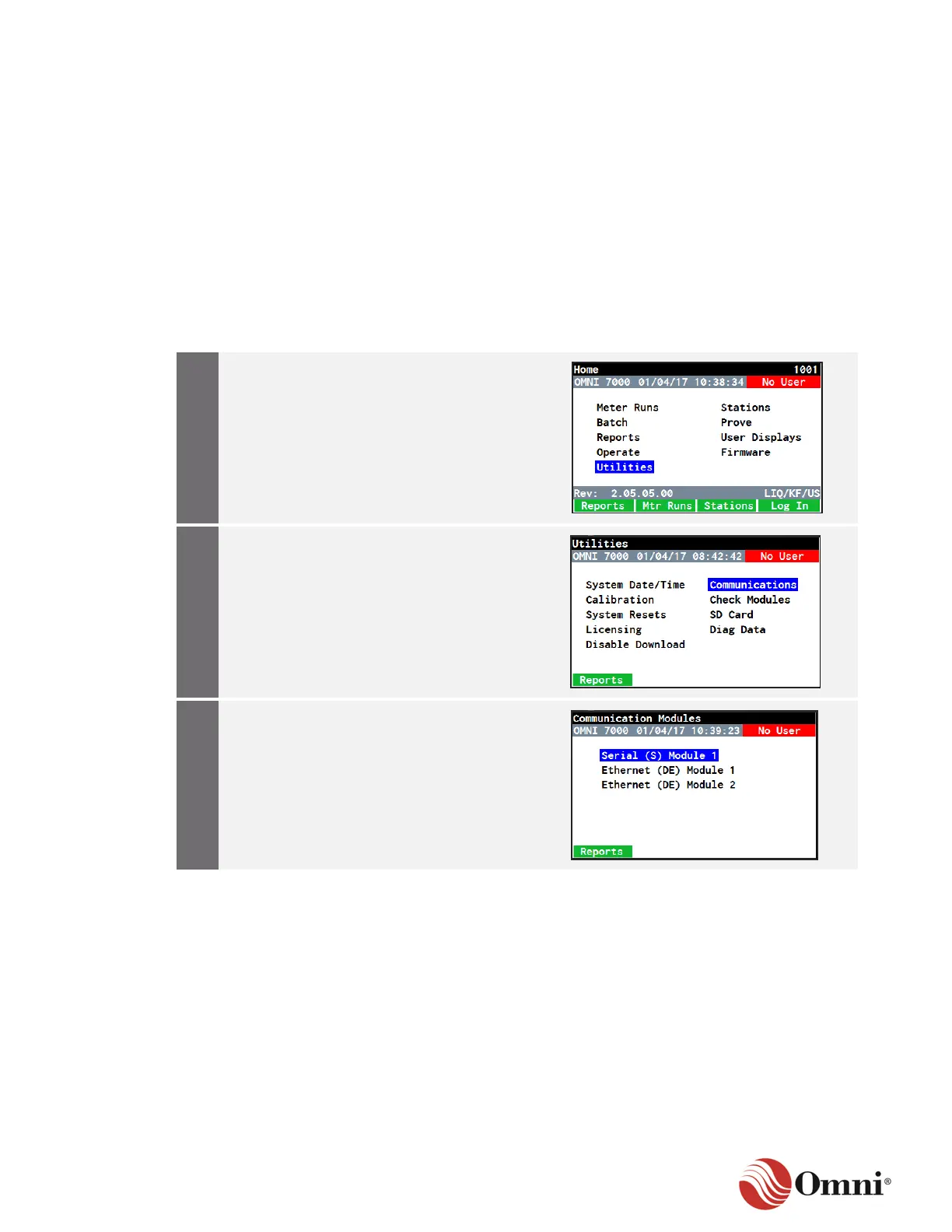

1.
From the Home screen, select Utilities,
and then press OK.
2.
On the Utilities screen, select
Communications and press OK.
3.
a. Select the module you want to edit
(Serial or Ethernet) and press OK.
b. If your flow computer includes an
Ethernet Module, go to Step 3.
If it does not, go to Step 4.
