OMNI 4000/7000 Installation Guide – Rev H
After clicking the Apply button, verify
that the Meter Runs you selected in the
Equipment List now appear in the
Configure tree in the left panel.
4.10.3 Configure Input and Output Channels
Configure and assign the channels in OMNICONNECT to associate the physical I/O to each
installed transducer.
To view all the modules that are currently installed in your flow computer, follow these
instructions:

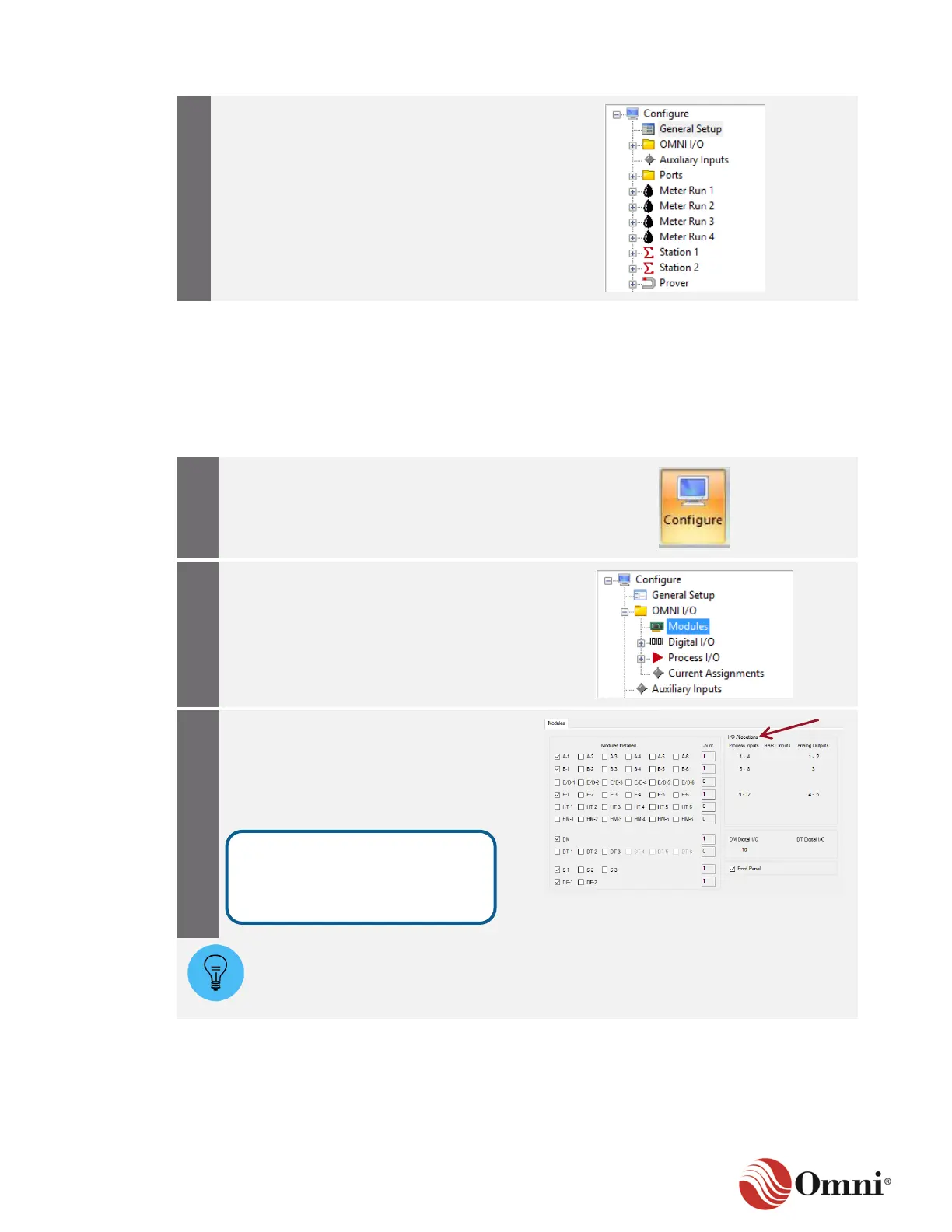

Click the Configure button in the Home
ribbon to open the Configure tree in the
left panel.
Click the + to expand the OMNI I/O section
in the tree, and then select Modules
This opens the Modules screen, where
you can review the hardware modules
previously installed in the flow computer.
Verify the I/O Allocation numbers for
configuring the Process Inputs and
Analog Outputs.
Changes to the module configurations and hardware can only be made while offline.
However, confirm that any changes you make to the modules and configuration in
the offline mode matches the hardware before transmitting the configuration to the
flow computer.
The module selections are
read-only and cannot be edited
while the flow computer is online.
