Configuration
Digital I/O Module Configuration
In these instructions, we configure a new DM module. Configuration steps for other
types of modules are similar, but the specifics of setup will be different, depending
on the module.

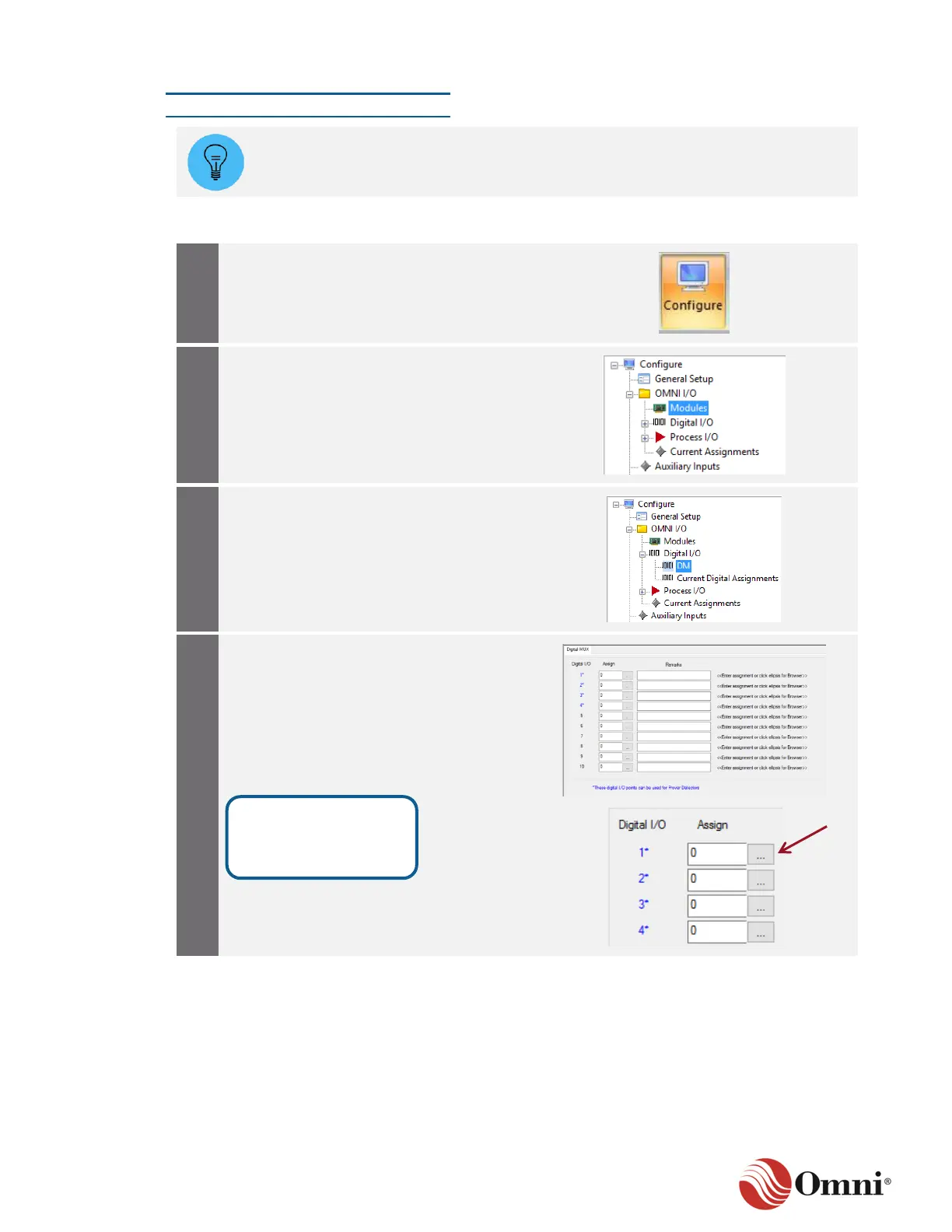

To configure Digital I/O points, follow these instructions:
1.
Click the Configure button in the Home
ribbon to open the Configure tree in the
left panel.
2.
Click the + to expand the OMNI I/O section
in the tree.
3.
Select and expand the Digital I/O section
of the tree; then select DM to display the
configuration settings on the screens to
the right.
4.
Fill in the required information in this
screen.
If you do not already have a Digital I/O
assignment, click the Browser button (the
ellipses) to the right of the Assign field to
open the OMNI Database Browser and to
make the database variable assignment.
Press F1 to access
OMNICONNECT Help
for assistance.
