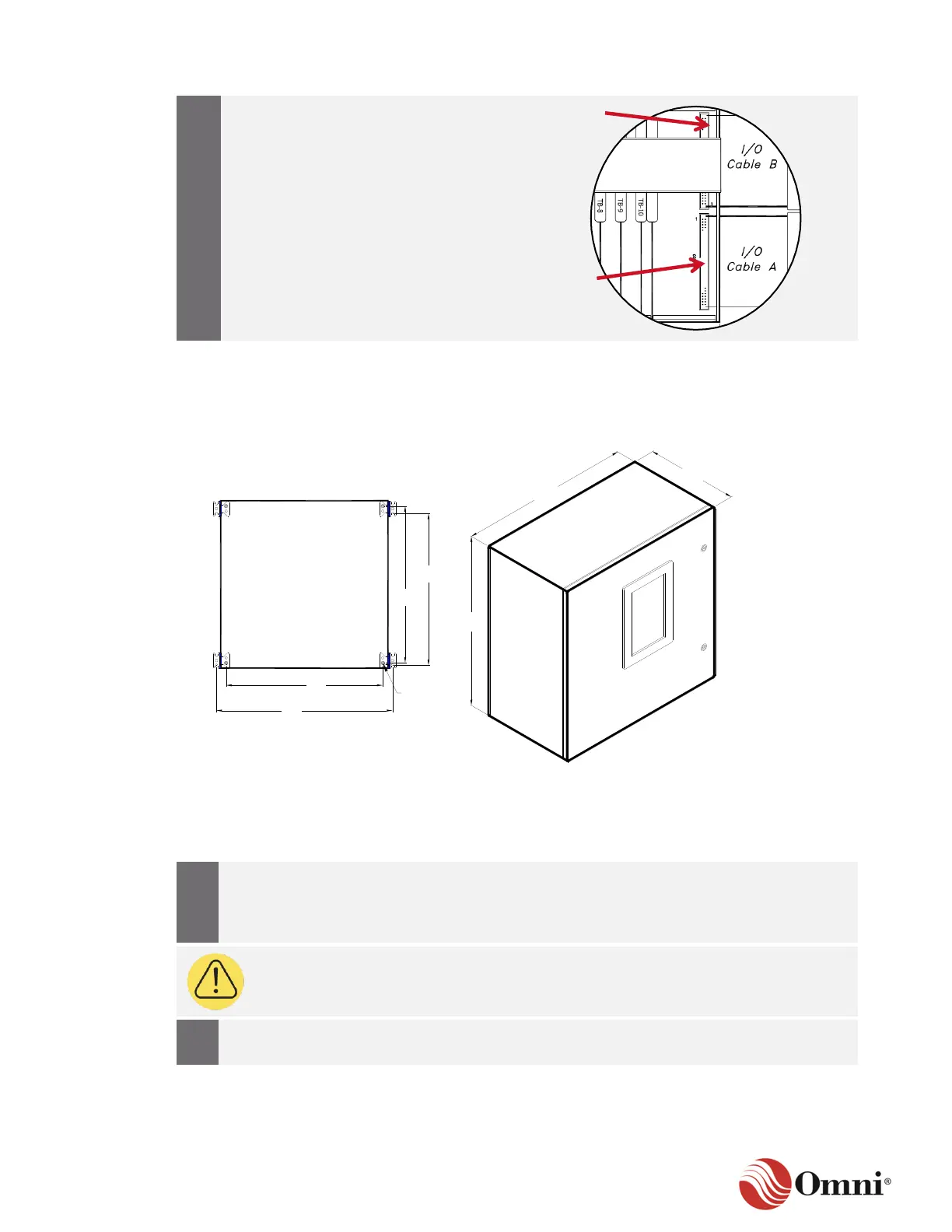

To complete installing the OMNI 7000
I/O cable:
a. Connect I/O Cable A to CONN A
and I/O Cable B to CONN B on the
motherboard in the chassis.
b. Verify that the cables are correctly
connected.
3.4.4 NEMA 4X Enclosure Installation
Figure 3-13 illustrates the NEMA 4X enclosure.
Figure 3-13: NEMA Enclosure
To safely install a NEMA enclosure, follow these instructions:
1.
Verify that the surface of the structure
where the enclosure will be mounted is a
bonded metal surface and connected to an
Earth Ground.
CAUTION: The approximate weight of a single OMNI 4000/7000 NEMA 4X
enclosure is 87 lbs. (39.43 kg). The structure to which the enclosure will be mounted
must be capable of supporting this weight.
2.
Verify that the structure can support the
weight of the enclosure.
23.6
[600]
11.8
[300]
23.6
[600]
22.1
[562]
22.1
[562]
MOUNTING HOLES
Ø M8 BLIND RIVITS
AND MTG BRACKET
24.9
[632]
21.4
[544]
