6 Applied Functions
OMNUC G5-series (Pulse-train Input Type) AC Servomotors and Servo Drives User’s Manual
6-6 Brake Interlock
6
6-6-4 Operation
*1 The servo does not turn ON until the motor rotation speed drops to approximately 30 r/min or lower.
*2 The operation of the dynamic brake when the servo is OFF depends on the value set in Stop Selection with
Servo OFF (Pn506).
*3 The Brake Interlock Output (BKIR) signal is output when a release request command is received from servo
control. The BKIR signal is allocated to the general-purpose output (CN1).
Note The brake attraction time and release time vary depending on the Servomotor brake. Please refer to 3-3
Servomotor Specifications on page 3-36 for details.
6-6-4 Operation

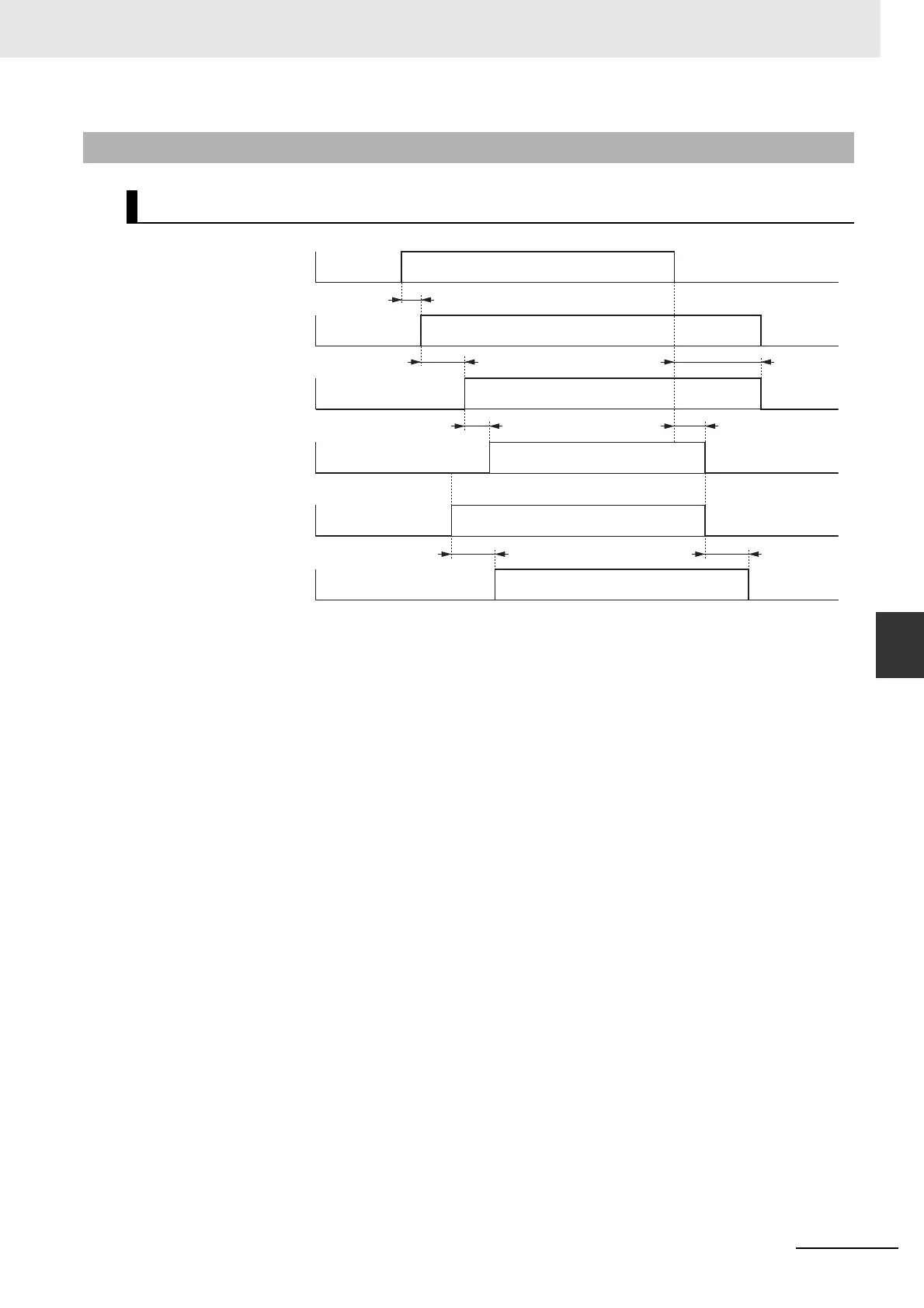

Servo ON/OFF Operation Timing (When Motor is Stopped)
Operaton command
(RUN)
ON
OFF
Dynamic brake
Released
Engaged
Motor power supply
ON
OFF
Brake release request
from servo control
*3
ON
OFF
Approx. 2 ms
Approx. 4 ms 1 to 6ms
Approx. 60 ms
Brake interlock
output (BKIR)
*3
ON
OFF
Released
Hold
Attraction time Release time
Servo OFF Servo OFFServo ON*
1
DB engaged DB engaged
*2
DB released
Power supplyNo power supply
No power
supply
Pn437
Release request
Release request
Holding brake
operation
Brake released

Omron G5 Series Specifications

General

Feedback	Incremental Encoder, Absolute Encoder
Communication	EtherCAT
Safety Function	STO (Safe Torque Off)
Protection Functions	Overvoltage, Undervoltage, Overcurrent
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
