2 - 3
2 Models and External Dimensions
OMNUC G5-series (Pulse-train Input Type) AC Servomotors and Servo Drives User’s Manual

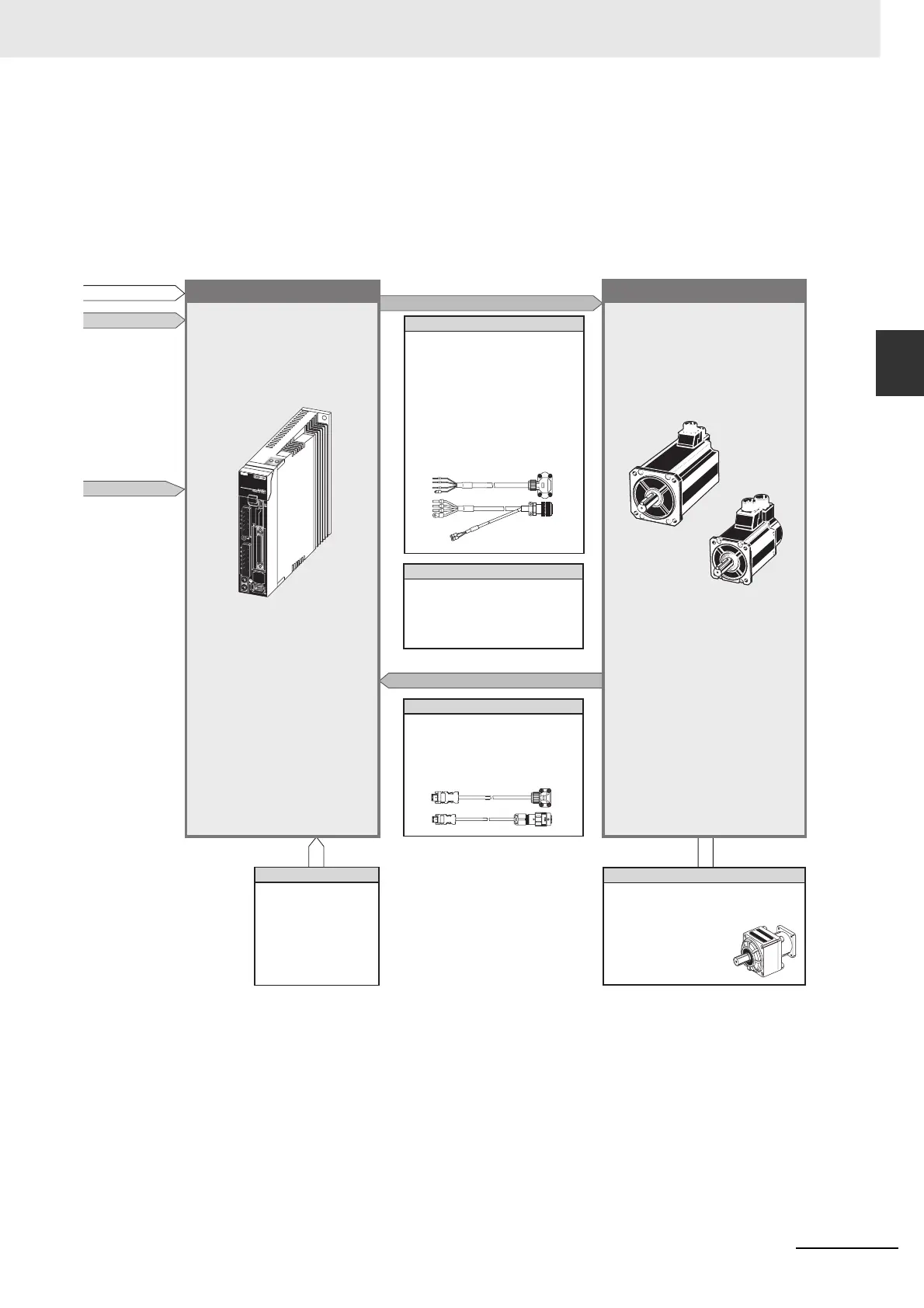

2-1 Servo System Configuration
2
AC Servo Drive
Peripheral Devices
Reactors
3G3AX-DL
3G3AX-AL
External Regeneration
Resistors
R88A-RR
AC Servomotor
Decelerators
Backlash: 3 Arcminutes max.
R88G-HPG
Backlash:
15 Arcminutes max.
R88G-VRSF
OMNUC G5-series
(Pulse-train Input Type)
AC Servomotor
R88D-KP
OMNUC G5-series
(Pulse-train Input Type)
AC Servomotor
R88M-KE
Motor power signals
Feedback Signals
Power Cables
• Without Brake
R88A-CAS
• With Brake
R88A-CA
B
• Without Brake
R88A-CA
SR
• With Brake
R88A-CA
BR
Global Non-Flexible Cables
Global Flexible Cables
Encoder Cables
Global Non-Flexible Cable
R88A-CRG
Brake Cables (50 to 750 W max.)
Global Non-Flexible Cable
R88A-CAGAB
Global Flexible Cable
R88A-CAGABR
Global Flexible Cable
R88A-CRGR
USB communications
200 VAC 3,000 r/min
2,000 r/min
1,000 r/min
