Chapter 8: Maintenance

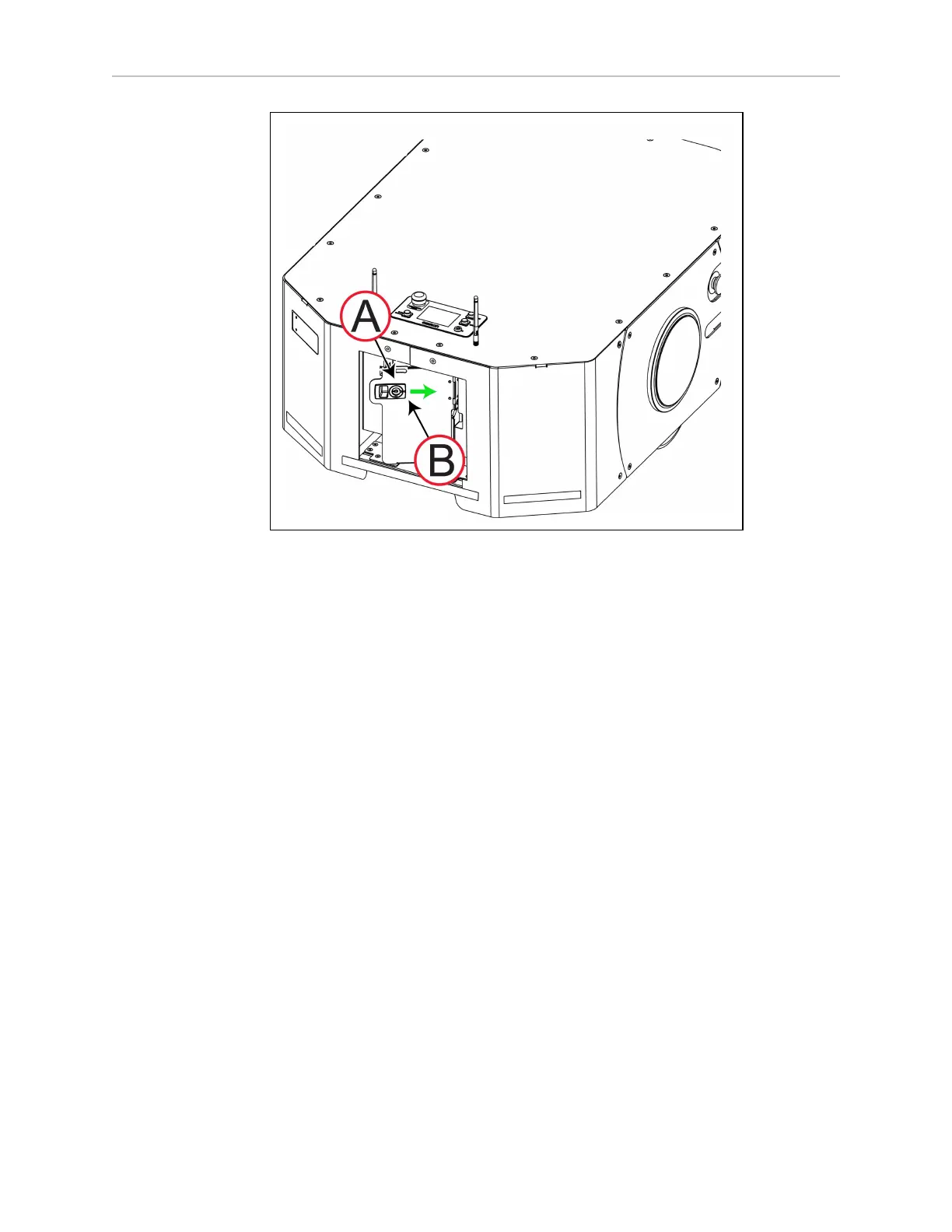

Figure 8-7 Accessing the LD-250 Battery
1.
Shut down the AMR. See: OFF Button on page 126.
2. Remove the battery door LD-250 skin. See: Access the Battery Compartment on page 53.
3.
Unlock (if required) then unlatch and open the battery compartment door by sliding the
latch (A) to the right (B).
4.
Examine how the cables are routed, and then disconnect the power and data cables.
20472-000 Rev B LD-250 Platform User's Guide 159
