Chapter 1: Introduction

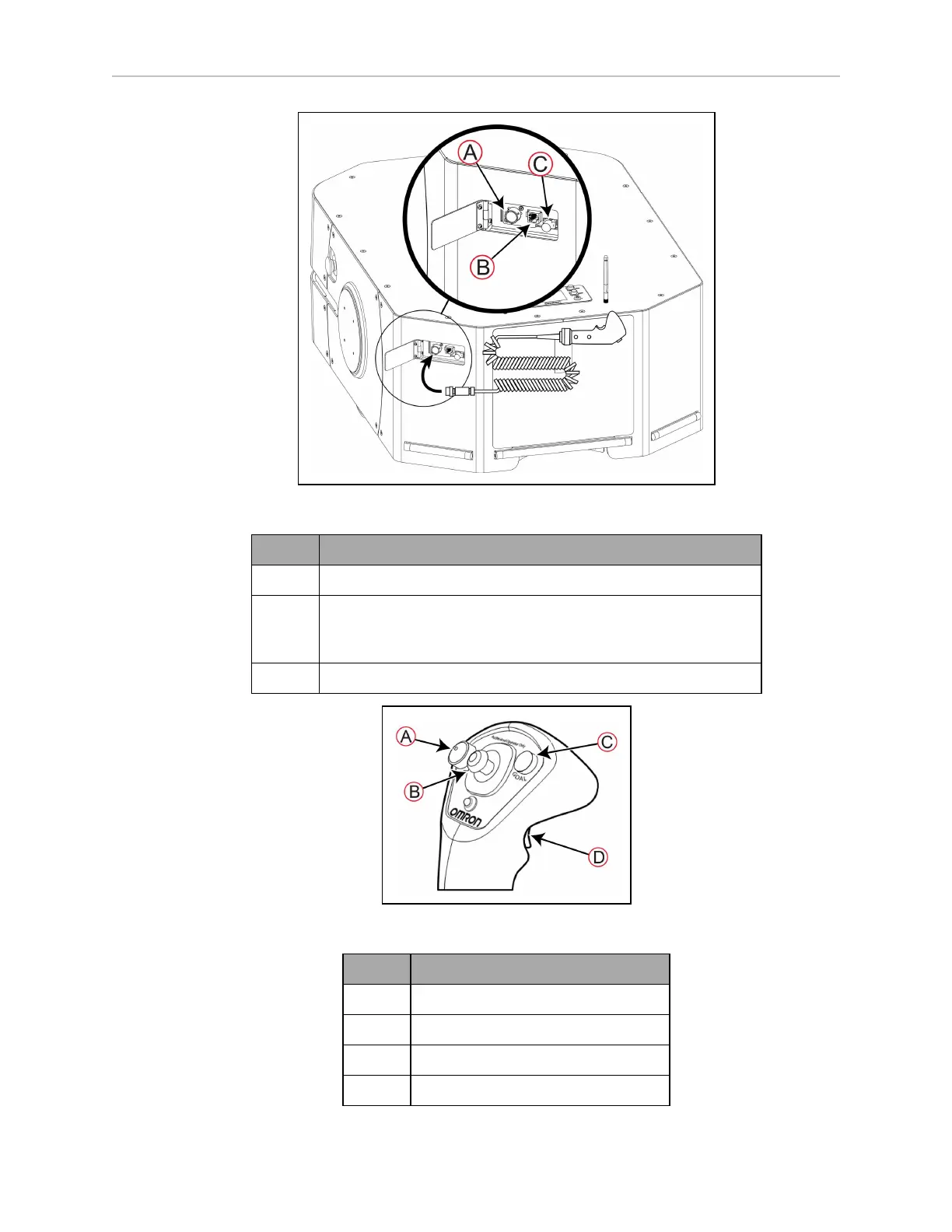

Figure 1-5 Joystick Connection Point
Callout Feature
A Joystick port.
B Direct Ethernet connection that enables you to connect a PC to
the SetNetGo OS. See: Maintenance Ethernet Connection on
page 67.
C Push latch.
Figure 1-6 Joystick Controls
Callout Control Function
A AMR speed control.
B AMR steering and direction of travel.
C Map goal creation button.
D Movement trigger.
20472-000 Rev B LD-250 Platform User's Guide 17
