Chapter 3: Setup

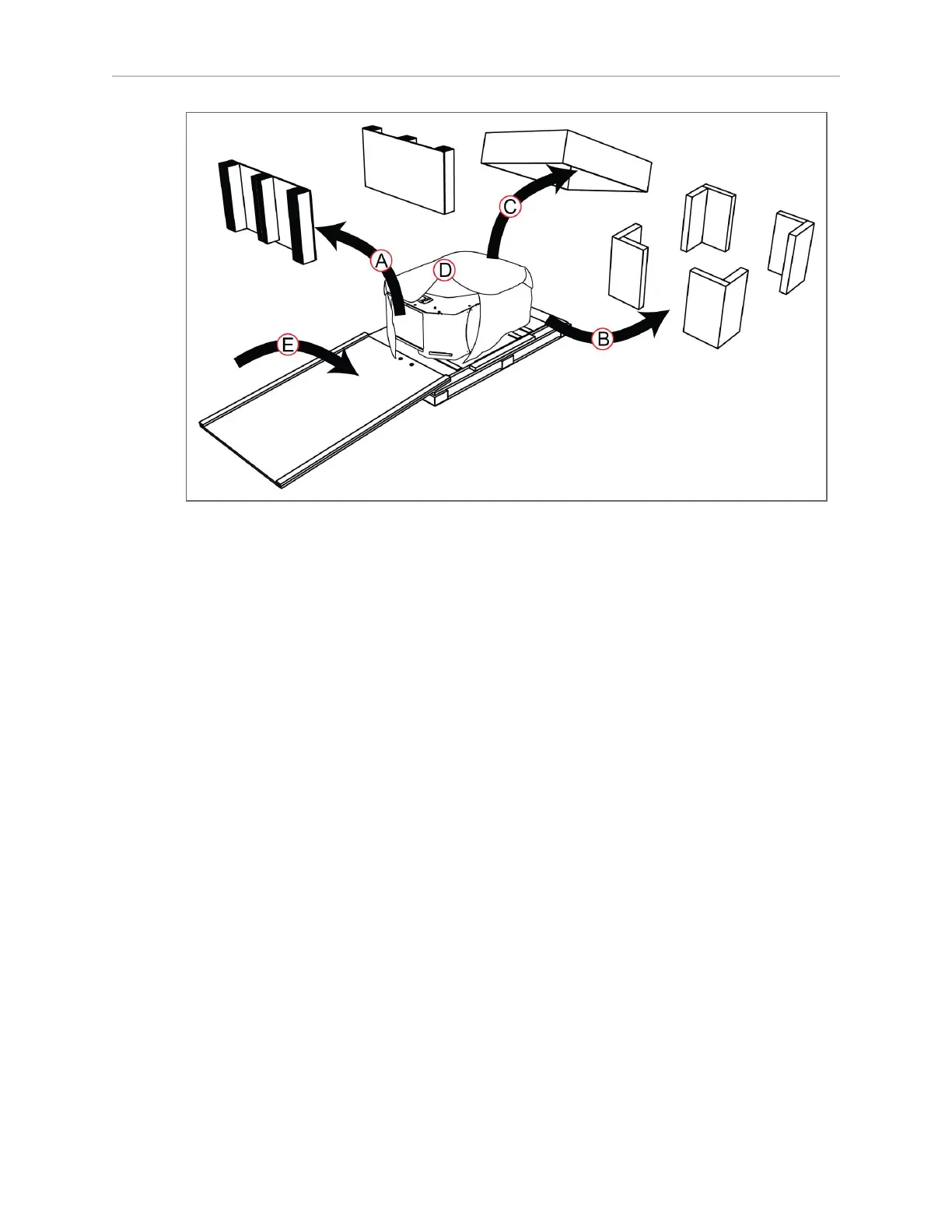

Figure 3-4 Unpacking the LD-250.
3.
Referring to Figure 3-3, Remove the protective filler (A) from each end of the pallet.
4.
Remove the four foam corners (B).
5.
Remove the corrugated fiberboard cover from the LD-250 (C). There is padding under-
neath to protect the top surface of the LD-250.
6.
Remove the padded wrapping (D) from the LD-250.
7.
Place the ramp in the end of the pallet, so that the two bolts in the pallet engage with
the holes in the ramp (E).
Before you can move the LD-250 off its pallet, you must first disengage the drive motors to
allow the drive wheels to move freely. To do this:
l
Remove both side skins so that you can access the drive train. See: Remove and Replace
the Side Skins on page 183.
l
Disengage the drive wheel motors. See: Engage and Disengage the Drive Wheel Motors on
page 148.
After you disengage the drive wheel motors, complete the unpacking procedure as follows:
