50 LD-250 Platform User's Guide 20472-000 Rev B
3.4 Unpacking Considerations

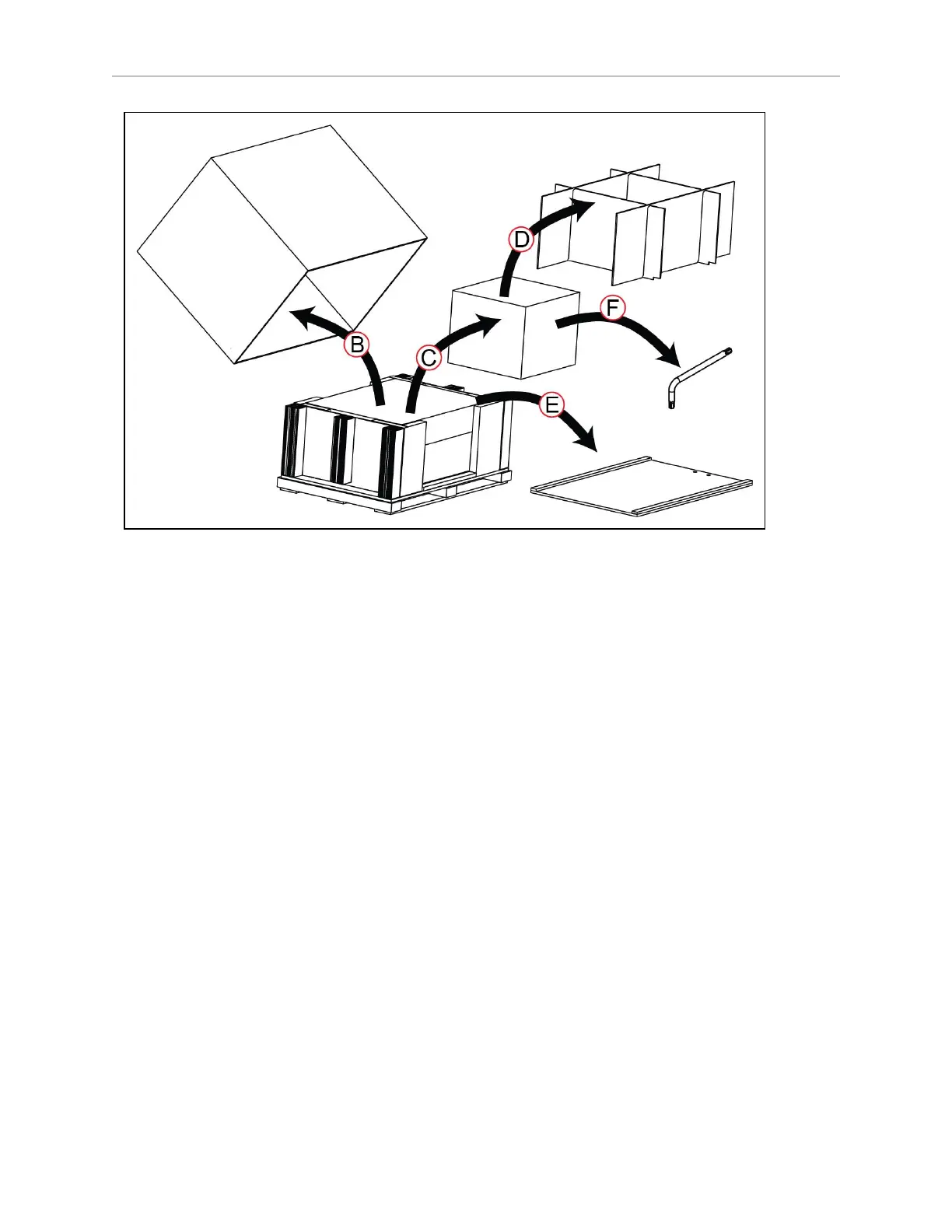

Figure 3-3 Unpacking the Docking Station and Accessories
1.
Referring to Figure 3-3, lift the main carton (A) upward and off the pallet.
2.
Remove any other accessories or options included in the filler (D). Locate one of the
included accessories, a T30 Torx driver (F), which you will need later to move theLD-
250.
3.
Remove the filler (D) and carton (C) containing the docking station, and then lift the
filler off the carton.
4.
Lift off the plywood ramp and set it aside temporarily.
