Overview of Symbol Quality
Overview of Symbol Quality
Information about symbol quality and timing can be appended to symbol data by enabling
specific evaluation parameters. The order in which these values are appended corresponds
directly to the order in which they appear in ESP‘s Symbol Quality tree control.
Symbol Quality parameters are separated into ISO/IEC 16022 Symbol Quality Output
and Omron Microscan Symbol Quality Output.
Total Read Time, Symbol Quality Separator, and Output Mode are common to both
ISO/IEC 16022 and Omron Microscan Grading Parameters.

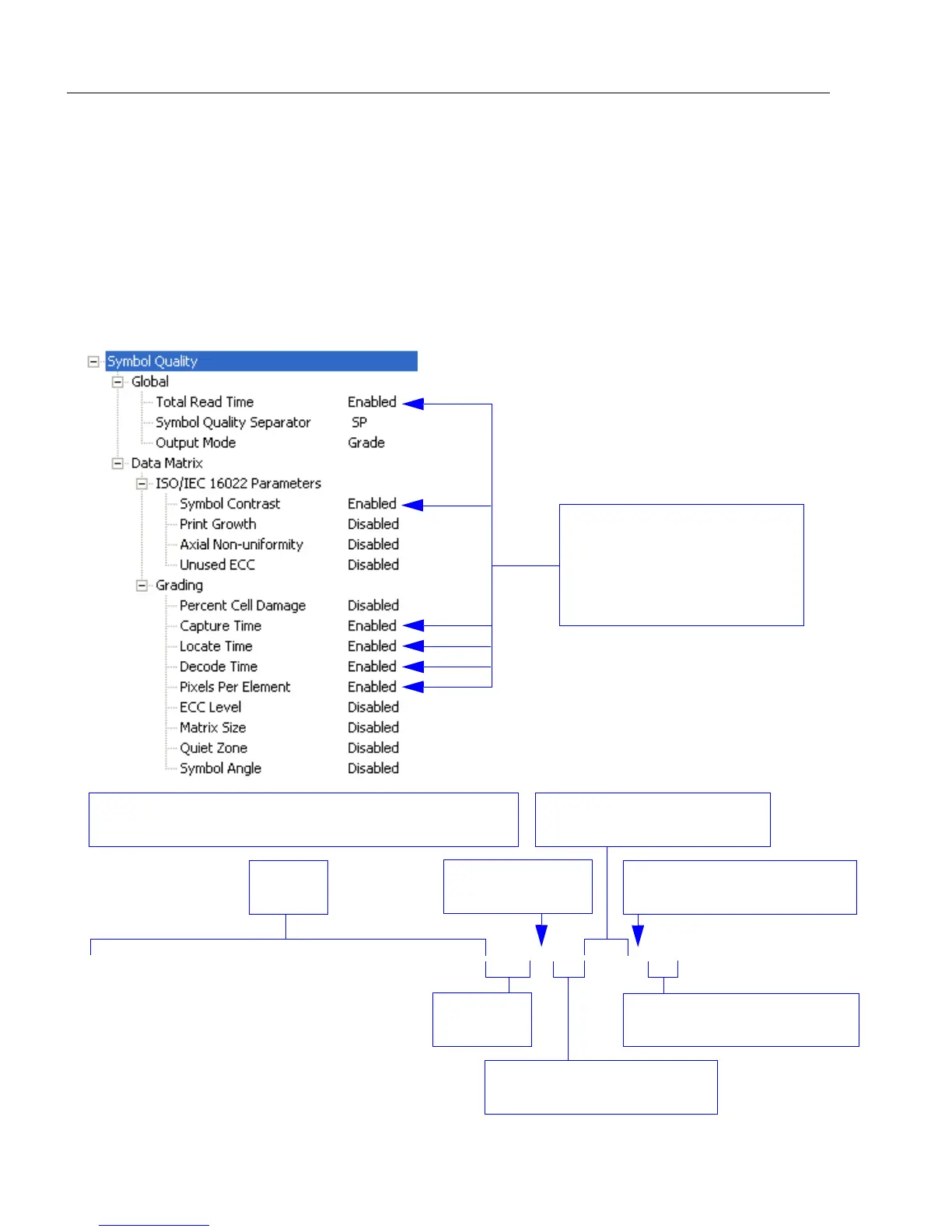

The enabled Symbol
Quality parameters are
appended to symbol data
output in the order
that they
appear in the tree control.
0123456789abcdefghijklmnopqrstuv 256 A 30 210 3 17
Symbol
Data
Symbol Contrast
(ISO/IEC 16022)
Capture Time
(Omron Microscan Grading)
Locate Time
(Omron Microscan Grading)
Total
Read Time
Decode Time
(Omron Microscan Grading)
Pixels Per Element
(Omron Microscan Grading)
If you enable the outputs shown above, they will be returned
in this order:
