13-4 MicroHAWK Engine Integration Guide

Send

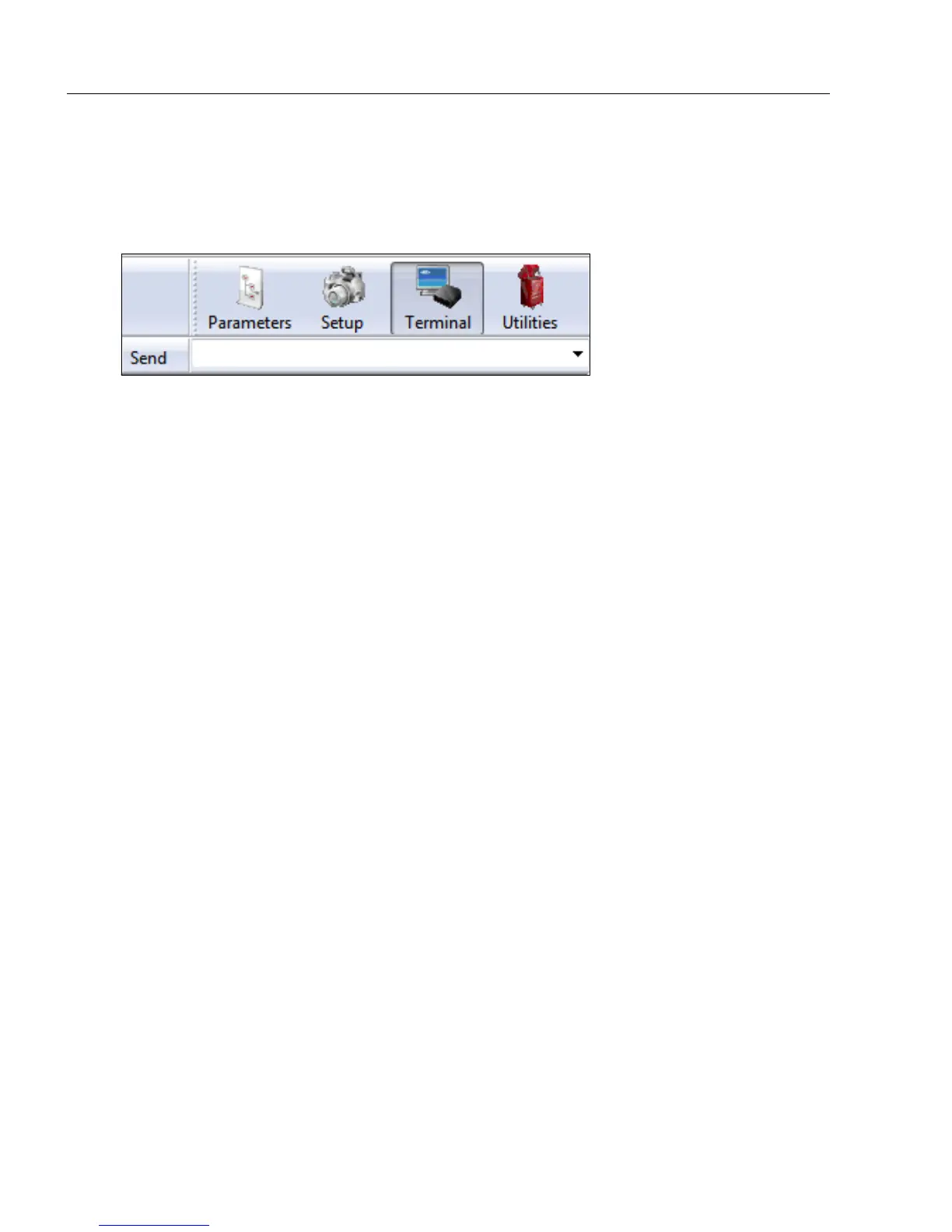

The Send function allows you to enter serial commands and then send them to the reader.

1. Type the command into the Send box.

2. Press Enter.

3. Click the Send button to the left of the text field to send .
