General Specifications
Appendix A — General Specifications
Dimensions
Height: 19.5 mm (0.77")
Width: 28.7 mm (1.13”)
Length: 33.9 mm (1.33”)
Weight: 0.49 oz. (14 g)
Environmental
Enclosure: IP40
Operating Temp: 0° to 40° C (32° to 104° F)
Storage Temp: -50° to 75° C (-58° to 167° F)
Humidity: 5% to 95% (non-condensing)
Operating Life: 50,000 hours @ 25 C
CE Standard for LED Safety: EN 60825-1:
1994+A1+A2 Class 1
Emissions
EN 55022:2010 Class A Limits
Electrical
Power: 5 VDC ± 5%; 350 mA at 5 VDC (typ.)
Connector
Type: Micro-B USB socket
Second USB Port on ZIF Connector
Communication
USB 2.0 High Speed
Illumination
High-Output LEDs: 4 Red (625 nm), 4 White
Indicators
Power LED, 2 Target Pattern LEDs,
2 Good Read Green Flash LEDs
Speed
Standard (up to 10 FPS)
Memory
2 GB Non-Volatile Flash, 256 MB RAM
Decoder
Standard (High-Contrast 1D);
Plus (High-Contrast 1D/2D);
X-Mode (Poor or Damaged 1D/2D)
Density
Standard or High-Density
Sensor Options
WVGA (Mono): CMOS 0.34 MP (752 x 480)
SXGA (Mono): CMOS 1.2 MP (1280 x 960)
QSXGA (Color): CMOS 5 MP (2592 x 1944)
Shutter
Global (WVGA, SXGA); Rolling (QSXGA)
Exposure
50 - 100,000; Default: 2,500 μs
Focus
Fixed (50-300 mm)
Frames Per Second
WVGA: Up to 60; SXGA: Up to 42; QSXGA: Up to 5
Symbologies
2D: Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode; Stacked: PDF417, MicroPDF417, GS1 Databar
(Composite and Stacked); Linear: Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode,
PLANET, POSTNET, Japanese Postal, Australia Post, Royal Mail, Intelligent Mail, KIX

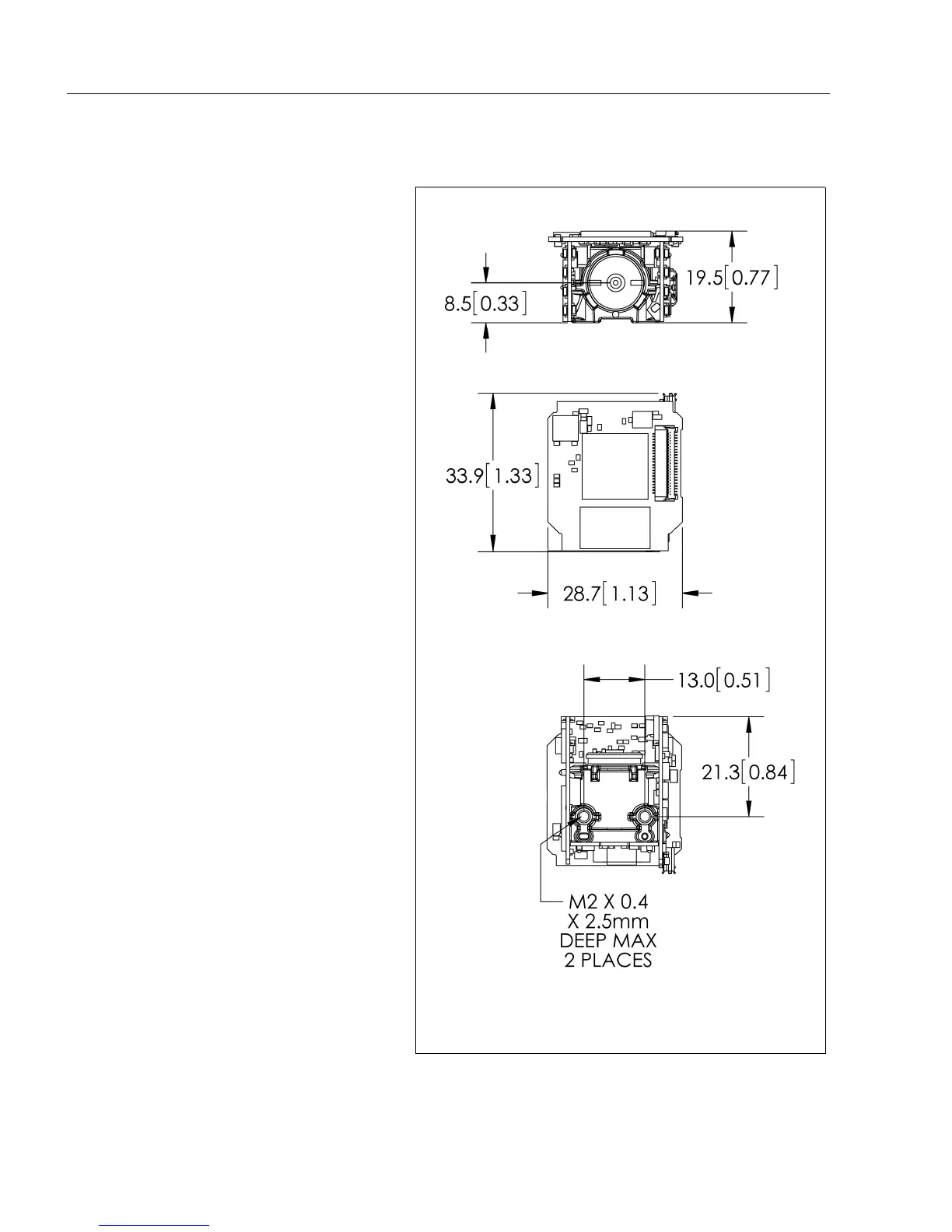

MicroHAWK Engine Dimensions
Note: Inches [millimeters]. Nominal dimensions shown.
Typical tolerances apply.
Front
Top
Base
