Overview of Symbol Quality
Locate Tab

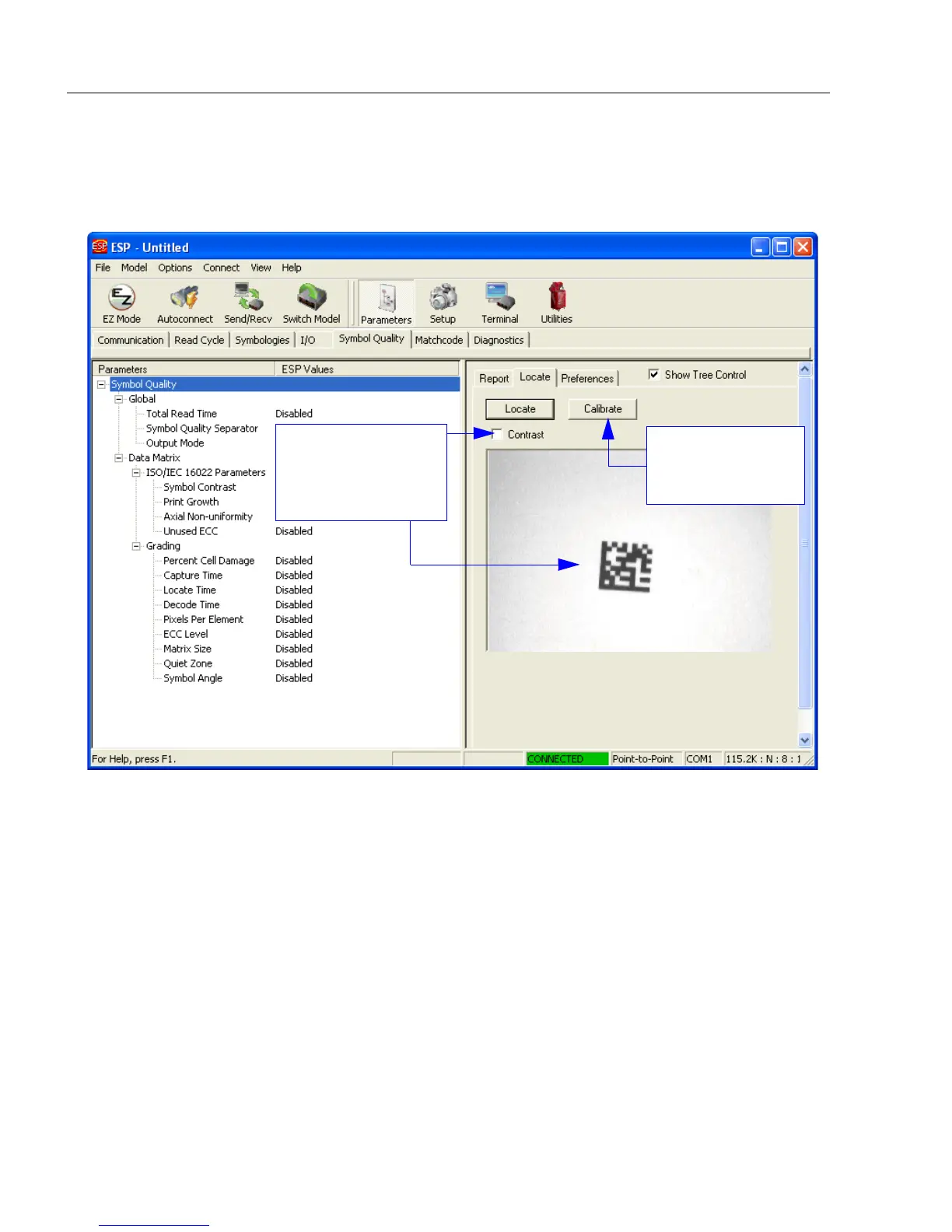

The Locate tab allows the user to determine the position of the symbol within the reader’s
field of view, and to optimize the reader’s camera settings for symbol quality evaluation.
Click the Calibrate
button to optimize
camera settings.
Click the Locate
button to display the
symbol in the
reader’s field of view.
