MicroHAWK Engine Integration Guide 11-11
Camera and IP Setup
Window of Interest by Serial Command

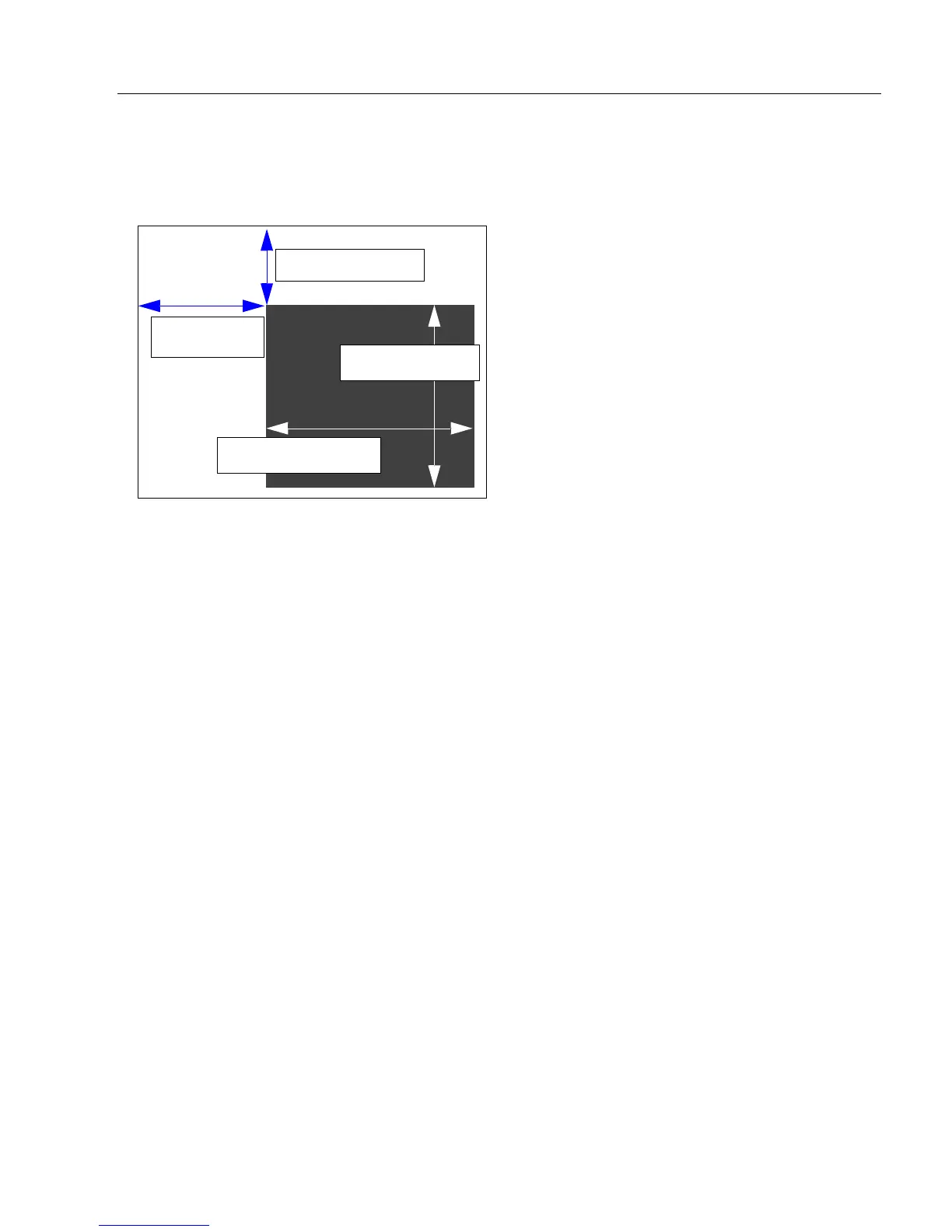

The figure shows where to locate the start position of the row and column pointers and
how to measure the column depth and row width dimensions.
Row Pointer
Column Pointer
Definition:
Defines the row position of the upper-left starting point of the image window.
Serial Cmd: <K516,row pointer,column pointer,row depth,column width>
Default: QSXGA MicroHAWK: 0
SXGA MicroHAWK: 0
WVGA MicroHAWK: 0
Options: QSXGA MicroHAWK: 0 to (1944 – row depth)
SXGA MicroHAWK: 0 to (1024 – row depth)
WVGA MicroHAWK: 0 to (480 – row depth)
Definition:
Defines the column position of the upper-left starting point of the image window.
Serial Cmd: <K516,row pointer,column pointer,row depth,column width>
Default: QSXGA MicroHAWK: 0
SXGA MicroHAWK: 0
WVGA MicroHAWK: 0
Options: QSXGA MicroHAWK: 0 to (2592 – column width)
SXGA MicroHAWK: 0 to (1280 – column width)
WVGA MicroHAWK: 0 to (752 – column width)
WOI Column
Pointer
WOI Row Pointer
WOI Column Width
WOI Row Depth
