12-12 MicroHAWK Engine Integration Guide
Database Mode
Image Dimensions
Window of Interest (WOI) by ESP
When Image Dimensions is set to Window of Interest, the database image dimension
parameters are camera settings, and they determine the size of the image to be captured.
Definition: Determines how the image dimension parameters will be implemented.
Serial Cmd:
<
K256,
switch mode,frame count/time,image process looping,
image dimensions
>
Default: 0
Options: 0 = Window of Interest 1 = Region of Interest

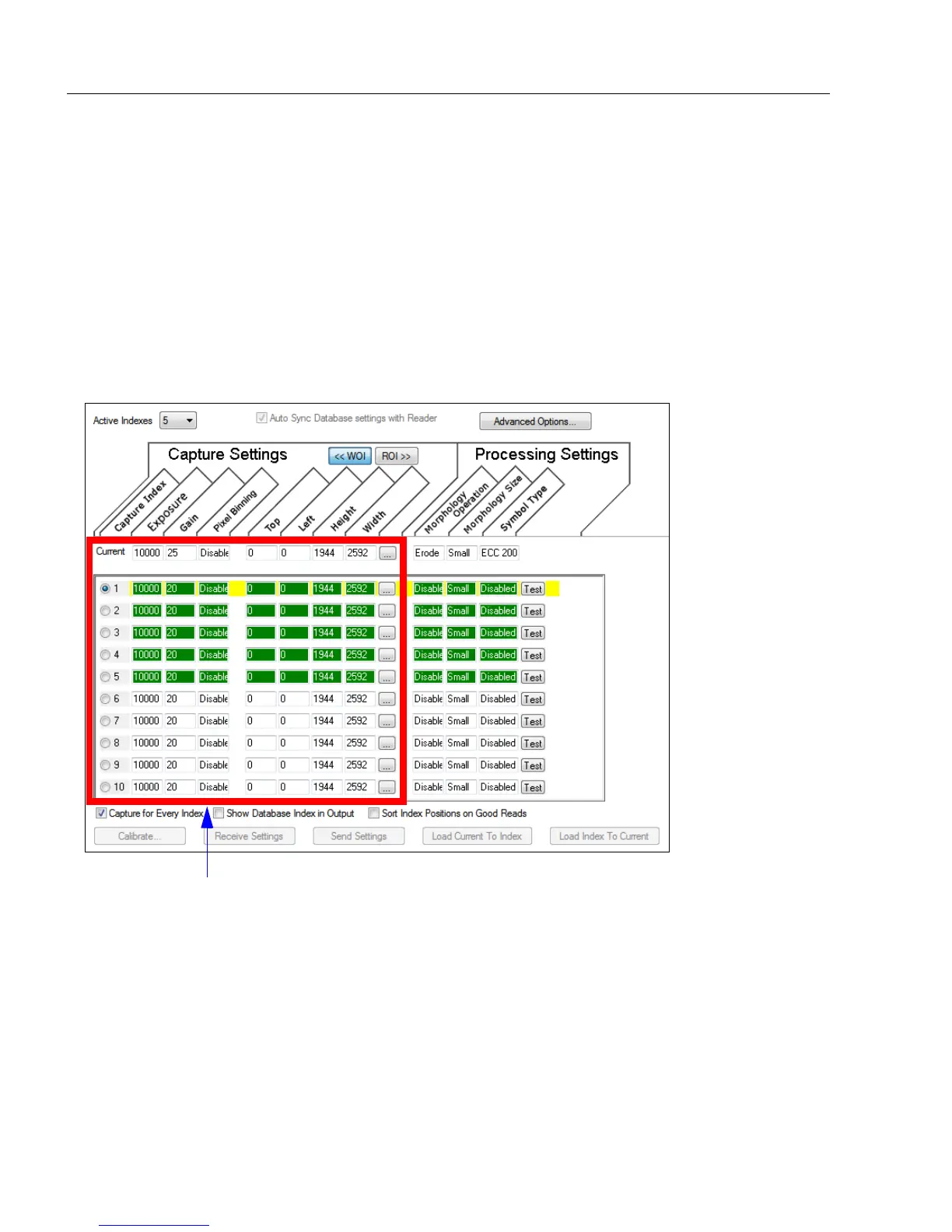

Camera settings (Capture Index, Exposure, Gain, Pixel Binning) located
in the left half of the highlighted area.
Image capture dimensions located in the right half of the highlighted area.
