MicroHAWK Engine Integration Guide A-5

Appendices

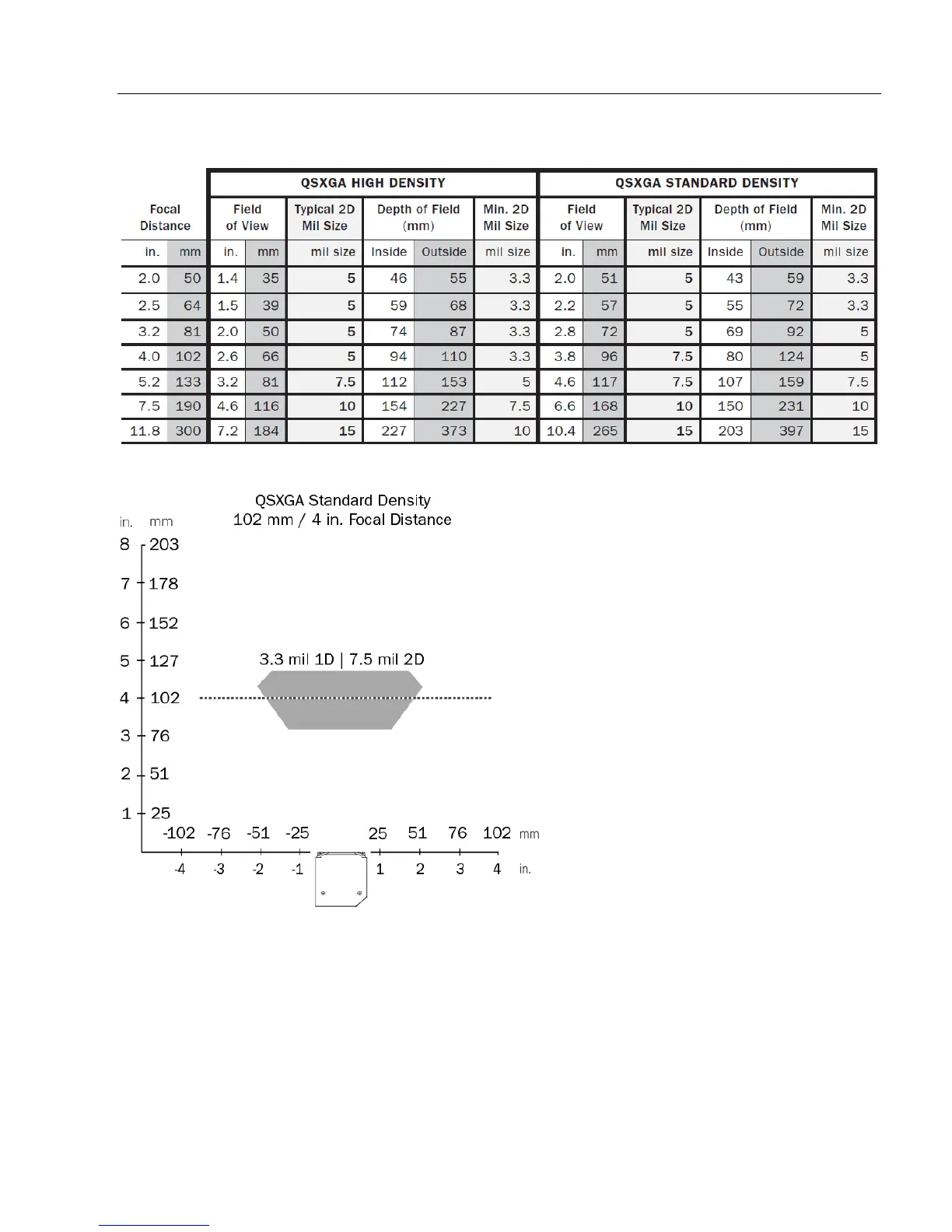

QSXGA Sensor Read Ranges

Example Read Range Diagram

Note: Minimum 1D element is typically 1/2 the size of minimum 2D element. Example: 10 mil 2D = 5 mil 1D.
