8-4
8-1 Basic Parameters
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
8
Parameters Details
Set the electronic gear function.
The electronic gear can be used for the following:
• To set any value for the motor rotation and travel distance per input command.
Refer to "6-6 Electronic Gear Function (P.6-19)".

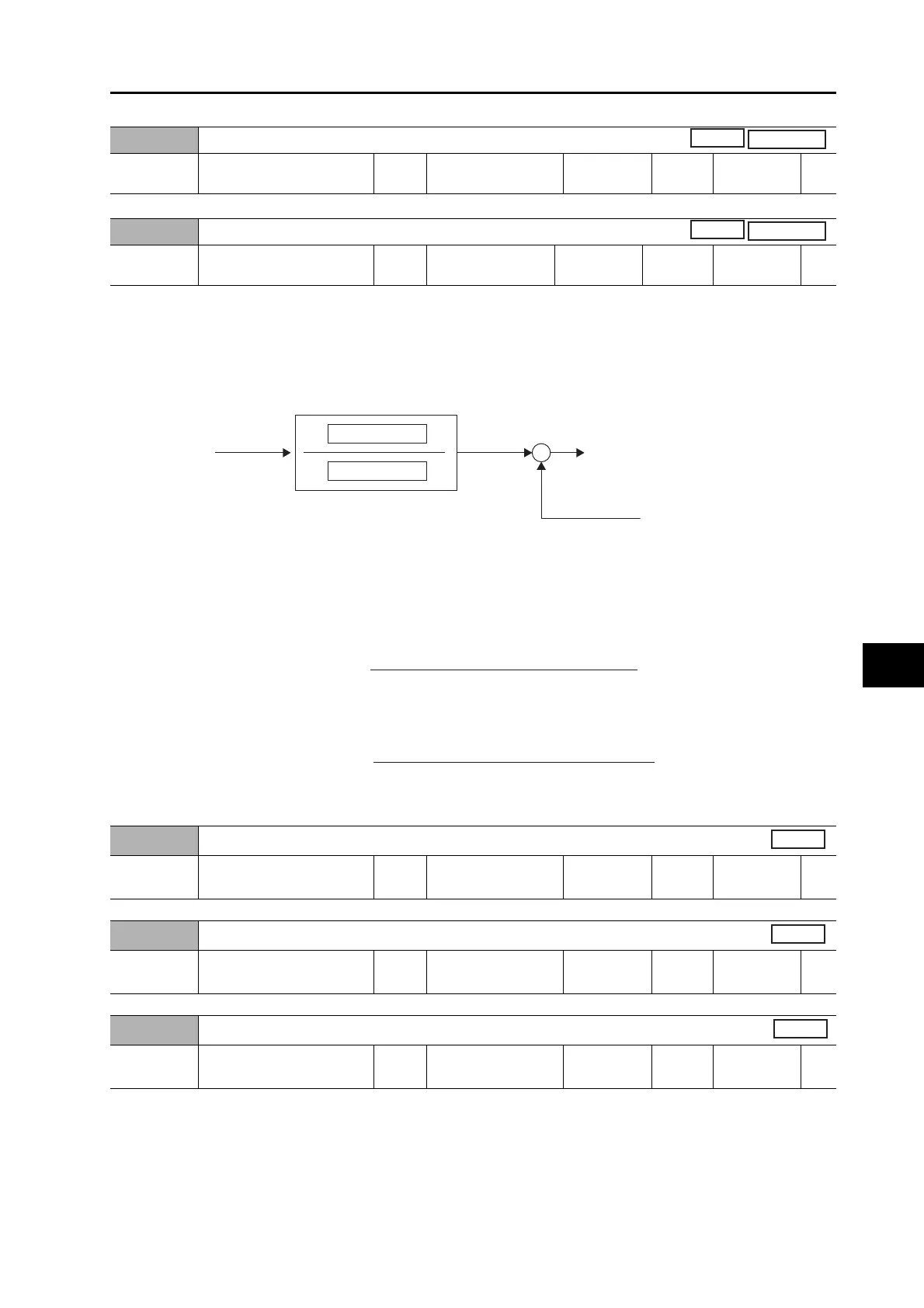

Electronic Gear Block Diagram:
The electronic gear ratio is set using the following equations.
If the Numerator = 0, the Numerator is automatically set to the encoder resolution. The number of
command input per rotation can be set by the Pn010.
If Numerator 0:
Set the limit values for the motor output torques (Pn013: No.1, Pn522: No.2).
Refer to the Torque Limit Selection (Pn521) for the torque limit selection.
During torque control, it limits the maximum torque in forward and reverse directions. The settings
on the Torque Limit Selection (Pn521) and the No.2 Torque Limit (Pn522) are ignored.
Set the value in units of 1% of the rated torque (100%).
E.g. When the maximum torque is limited to 150%.
Pn009
Electronic Gear Ratio Numerator
Setting
range
0 to 1073741824 Unit
Default
setting
1
Data
attribute
C
Pn010
Electronic Gear Ratio Denominator
Setting
range
1 to 1073741824 Unit
Default
setting
1
Data
attribute
C
Position
Full closing
Command
input
Internal
command
F
f
+
−
(resolution)
Feedback
pulse
To error
counter
Denominator (Pn010)
Numerator (Pn009)
Encoder resolution
Electronic Gear Ratio Denominator (Pn010)
Electronic gear ratio=
Electronic Gear Ratio Numerator (Pn009)
Electronic Gear Ratio Denominator (Pn010)
Electronic gear ratio=
Pn011
Unused
Setting
range
Unit
Default
setting
Data
attribute
Pn012
Unused
Setting
range
Unit
Default
setting
Data
attribute
Pn013
No. 1 Torque Limit
Setting
range
0 to 500 Unit %
Default
setting
500
Data
attribute
B
All
