n074 Pulse Train Frequency
Reference Gain
Register 014A
Hex
Changes during
operation
Yes
Setting
range
--255 to 255 Unit of
setting
1% Default setting 100
n075 Pulse Train Frequency
Reference Bias
Register 014B
Hex
Changes during
operation
Yes
Setting
range
--100 to 100 Unit of
setting
1% Default setting 0

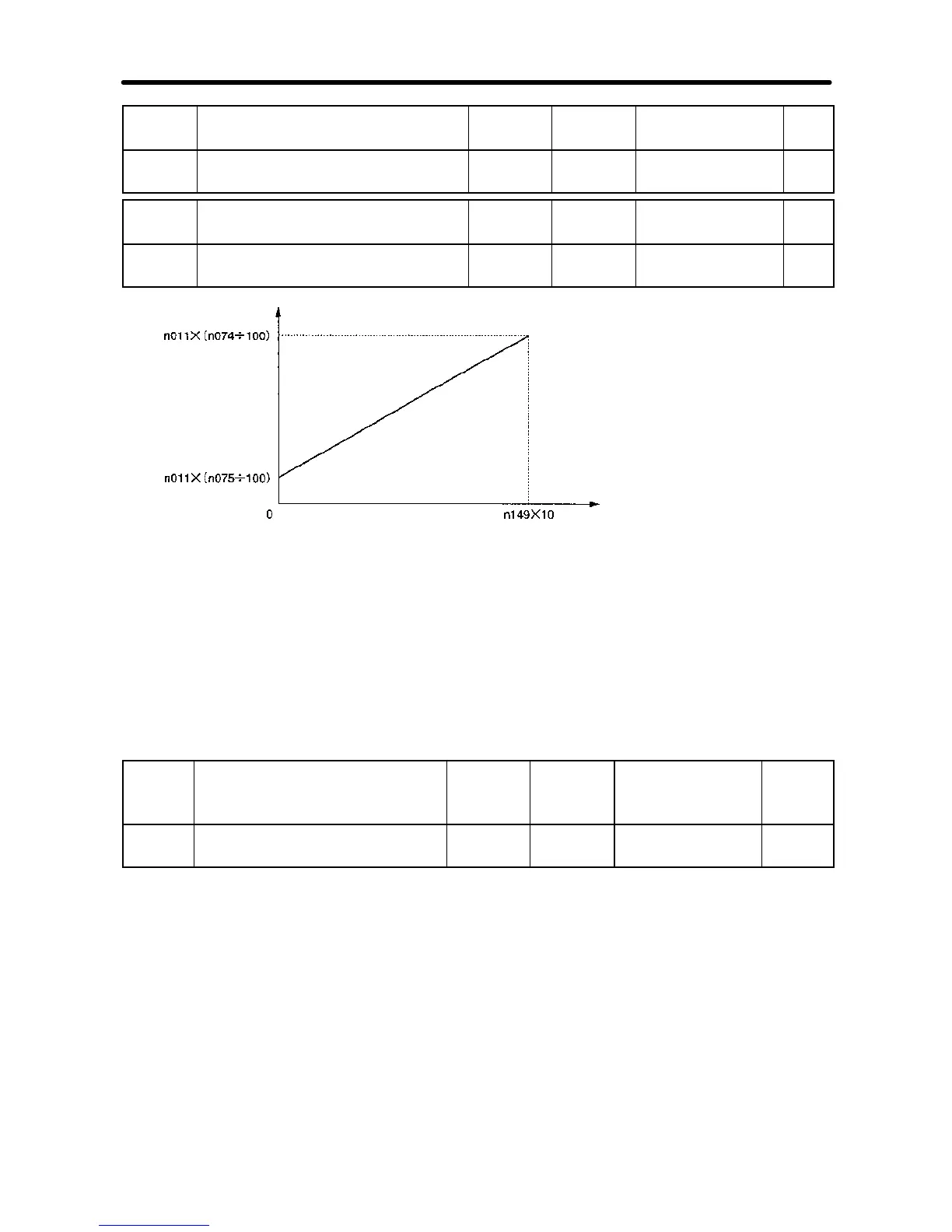

Frequency
reference (Hz)
Pulse train input frequency (Hz)
n011: Maximum frequency
H Pulse Train Frequency Reference Input Filter Constant (n076)
· Thisparametercanbeusedtosetaprimary-delaydigitalfilterforpulsetrainfrequency
reference input.
· ThisparametersettingiseffectiveforsmoothoperationoftheInverterifthepulsetrain
input signal changes too rapidly or the signal is interfered with by noise.
· The larger the set value is, the lower the response will be.
n076 Pulse Train Frequency
Reference Input Filter
Constant
Register 014C
Hex
Changes during
operation
No
Setting
range
0.00 to 2.00 Unit of
setting
0.01 s Default setting 0.10
