2-1-3 Removing and Mounting the Covers
To mount the Inverter, it is necessary to remove the front cover, terminal
cover (unless the Inverter is a 200-V model), and the Digital Operator. To
wire the Inverter, it is necessary to remove the front cover, terminal cover
(unlesstheInverterisa200-Vmodel),andbottomcover fromtheInverter.
Follow the instructions below to remove the covers from the Inverter.
To mount the covers, take the opposite steps.
H Removing the Front Cover
·Loosen the front cover mounting screws with a screwdriver.

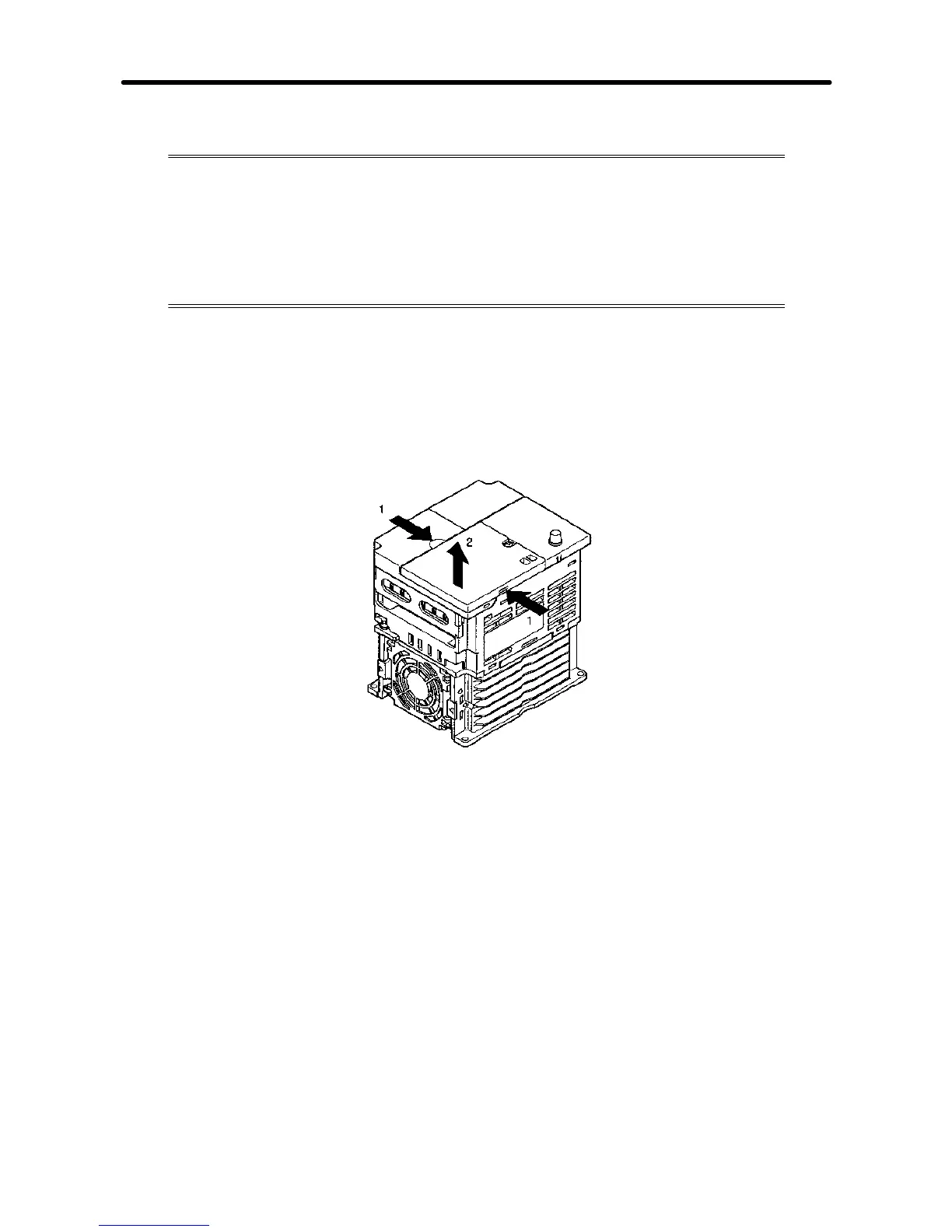

·Press the left and rightsidesof thefront cover in thearrow 1 directions and lift thebot-
tom of the cover in the arrow 2 direction to remove the front cover as shown in the fol-
lowing illustration.
