Omron SYSDRIVE 3G3MV - Standard Connections

2-20

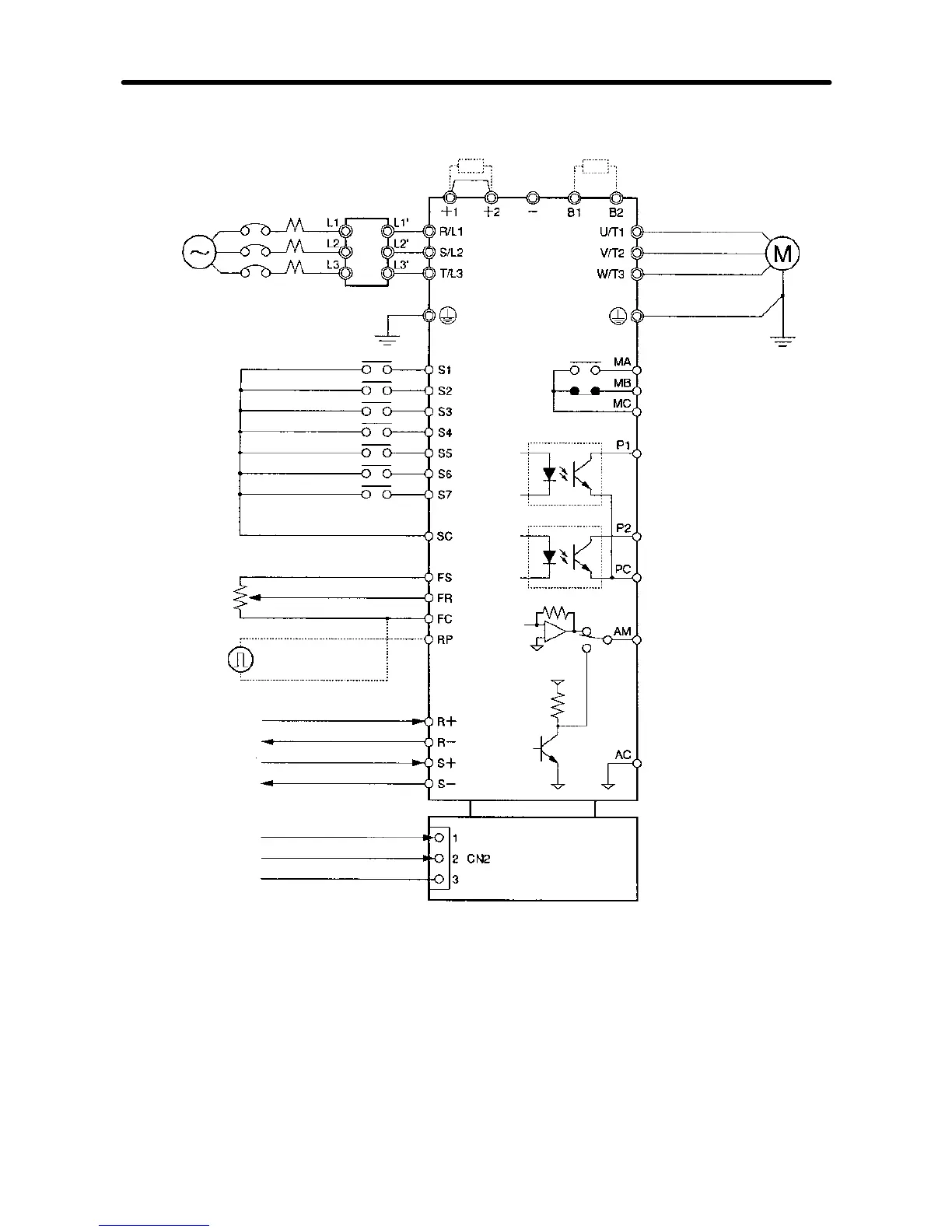

2-2-2 Standard Connections
DC reactor
(optional)
Noise Filter
3-phase 200/400 VAC
Single-phase 200 VAC (see note)
Multi-function input 1
Sequence input common
Frequency reference power
supply 20 mA at +12 V
FREQUENCY
adjuster (2kW
1/4 W min.)
Frequency reference input
Frequency reference common
Multi-function contact output
NO
NC
Common
Multi-function analog
output/Pulse monitor
output
Multi-function analog output
common
Braking Resistor
(optional)
Multi-function input 2
Multi-function input 3
Multi-function input 4
Multi-function input 5
Multi-function input 6
Multi-function input 7
Pulse
generator
Pulse train input
RS-422
communications
(RS-485 selection)
Multi-function analog voltage input (0--10V)
Multi-function analog current input (4--20mA)
Analog input common
Connector
Digital Operator
Multi-function
photocoupler output 1
Multi-function
photocoupler output 2
Multi-function
photocoupler output
common
3G3MV--PCN--CN2 cable can be used for
multi--function analog input
(rear side)
Note Connect single-phase 200 VAC to terminals R/L1 and S/L2 of the 3G3MV-ABj.
Design Chapter 2
