Omron ZEN User Manual

77

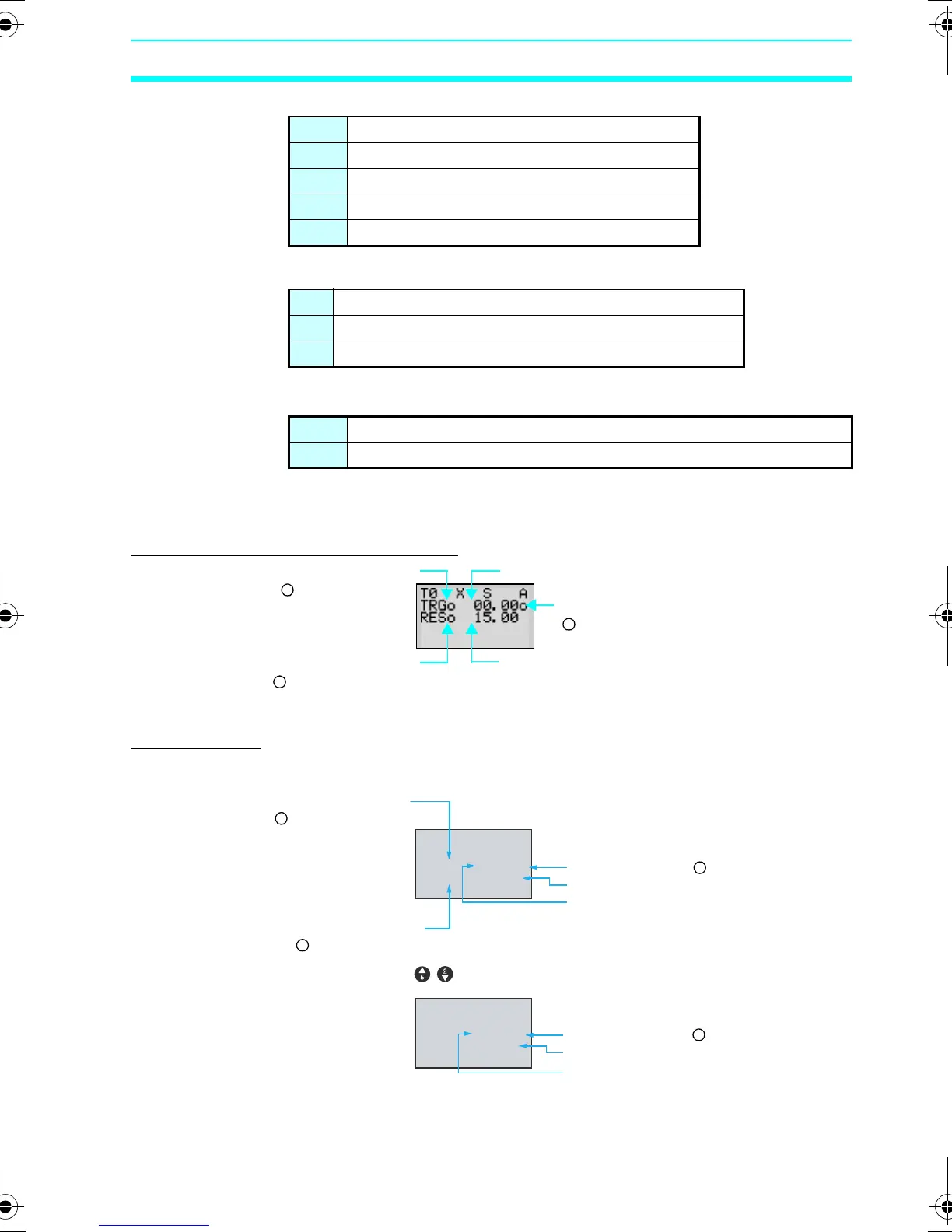

Using Timers (T) and Holding Timers (#) Section 3-6
Timer Types
Time Units and Settings
Monitor Enabled or Disabled
3-6-3 Parameter Monitor Screen Display
All Timers Except Twin Timers
Twin Timers
X ON delay
■ OFF delay
O One-shot pulse
F Flashing pulse
W Twin
S 00.01 to 99.99 s (in 0.01-s units)
M:S 00 min 01 s to 99 min 59 s (in minutes and seconds)
H:M 00 h 01 m to 99 h 59 m (in hours and minutes)
A Operating parameters can be monitored and settings changed.
D Operating parameters cannot be monitored nor settings changed.
Trigger input status
( : OFF/● : ON)
Reset input status
(: OFF/●: ON)
Timer present value
Timer bit status
(: OFF/●: ON)
Timer setting
RUN
TO W M:S A
ON-TIMER
TRGo 00.00o
RESo 02.10
TO W H:M A
OFF-TIMER
TRGo 00.00o
RESo 01.13
▲ ▼
▲ ▼
to switch the display.
Trigger input status
(: OFF/●: ON)
Reset input status
( : OFF/● : ON)
ON timer present value
Timer bit status ( : OFF/● : ON)
ON timer setting
OFF timer present value
Timer bit status ( : OFF/● : ON)
OFF timer setting
Z211-E1-03.book Page 77 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
