Preparations for Operation Section 1-6
1-6 Preparations for Operation

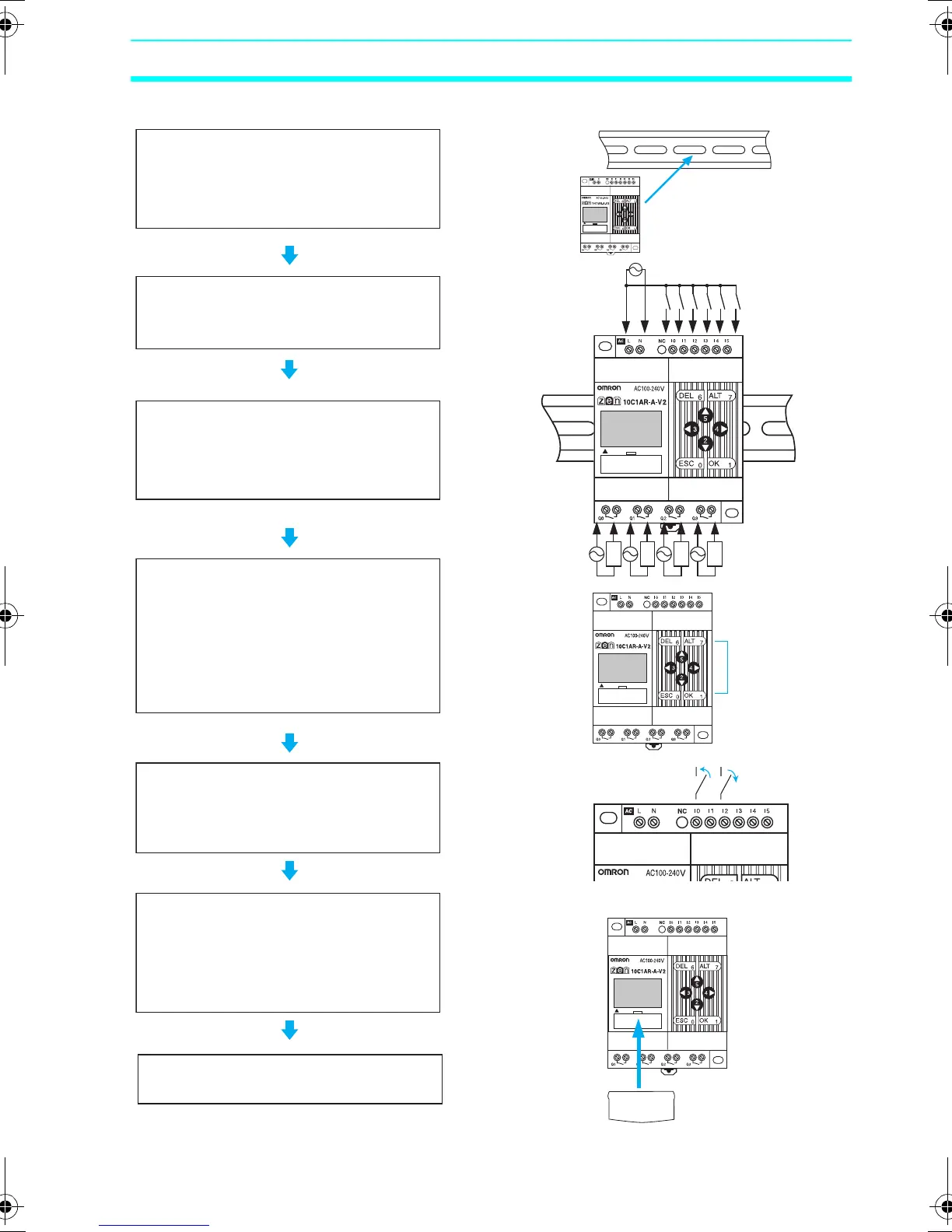

Mount ZEN to Control Panels
The ZEN can be mounted to either a
DIN Track or directly onto the surface
of the control panel. Refer to page 36.
Connect Power Supply, Input, and Output
Devices
Wire the ZEN to the power supply, input,
and output devices. Refer to page 38.
Make Initial Settings
Make the settings required before
programming, such as date, time, and
display language. Refer to pages 57
and 58.
Write Program
Input the ladder program, including
timers, counters, and other parameters.
Use the ZEN Support Software when
using the LED-type CPU Units (without
LCD.) Refer to page 60.
Check Program Execution
Perform trial operation before starting
actual operation and check that the
system is operating correctly. Refer to
page 69.
Save Program
Debugged programs and all parameters
should be saved to a Memory Cassette
or ZEN Support Software to prevent
loss of the data. Refer to page 111.
Actual Operation
DIN Track
Inputs
Power
supply
Output
Load Load Load Load
Operation
buttons
ON OFF
ZEN-ME01
Memory Cassette
