51
Wiring Section 2-2

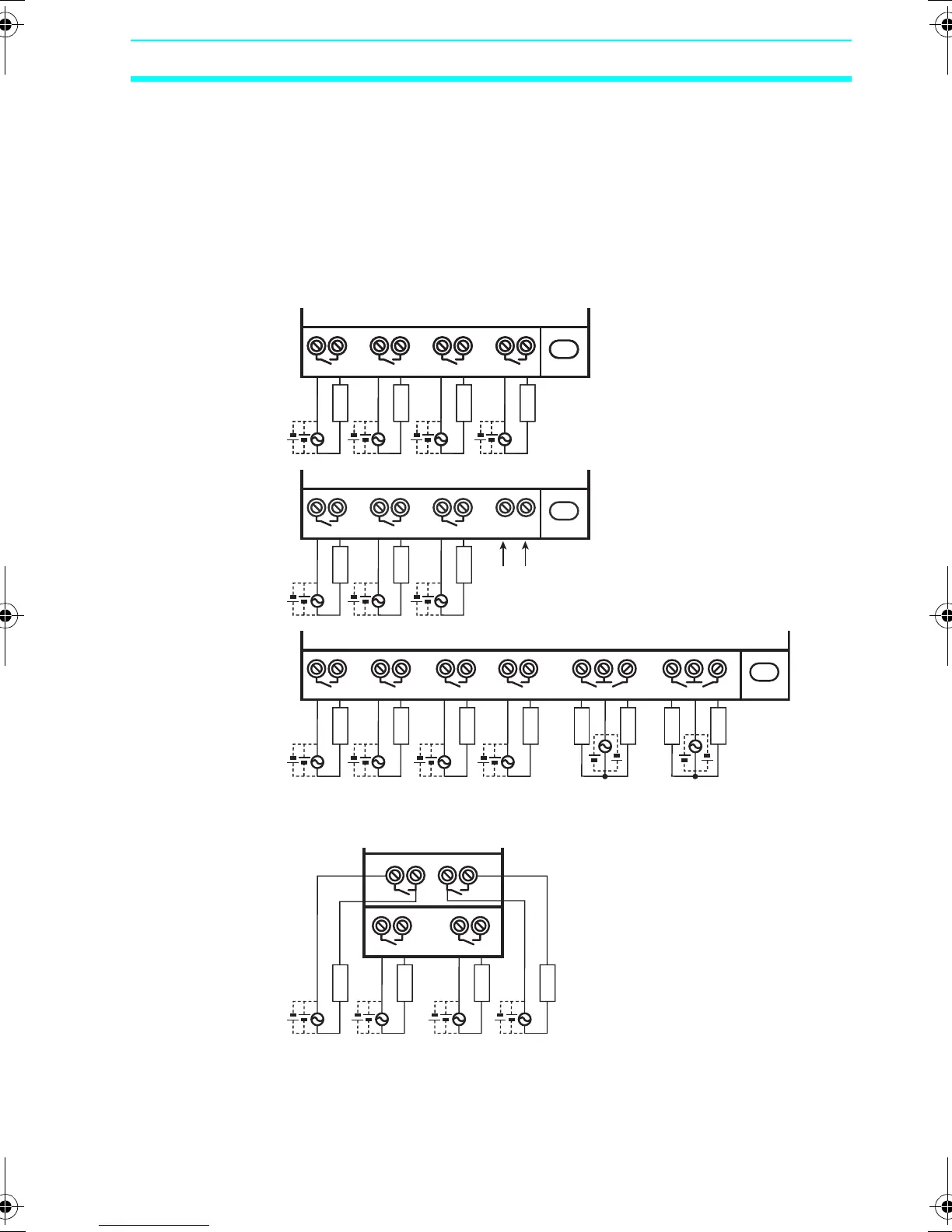

2-2-6 Wiring Output Circuits
(1) Relay Output Type
For CPU Units with 10 I/O points and Expansion I/O Units, all 4
outputs in the relay output circuits have independent contacts. For
CPU Units with 20 I/O points, outputs Q0 to Q3 in the relay output
circuits have independent contacts and outputs Q4 to Q7 have 2
points per common.
There are no restrictions on polarity.
Q0 Q1 Q2 Q3
Load
Load
Load
Load
CPU Unit with 10 I/O points
B(+) A()
Q0 Q1 Q2
RS-485
Load
Load
Load
Communications-type CPU Unit
Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7
CPU Unit with 20 I/O points
Load
Load
Load
Load
Load
Load
Load
Load
OUT
0
OUT
1
OUT
2
OUT
3
Load
Load
Load
Load
Expansion I/O Unit
Z211-E1-03.book Page 51 Friday, November 21, 2008 10:38 AM
