Omron ZEN User Manual

61
Creating Ladder Programs Section 3-3

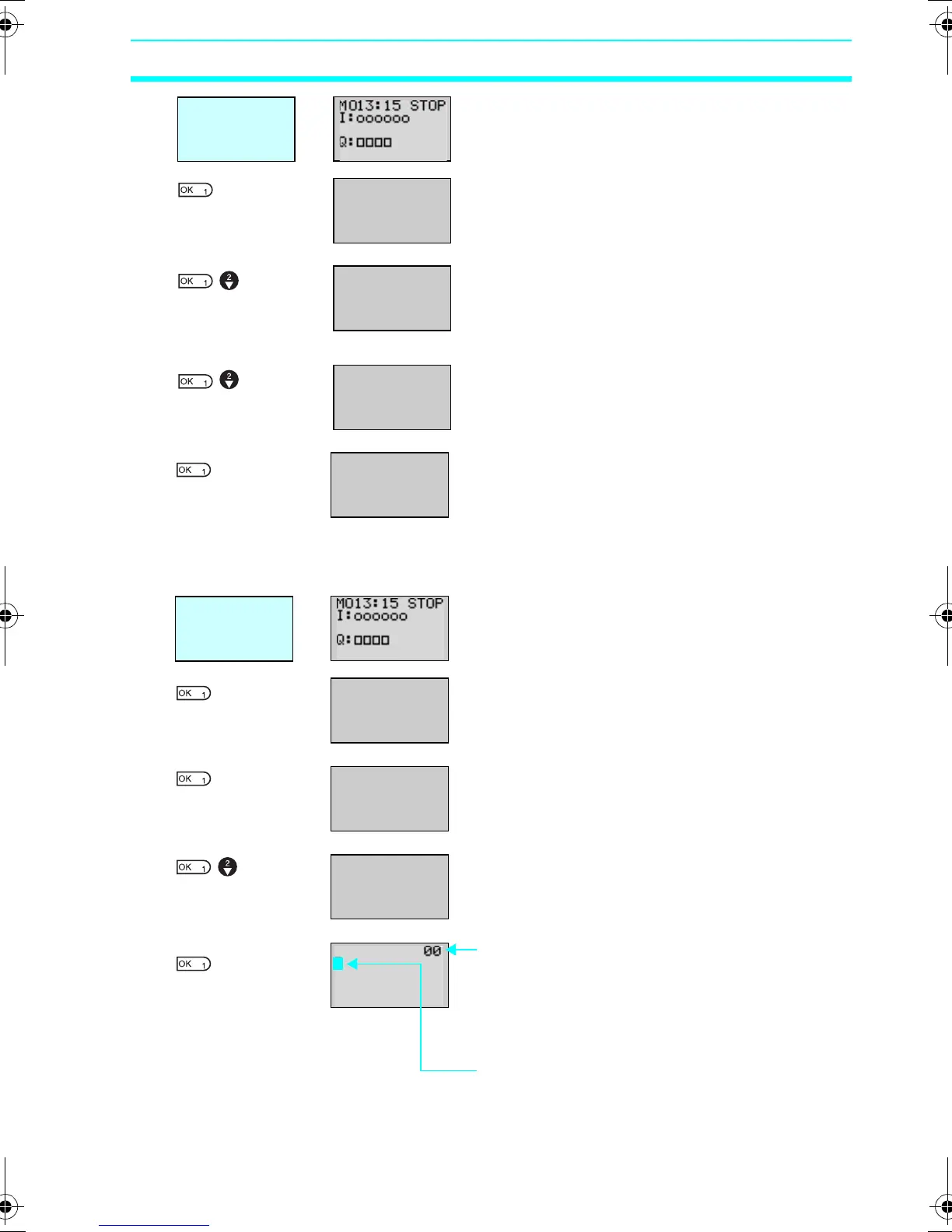

Press the OK Button to switch to the Menu
Screen and select PROGRAM.
Select DELETE PROG.
If a password has been set, a Password
Input Screen will be displayed. Input the
password.
Press the OK Button to display a
confirmation message, and then select YES.
When the Delete Program operation has
been completed, the display will return to the
original screen.
3-3-3 Writing Ladder Programs
Press the OK Button to switch to the Menu
Screen and select PROGRAM.
Select EDIT PROG.
Press the OK Button to display a
confirmation message, and then select YES.
STOP mode
display
PROGRAM
RUN
PARAMETER
SET CLOCK
▼
EDIT PROG
DELETE PROG
DELETE PROG
DELETE?
NO
YES
EDIT PROG
DELETE PROG
STOP mode
display
PROGRAM
RUN
PARAMETER
SET CLOCK
▼
EDIT PROG
DELETE PROG
EDIT
EDIT?
NO
YES
▲ ▼
Press the OK Button to switch to the Ladder
Program Edit Screen.
Indicates the line number in the ladder
program at the cursor position (line 0 in this
example.)
Cursor flashing in a reversed state.
▼
Z211-E1-03.book Page 61 Friday, November 21, 2008 10:38 AM
