Omron ZEN User Manual

89

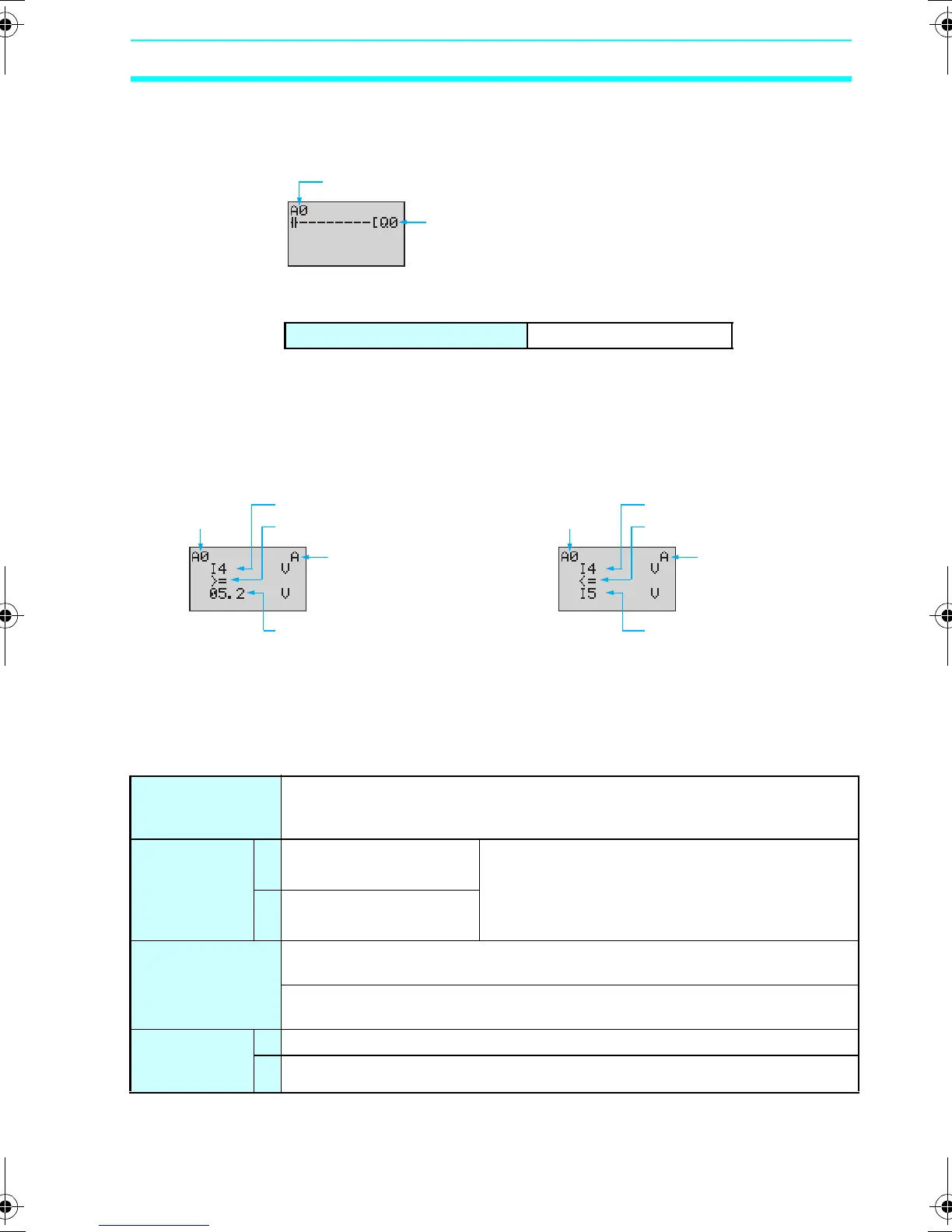

Analog Inputs (Analog Comparators (A)) Section 3-10
3-10-1Settings in the Ladder Program Edit Screen
The analog comparator input is written in the Ladder Program Edit
Screen. Settings are made in the Parameter Settings Screen.
3-10-2 Settings in the Parameter Settings Screen
Refer to page 25 for parameter setting methods.
Comparison data 1 determines the comparison pattern. When
comparing to a constant, the constant is set for comparison data 2
next. The operator is specified last.
Analog comparator address A0 to A3 (4 comparators)
Analog comparator bit
Comparison result
output
• Comparing Analog Inputs
and Constants
(When I4 (Ia) ≥ constant)
Analog
comparator
address
Comparison data 1
Operator
Monitor enabled/
disabled
Comparison data 2
• Comparing Analog Inputs
(When I4 (Ia) ≤ I5 (Ib))
Analog
comparator
address
Comparison data 1
Operator
Monitor enabled/
disabled
Comparison data 2
Analog
comparator
address
A0 to A3 (4 comparators)
Comparison
data
1 I4 (Ia): Analog input 1
I5 (Ib): Analog input 2
Comparison Patterns
• Size comparison between I4 (Ia) and I5 (Ib).
• Size comparison between I4 (Ia) and constant.
• Size comparison between I5 (Ib) and constant.
2 I5 (Ib): Analog input 2
Constant: 00.0 to 10.5
Operator >=: Analog comparator bit turns ON when comparison data 1 ≥ comparison
data 2.
<=: Analog comparator bit turns ON when comparison data 1
≤ comparison
data 2.
Monitor
enabled/
disabled
A Operating parameters can be monitored and settings changed.
D Operating parameters cannot be monitored or settings changed.
Z211-E1-03.book Page 89 Friday, November 21, 2008 10:38 AM
