94

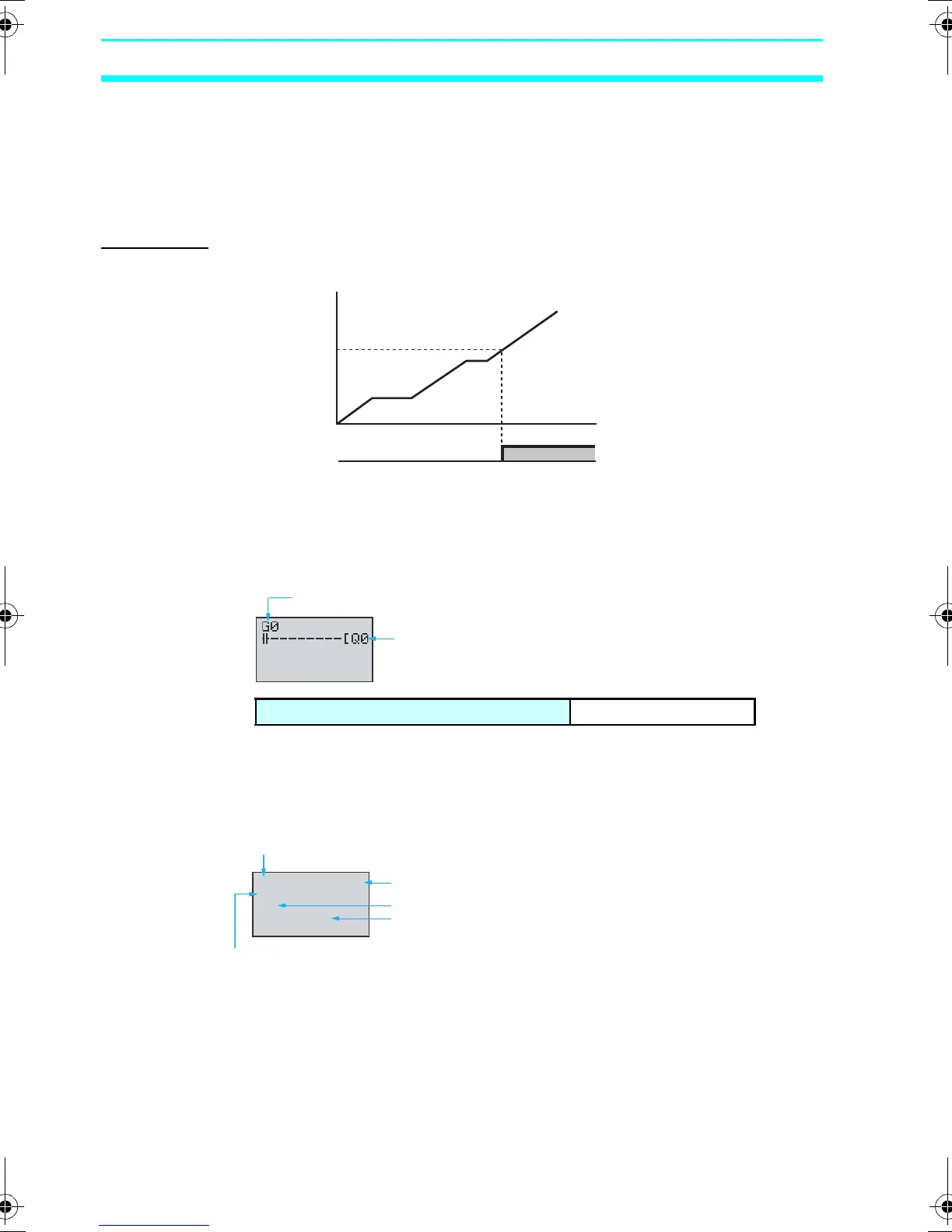

Comparing the 8-Digit Counter (F) Present Value Using 8-Digit Comparators (G)
Section 3-12
3-12 Comparing the 8-Digit Counter (F) Present
Value Using 8-Digit Comparators (G)
The present value of the 8-digit counter (F) can be compared to a
constant.
Operation
Example for 8-Digit Counter 12000000
3-12-1 Settings in the Ladder Program Edit Screen
Comparator inputs are written in the Ladder Program Edit Screen.
Settings are made in the Parameter Settings Screen.
3-12-2 Settings in the Parameter Settings Screen
F0 present value
8-Digit
Comparator bit
12000000
8-Digit comparator addresses G0 to G3 (4 bits)
Comparator bit
Comparison result output
G0 A
F0
>=
12000000
Example for 8-Digit Counter 12000000
8-Digit comparator address
Monitor enabled/disabled
Operator
Comparison data
Comparison item
Z211-E1-03.book Page 94 Friday, November 21, 2008 10:38 AM
