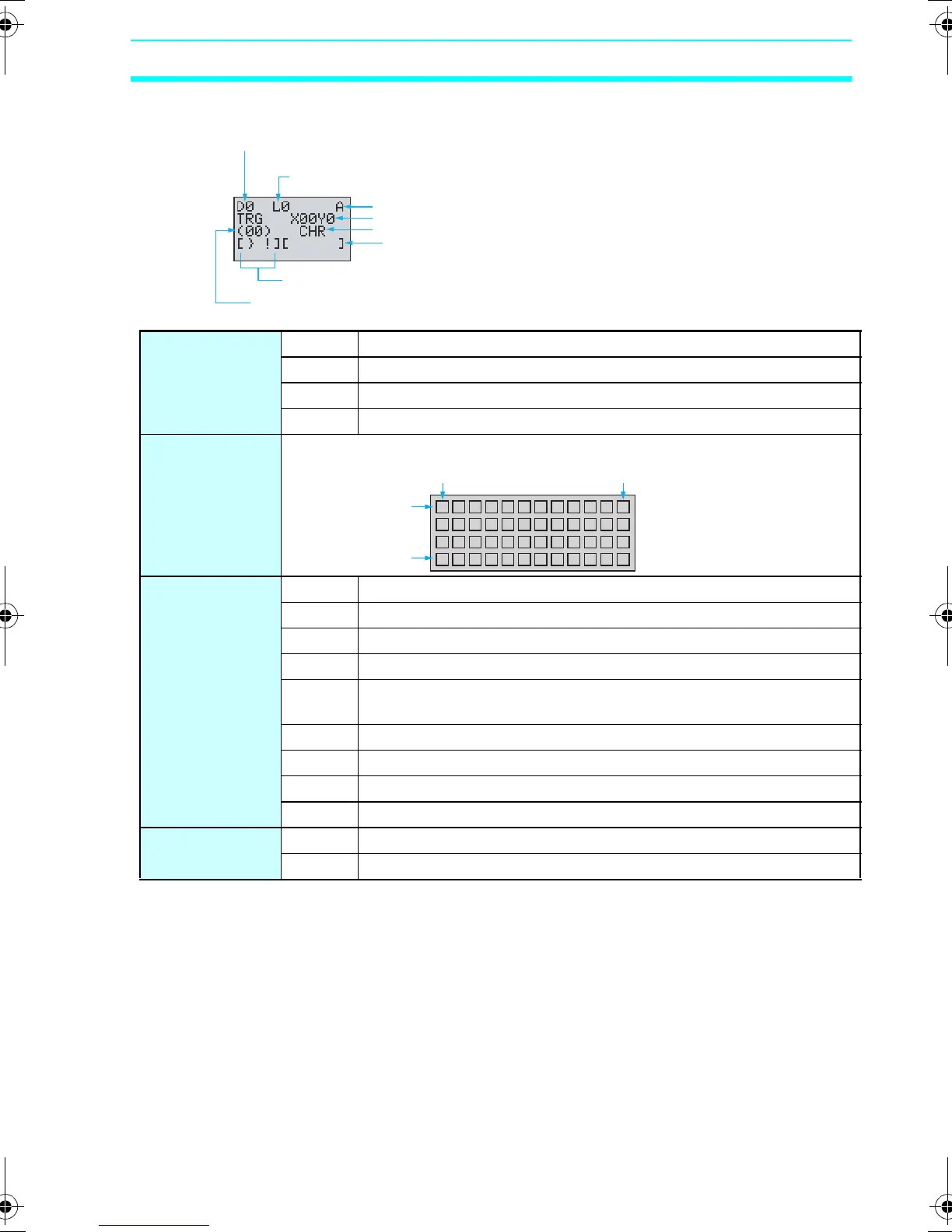

Displaying Messages (Display Bits (D)) Section 3-13
3-13-2 Settings in the Parameter Settings Screen
Note 1. When L0 or L1 are selected to disable the display function screen,
the display function screen will not be displayed automatically.
Use operation buttons to move to the display function screen.
2. When L2 or L 3 are selected (switching to display function
screen), the ZEN switches to the display function screen if the
display function is enabled and the specified data is displayed.
The Main Screen will no longer be displayed. To display the Main
Screen, change the CPU Unit to STOP mode.
Backlight/display
function screen
switching
L0 No backlight; No switching to display function screen (See note 1.)
L1 Backlight; No switching to display function screen (See note 1.)
L2 No backlight; Switching to display function screen (See note 2.)
L3 Backlight; Switching to display function screen (See note 2.)
Display start
position
X (digit): 00 to 11
Y (line): 0 to 3
Display object CHR Characters (12 max.: Alphanumeric characters and symbols)
DAT Month/day (5 digits: @@/@@)
DAT1 Day/month (5 digits: @@/@@)
CLK Hour/minutes (5 digits: @@:@@)
I4, I5
(Ia, Ib)
Analog conversion (4 digits: @@.@)
T0 to Tf Timer present value (5 digits: @@.@@)
#0 to #7 Holding timer present value (5 digits: @@.@@)
C0 to Cf Counter present value (4 digits: @@@@)
F0 8-Digit counter present value (8 digits: @@@@@@@@)
Monitor enabled/
disabled
A Operating parameters can be monitored.
D Operating parameters cannot be monitored.
Backlight/display function screen switching
Monitor enabled/disabled
Display start position
Display object
Display character string
(Set when character string selected as display object.)
Display character string candidates
Character string cursor position
Display address
X00 to to X11
Y0
Y3
to
