Omron ZEN User Manual

93
Comparing Timer/Counter Present Values Using Comparators (P) Section 3-11

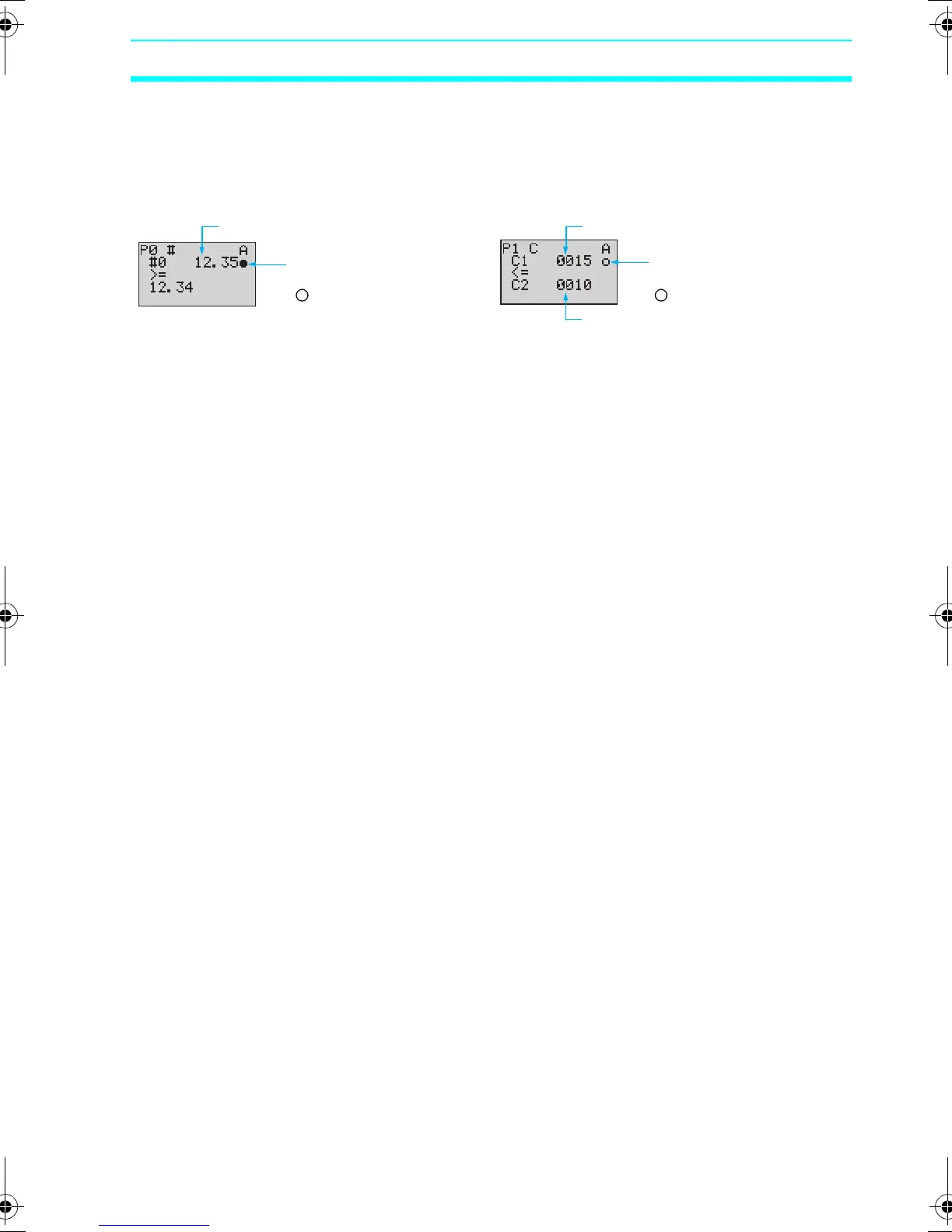

3-11-3 Parameter Monitor Screen Display
Note The time unit is determined as follows when timers or holding
timers have been specified under comparison type:
a) When a constant has been set to as comparison data 2, the
time unit is automatically aligned with the unit for comparison
data 1 timers or holding timers.
b) The time units are automatically aligned when the units are
different for comparison data 1 and 2 timers.
• Comparing Holding Timers and
Constants
(When Holding Timer #0 ≥ 12 min
34 s)
• Comparing Counters
(When counter 1 (C1) ≤ counter 2
(C2))
Holding timer 0 (#0) present value
Timer/counter comparator
bit status
( : OFF/● : ON)
Counter 1 (C1) present value
Timer/counter comparator
bit status
(: OFF/● : ON)
Counter 2 (C2) present value
RUN
RUN
Z211-E1-03.book Page 93 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
