Omron ZEN User Manual

20
Nomenclature and Basic Operation Section 1-3

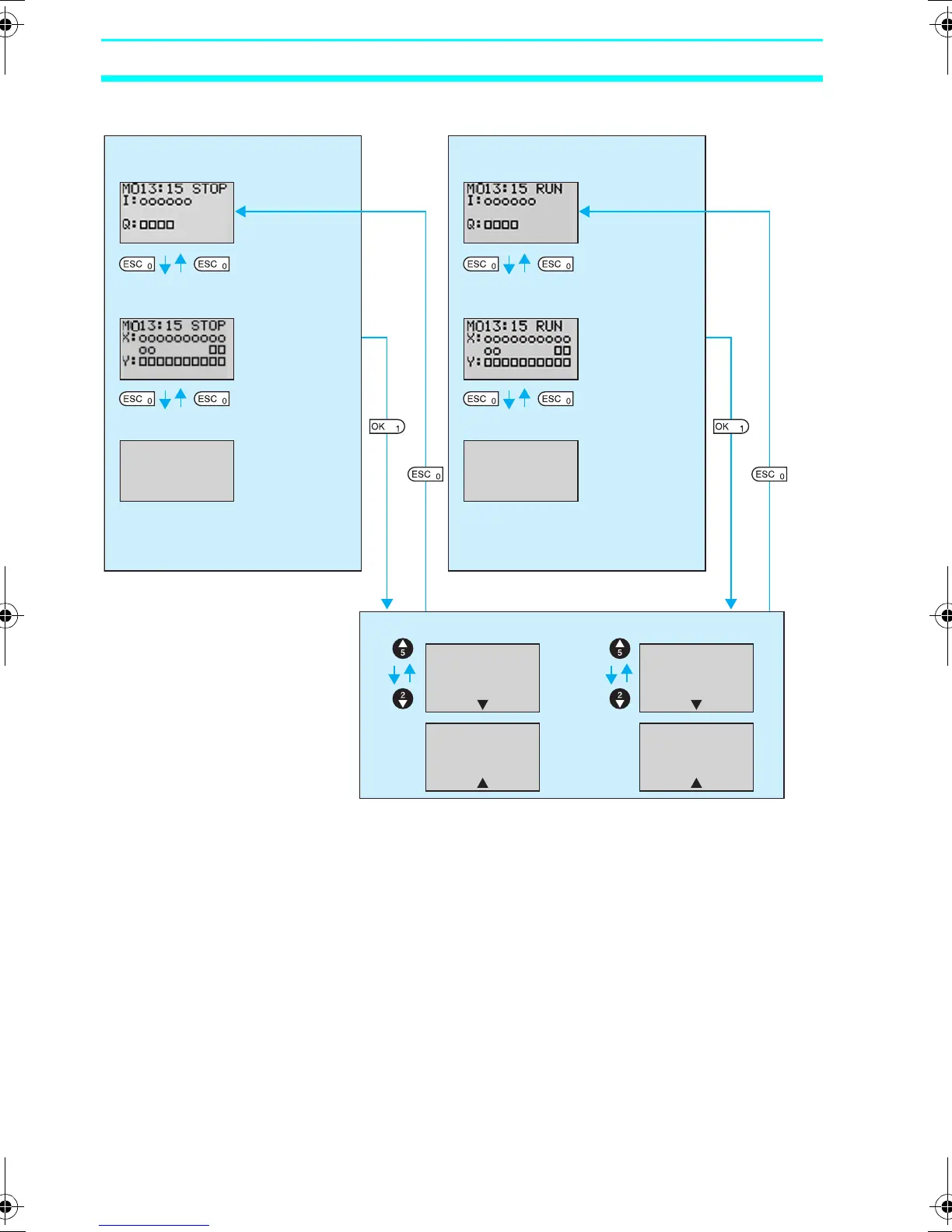

1-3-2 Screen Transitions
STOP Mode
When leaving RUN Mode
When Expansion I/O Unit
is connected.
Display Function Screen
Note: The display will be
blank if the display function is
not being used.
(User-
specified
message)
RUN Mode
When power is turned ON
When Expansion I/O Unit
is connected.
Display Function Screen
Note: The display will be
blank if the display function is
not being used.
(User-
specified
message)
STOP Mode
PROGRAM
RUN
PARAMETER
SET CLOCK
PARAMETER
SET CLOCK
LANGUAGE
OTHER
RUN Mode
MONITOR
STOP
PARAMETER
SET CLOCK
RUN
PARAMETER
SET CLOCK
LANGUAGE
OTHER
RUN
RUN
RUN
RUN
Z211-E1-03.book Page 20 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
