82

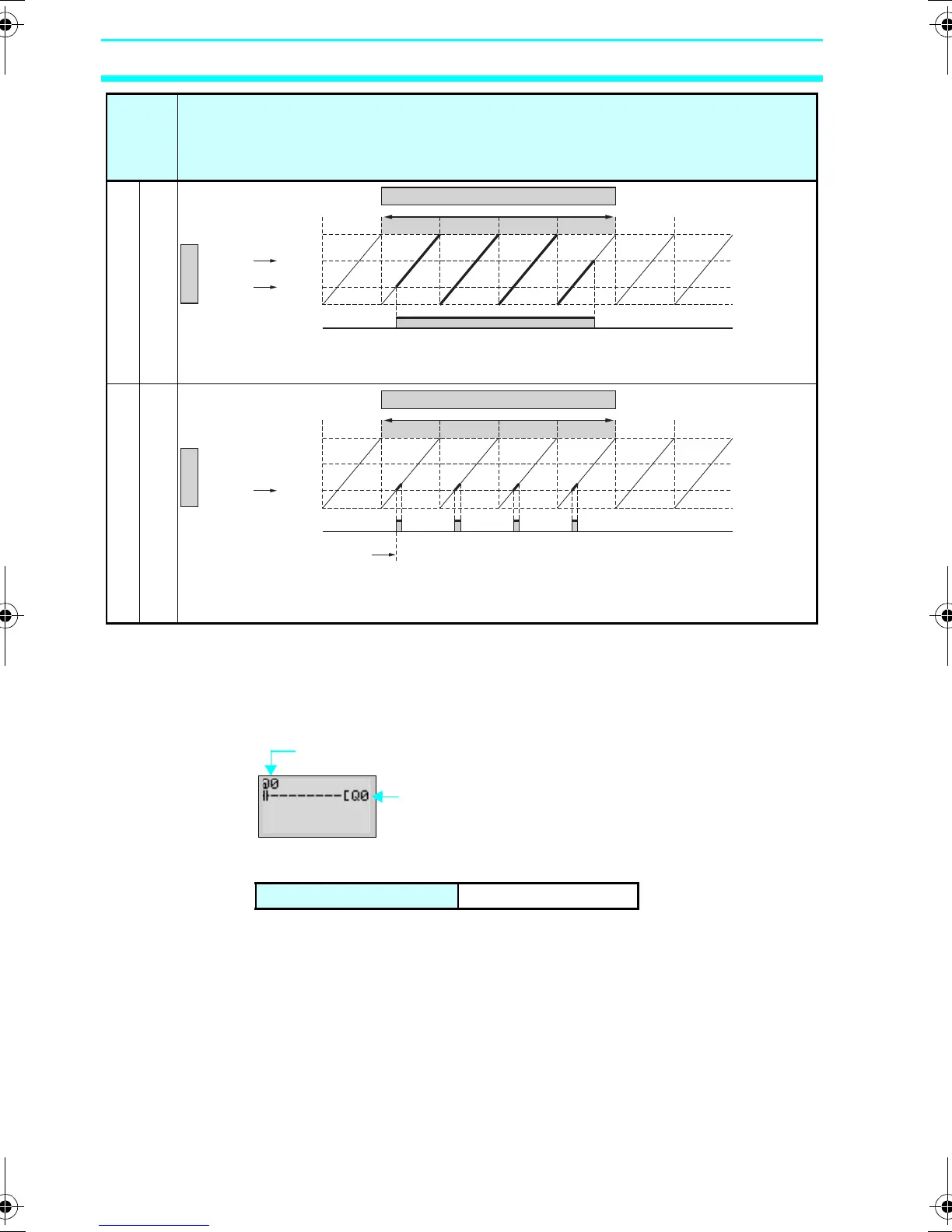

Using Weekly Timers (@) Section 3-8
3-8-1 Settings in the Ladder Program Edit Screen
Weekly timer inputs are written in the Ladder Program Edit Screen.
Settings are made in the Parameter Settings Screen.
D
Multiple-day operation
P
Pulse-output operation
Weekly
timer
opera-
tion
Operation
Mon
24:00
17:30
8:15
0:00
Stop time
Start time
Tues Wed
Date setting
Thurs Fri Sat Sun
Weekly timer bit
Time setting
In this example, the weekly timer turns ON from 8:15 on Tuesday
to 17:30 on Friday.
Mon
24:00
8:15
0:00
Start time
Tues Wed
Date setting
Thurs Fri Sat Sun
Weekly timer bit
Time setting
Operation time setting:
15 minutes, 30 seconds
In this example, the weekly timer turns ON for 15 minutes 30 seconds
from 8:15 every day from Tuesday to Friday.
Weekly timer addresses @0 to @f (16 timers)
Time up output
Weekly timer address
Z211-E1-03.book Page 82 Friday, November 21, 2008 10:38 AM
