Omron ZEN User Manual

79
Using Counters (C) and the 8-Digit Counter (F) Section 3-7

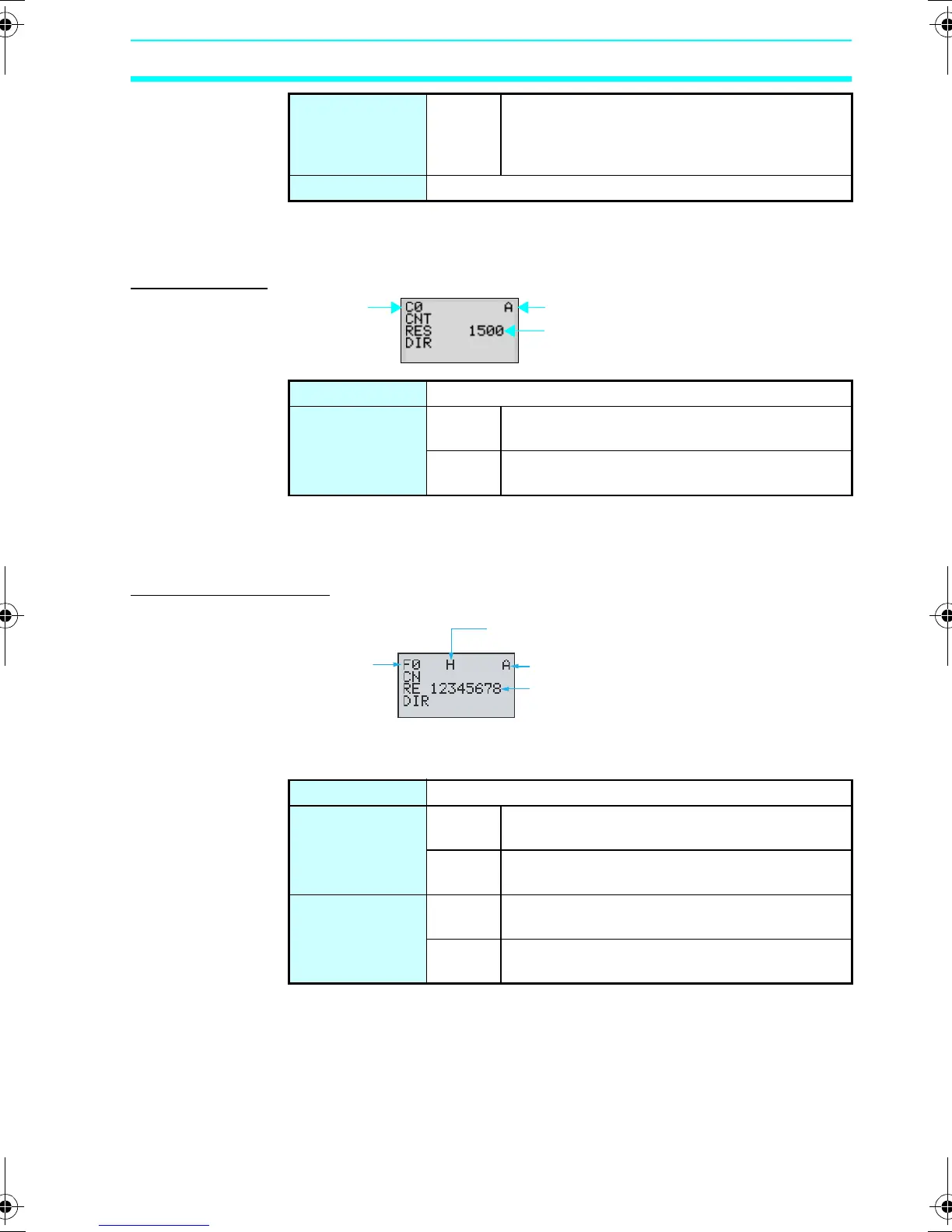

3-7-2 Settings in the Parameter Settings Screen
Counters (C)
The speed of the counter depends on whether a filter is used. Refer
to page 104.
8-Digit Counter (F)
Note Counting Speed
The maximum counting speed of the 8-digit counter is 150 Hz
regardless of whether an input filter is used. The maximum ladder
program capacity, however, may be less than 150 Hz. Calculate
the cycle time (refer to page 130) and confirm the maximum
Reset input R (RES) When the reset input turns ON, the present
value returns to 0 and the counter bit turns
OFF. Count inputs are not accepted while the
reset input is ON.
Count input Turns ON when the counter has counted out (PV ≥ SV)
Set value 0001 to 9999 (4 decimal digits) times
Monitor enabled/
disabled
A Operating parameters can be monitored and
settings changed.
D Operating parameters cannot be monitored or
settings changed.
Monitor enabled/disabled
Set value
Counter address
Set value 00000001 to 99999999 (4 decimal digits) times
Counter speed H High speed (150 Hz, see note.) (I0 for CPU
Units with DC power supplies only)
L Low speed (Depends on whether a filter is
used. Refer to page 104.)
Monitor enabled/
disabled
A Operating parameters can be monitored and
settings changed.
D Operating parameters cannot be monitored or
settings changed.
Monitor enabled/disabled
Set value
Counter address
Counter speed
Z211-E1-03.book Page 79 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
