Omron ZEN User Manual

52
Wiring Section 2-2
(2) Transistor Output Type
For CPU Units with 10 I/O points and Expansion I/O Units, all 4
outputs in the transistor output circuits have independent circuits. The
terminals of output have polarity given on the terminal block, but no
problem will result from reversing the connection positions of the
power supply and load.
For CPU Units with 20 I/O points, outputs Q0 to Q3 in the transistor
output circuits have independent circuits and outputs Q4 to Q7 have
2 points per common. The terminals of output Q0 to Q3 have polarity
given on the terminal block, but no problem will result from reversing
the connection positions of the power supply and load.
Precautions for Correct Use
• Do not exceed a cable length of 10 m when connecting transistor
outputs.

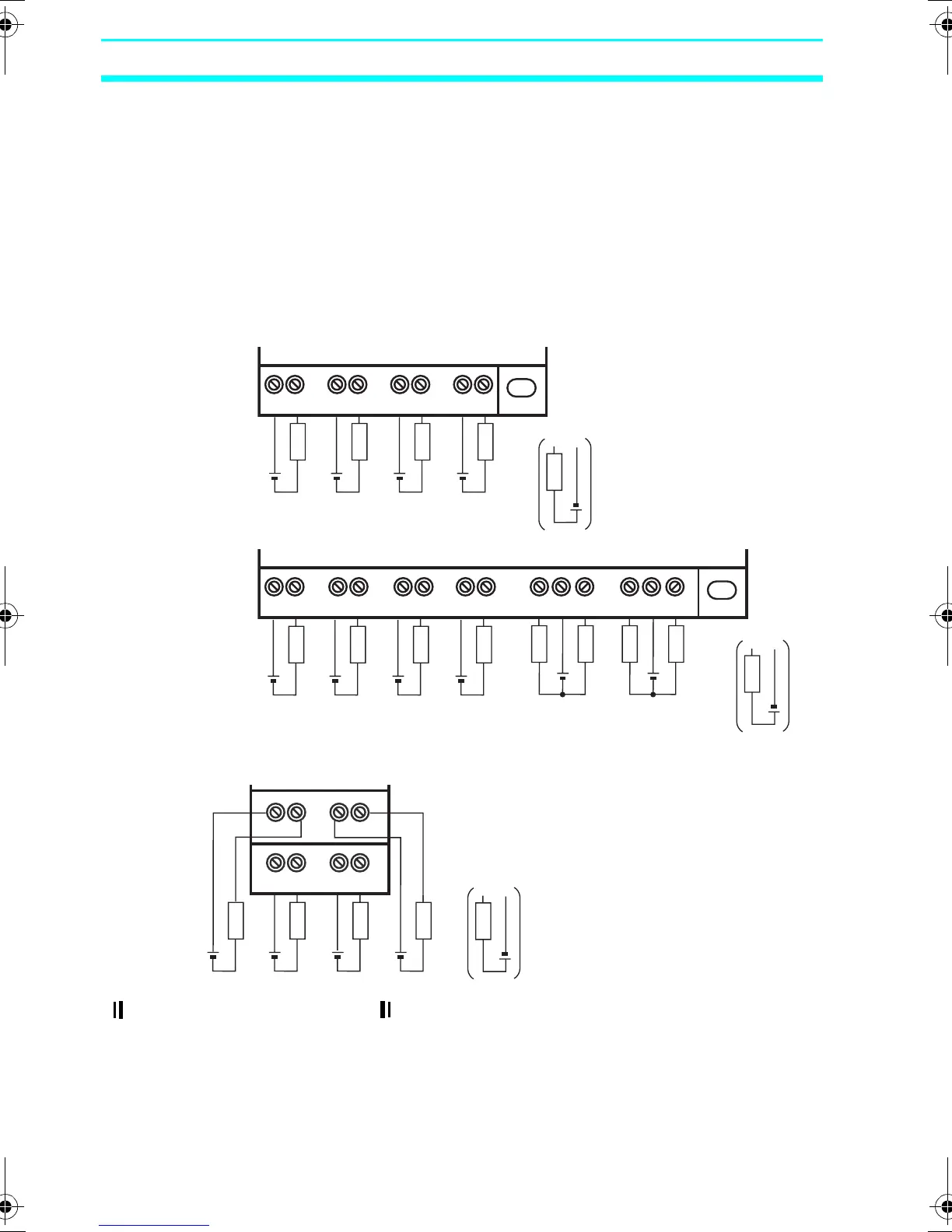

Q0
+
−
Q1 Q2 Q3
+
−
+
−
+
−
Q0 to Q3
CPU Unit with 10 I/O points
Load
Load Load
Load
Load
Q0 Q1 Q2 Q3
−
−
Q4 Q5 Q6 Q7
−
+
−
+
+
−
+
−
+
−
−
+
Q0 to Q3
CPU Unit with 20 I/O points
Load Load Load Load Load Load Load Load
Load
OUT2 OUT3
OUT0 OUT1
−
+
−
+
−
+
−
+
OUT0 to OUT3
Expansion I/O Unit
Load Load Load Load Load
Z211-E1-03.book Page 52 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
