Omron ZEN User Manual

112
Using Memory Cassettes Section 5-2

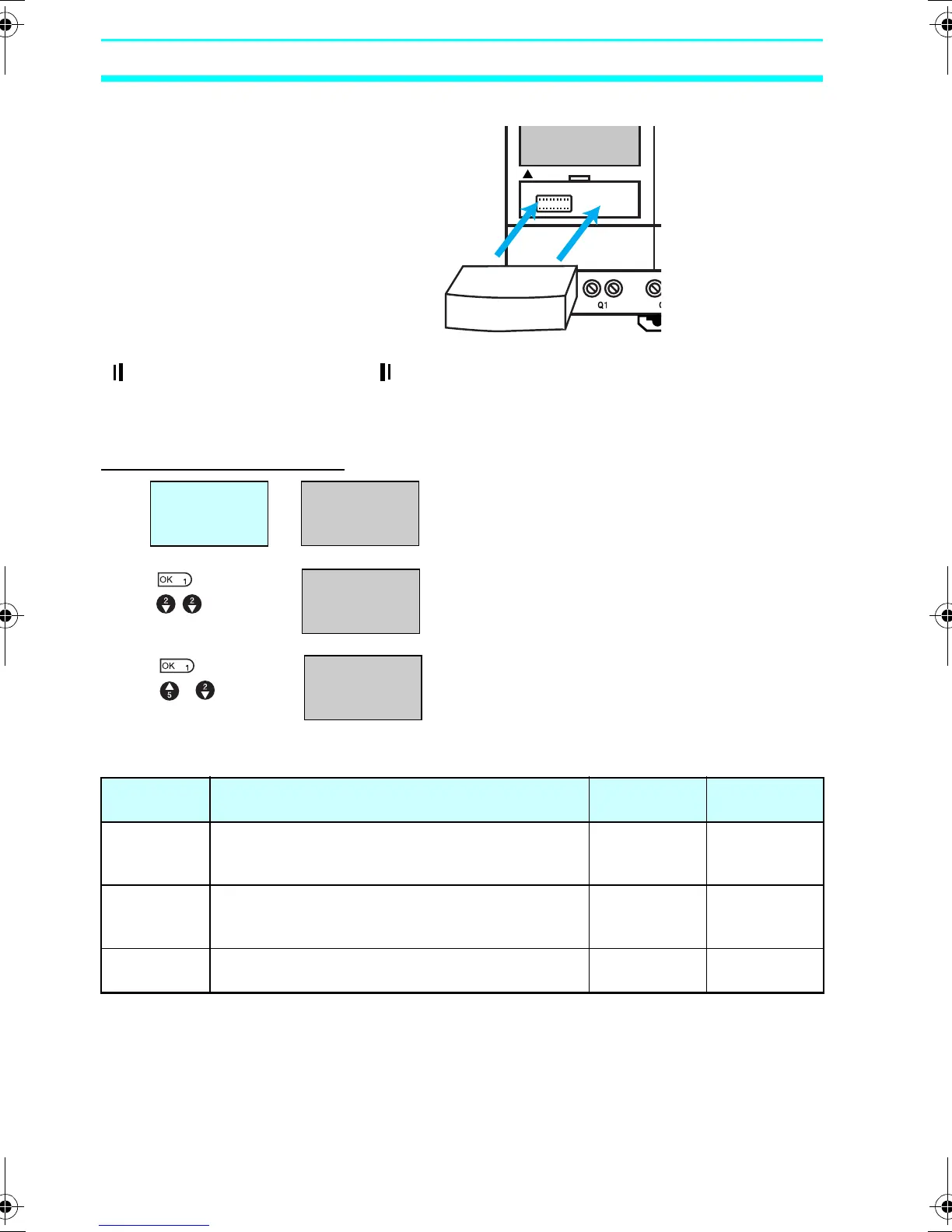

2. Mount the Memory Cassette.
Precautions for Correct Use
Always turn OFF the power supply to the CPU Unit before removing
or mounting Memory Cassettes.
Transferring Programs
Select Cassette.
The Operation Menu for Memory Cassettes
will be displayed.
Use the Up/Down Buttons to move the
flashing cursor and press the OK Button to
select an operation.
Note 1. The transferable program includes the ladder programs,
parameters, and all settings data. The present values for the
timers, holding timers, counters, and holding bits cannot be
transferred.
ZEN-ME01
Memory Cassette
PROGRAM
RUN
PARAMETER
SET CLOCK
▼
Select
Program in
STOP mode.
EDIT PROG
DELETE PROG
CASSETE
SAVE(CPU~MC)
LOAD(MC~CPU)
ERASE
/
Menu Operation LCD-type
CPU Units
LED-type
CPU Units
Save (CPU
Unit to MC)
Saves CPU Unit programs to the Memory
Cassette. Existing programs on the Memory
Cassette will be overwritten.
Supported Not supported
Load (MC to
CPU Unit)
Transfers programs from the Memory Cassette to
the CPU Unit.
Supported Automatically
transferred at
power-ON.
Erase Initializes the Memory Cassette (i.e. deletes
programs).
Supported Not supported
Z211-E1-03.book Page 112 Friday, November 21, 2008 10:38 AM
